Запчасти Case IH MAGNUM 190 (05.100.02) - INITIAL STOCKING LIST "B" (ISL) (05) - SERVICE & MAINTENANCE

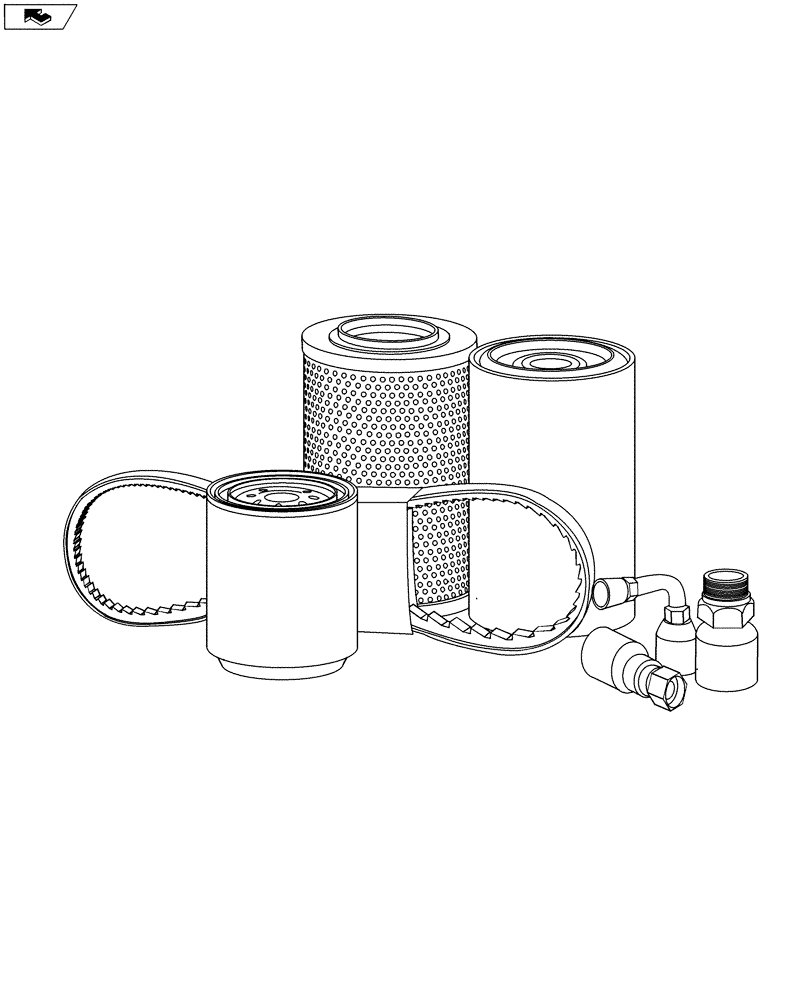

Схема запчастей Case IH MAGNUM 190 - (05.100.02) - INITIAL STOCKING LIST "B" (ISL) (05) - SERVICE & MAINTENANCE
home

Артикул

Название

Примечание

Количество

1

47125870

TRAVEL LIMITER

HITCH LOWER LINK - RH

1шт.

2

47125871

TRAVEL LIMITER

HITCH LOWER LINK - LH

1шт.

3

BCMD5W

WET BATTERY,Group D5, 1400 CCA, 380 RC

SHIP DIRECT ONLY

1шт.

4

84201664

BRAKE DISC,60mm ID x 327mm OD x 9.5mm Thk

1шт.

5

139719A1

CIRCUIT BREAKER,15 Amp, Mini

1шт.

6

87365799

BULB

Headlight HB5

2шт.

7

A170241

RADIATOR CAP

1шт.

8

84602136

CAP

LOCKING NON VENTED

1шт.

9

2854606

FUEL TUBE,Connector Assembly

FUEL PIPE

1шт.

10

87661279

SENSOR

Draft Pin

1шт.

11

82033220

DUST CAP

1шт.

12

87433010

BREATHER

Fuel Tank Vent

1шт.

13

293615A1

FILTER

Recirculation Air

1шт.

14

2855135

FUEL SYSTEM INJECTOR

1шт.

15

10395890

FUSE,5A, Mini, Beige

5 AMP

1шт.

16

87422637

FUSE,125A, Midival

125 AMP

1шт.

17

87522597

FUSE,10A, Mini, Red

10 AMP

1шт.

18

10401190

FUSE,20A, Mini, Yellow

20 AMP

1шт.

19

10401290

FUSE,25 amp Mini

25 AMP

1шт.

20

10402190

FUSE,30A, Mini

30 AMP

1шт.

21

87524877

FUSE,15A, Mini, Blue

15 AMP

1шт.

22

2853800

MANIFOLD GASKET,1.4mm Thk

Exhaust

1шт.

23

4897861

OIL PAN GASKET SET,17.3mm Thk

OIL PAN

1шт.

24

87742184

RADIATOR HOSE,44.50 mm ID, 56.00 mm ID x 122.50 mm, SAE 20R4 Class D1

Coolant

1шт.

25

84215498

RADIATOR HOSE

Outlet

1шт.

26

1964831C2

IGNITION KEY

1шт.

27

5199826

SEAL KIT

STEERING CYLINDER - CL4

1шт.

28

87455641

SEAL KIT

STEERING CYLINDER - MFD 10B

1шт.

29

87532092

SEAL KIT

CYLINDER - 3 POINT LIFT

1шт.

30

47436943

SEAL KIT

CL4.75

1шт.

31

1331046C2

KNOB

Switch Panel

1шт.

32

84151331

STARTER MOTOR,12V, 4.2kW

1шт.

33

87483158

NECK FILLER

UREA TANK

1шт.

34

253212A1

NUT,M20 x 1.5, Class 10

M20-1.5 HX x FLG CL 10 ZND

10шт.

35

392530

NUT,M16, Cl 10

1шт.

36

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

87421145

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

38

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

39

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

40

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

41

14606470

LOCK PIN,Slotted Spring, M8 x 20.00mm

LOWER LINKS

1шт.

42

87332334

PLATE

HITCH LOWER LINK

1шт.

43

87332342

PLATE

Sway Block

1шт.

44

87332350

PLATE

Sway Block

1шт.

45

9672438

PLUG,7/16" - 20 ORB

1шт.

46

326281A1

POTENTIOMETER,10,000 Ohm

BLOWER CONTROL

1шт.

47

326282A1

POTENTIOMETER,10,000 Ohm

CAB TEMP. CONTROL�

1шт.

48

84465662

SENSOR

TRUE GROUND�

1шт.

49

93199C1

FASTENER

Ratchet

5шт.

50

87414866

RELAY,12V, 20A

20A MICRO�

10шт.

51

84186232

RING

FILLER NECK UREA TANK

1шт.

52

84575645

OIL SEAL,130mm ID x 155mm OD x 16mm Thk

1шт.

53

5196706

BRAKE PAD,4.2mm Thk

CENTR.HAND BRAKE SECTOR

1шт.

54

5196712

BRAKE PAD,3.1mm Thk

HAND BRAKE SECTOR

1шт.

55

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

ROTARY POSITION

1шт.

56

87472229

CARTRIDGE

Control

1шт.

57

87739558

SOLENOID VALVE,14W

3шт.

57

87739558R

REMAN-SOLENOID

3шт.

57

87739558C

CORE-SOLENOID

Return Number

3шт.

58

87000227

SWITCH, A/C HIGH PRE

1шт.

59

87444610

SWITCH

DEFOG

1шт.

60

87454558

SWITCH

AUTO/MANUAL CLIMATE CONTROL

1шт.

61

84229069

SWITCH

Bottom Of Clutch

1шт.

62

177250A1

LIGHT SWITCH

4 POS ROTORY EUR

1шт.

63

87395493

PRESSURE SWITCH

Pressure

1шт.

64

84322388

THERMOSTAT

Engine

1шт.

65

87355020

PIN

1шт.

66

87712866

PLATE

Wear, Sway Block

1шт.

67

87417654

WIPER BLADE

RH WINDOW�

1шт.

68

87673380

WIPER BLADE

1шт.

69

84479353

FLANGE

1шт.

70

R32551

FLUID

2.5 GALLON

1шт.

71

R32552

FLUID

55 GALLON

1шт.

72

R32553

FLUID

275 GALLON

1шт.

73

R32554

FLUID

330 GALLON

1шт.

Выбрано товаров: 75
