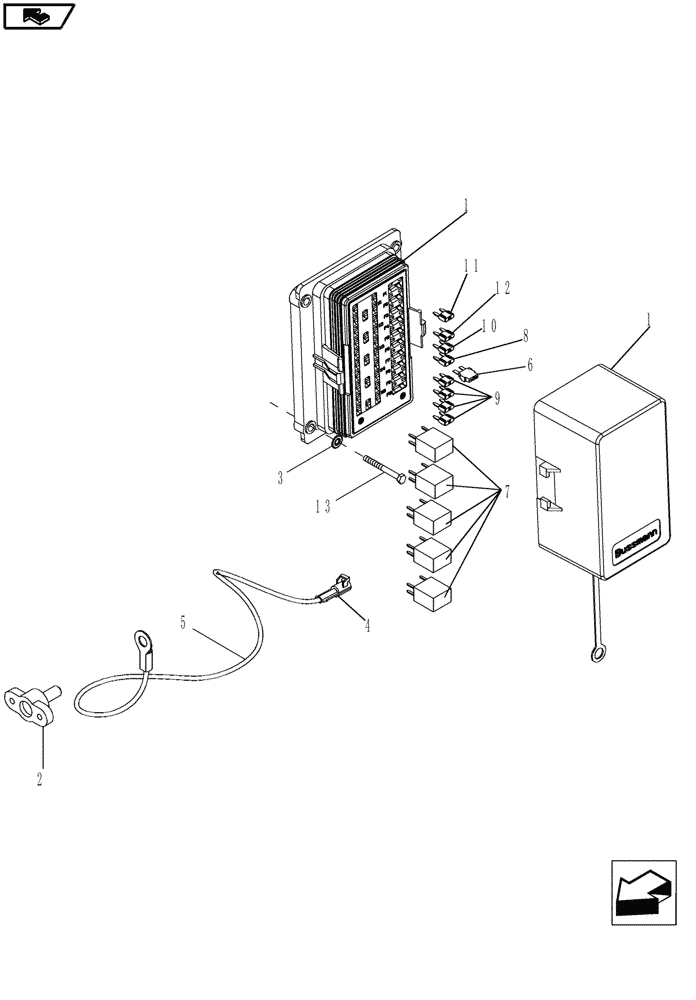

Запчасти Case IH MAGNUM 190 (55.100.40) - POWER DISTRIBUTION (55) - ELECTRICAL SYSTEMS

1

87312843

FUSE BOX

1шт.

2

441483A1

TERMINAL CONNECTOR

1шт.

3

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

4

182064A1

CONNECTOR, ELEC

CONNECTOR Engine Harness

1шт.

5

87546828

HARNESS

Tractor Auxiliary Power, Inc. 4

1шт.

6

416569A1

DIODE ELEMENT,7300W

1шт.

7

416570A1

RELAY

5шт.

8

87522597

FUSE,10A, Mini, Red

10 Amp, Mini

1шт.

9

87524877

FUSE,15A, Mini, Blue

15 Amp, Mini

1шт.

10

10401190

FUSE,20A, Mini, Yellow

20 Amp, Mini

1шт.

11

121415A1

FUSE,25A, Mini, Clear

1шт.

12

121416A1

FUSE,30A, Mini, Green

1шт.

13

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

4шт.

14

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

2шт.
