(55.100.32) - IMPLEMENT CONNECTORS & MOUNTING

Запчасти Case IH MAGNUM 190 (55.100.32) - IMPLEMENT CONNECTORS & MOUNTING (55) - ELECTRICAL SYSTEMS

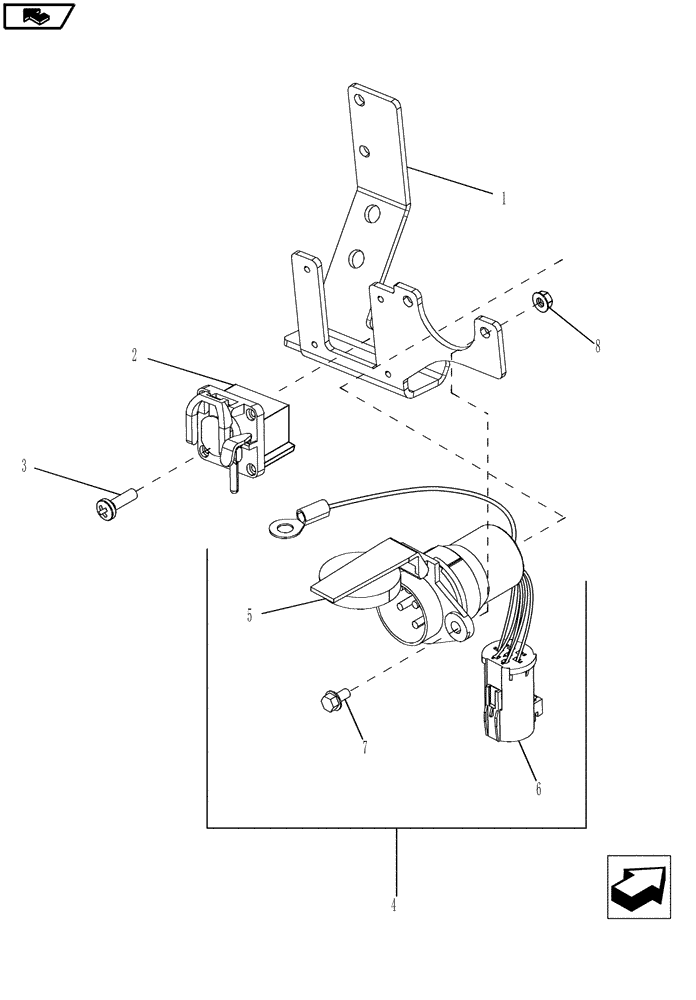

Схема запчастей Case IH MAGNUM 190 - (55.100.32) - IMPLEMENT CONNECTORS & MOUNTING (55) - ELECTRICAL SYSTEMS
7
home
1
3
2
5
6
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84161587

BRACKET

1шт.

2

87522416

ELEC CONNECTOR,Female, 5 Cavities

ISO Bus Breakaway

1шт.

3

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

4

84164355

HARNESS

7-Pin Adapter, Inc. 5, 6

1шт.

5

121645C1

MULTIPOLE CONNECTOR,7 Pin

1шт.

6

182087A1

CONNECTOR, ELEC

CONNECTOR Auxiliary/PTO Harness

1шт.

7

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.
