(55.100.18[01]) - HARNESS, ARMREST - WITH MOTOR

Запчасти Case IH MAGNUM 190 (55.100.18[01]) - HARNESS, ARMREST - WITH MOTOR (55) - ELECTRICAL SYSTEMS

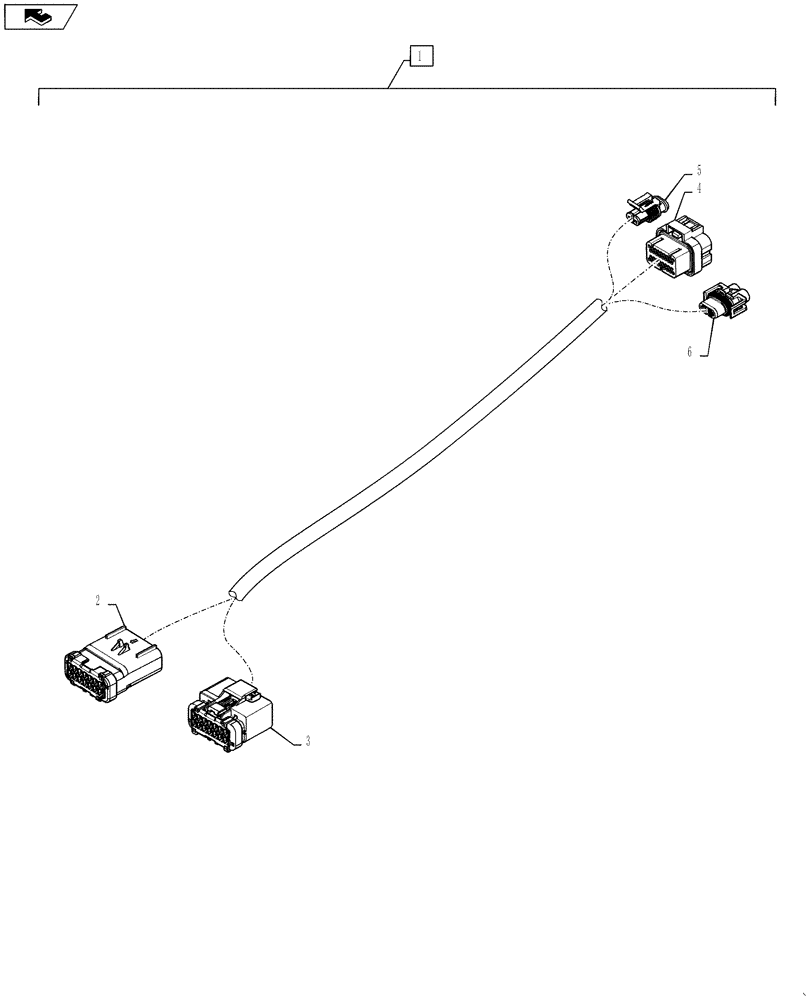

Схема запчастей Case IH MAGNUM 190 - (55.100.18[01]) - HARNESS, ARMREST - WITH MOTOR (55) - ELECTRICAL SYSTEMS
3
2
5
4
home
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84368485

HARNESS

Armrest, with Motor; Incl 2 - 6

1шт.

2

87382929

WIRE CONNECTOR,Male, 14 Cavities

14 Pin, 280F, To Cab Harness

1шт.

3

87382926

WIRE CONNECTOR,Female, 14 Cavities

14 Pin, 281F, To Cab Harness

1шт.

4

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

34 Pin, 137M, To Armrest Console

1шт.

5

82012083

WIRE CONNECTOR,Female

2 Pin, 284F, To Motor

1шт.

6

82002274

MULTIPOLE CONNECTOR,Female, 6 Pole

4 Pin, 283F, To Switch

1шт.
