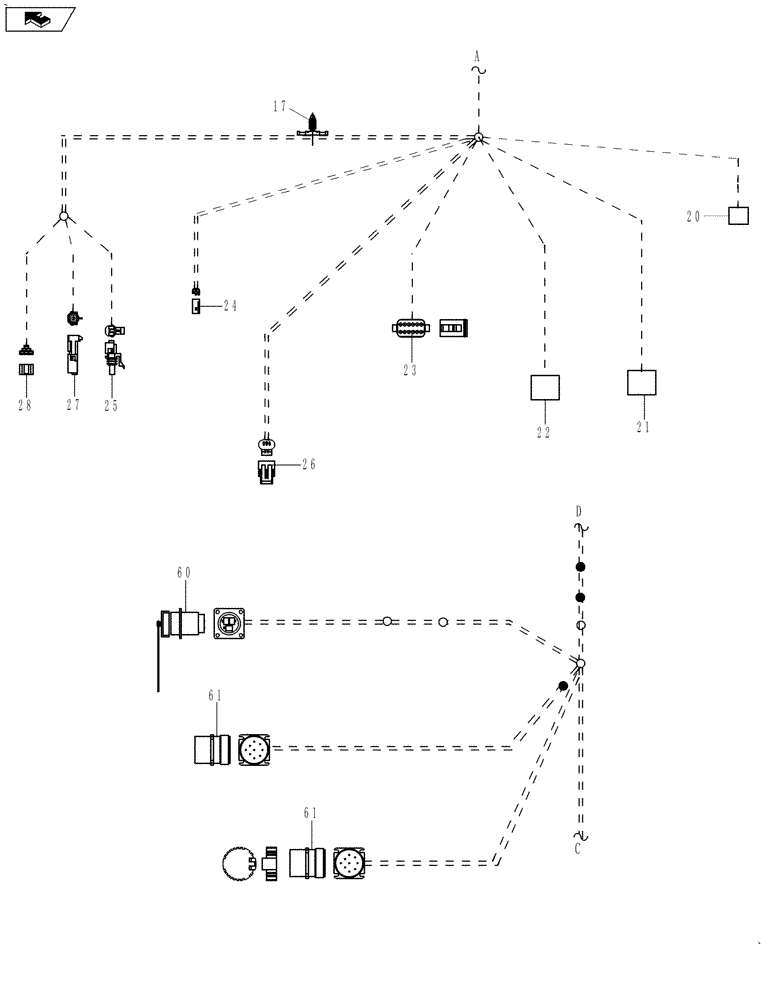

Запчасти Case IH MAGNUM 190 (55.100.17[04]) - HARNESS, CAB (55) - ELECTRICAL SYSTEMS

84332917

HARNESS

Cab, Continued, Inc. 17, 20 -28, 60, 61

1шт.

17

369917A1

CLIP

1шт.

20

87696547

ELEC CONNECTOR,Female, 2 Cavities

Autoguidance Sensor, 1122F, 2 Pin

1шт.

21

87700107

ELEC CONNECTOR

FNRP, 54M, 6 Pin

1шт.

22

87700332

ELEC CONNECTOR

FNRP, 51M, 8 Pin

1шт.

23

225389C1

CONNECTOR, ELEC

Turn Signal Switch, 9M, 12 Pin

1шт.

24

227429A1

CONNECTOR, ELEC

Clutch Switch, 50M, 2 Pin

1шт.

25

245480C1

ELEC CONNECTOR,1 Pin

110M

1шт.

26

198550A1

CONNECTOR, ELEC

Master Clutch Pedal Pod, 52M, 3 Pin

1шт.

27

245481C1

CONNECTION,ELECTRIC

110F

1шт.

28

475083C1

CONNECTOR, ELEC

Rotary Worklight Switch, 12F, 6 Pin

1шт.

60

225164C1

ELEC CONNECTOR

Auxillary Power Connection, 269F, 3 Pin

1шт.

61

310057A1

ELEC CONNECTOR,Male, 9 Pin

Can Tractor Diagnostics, 174M, 9 Pin, Can Second Diagnostics, 443M, 9 Pin

2шт.
