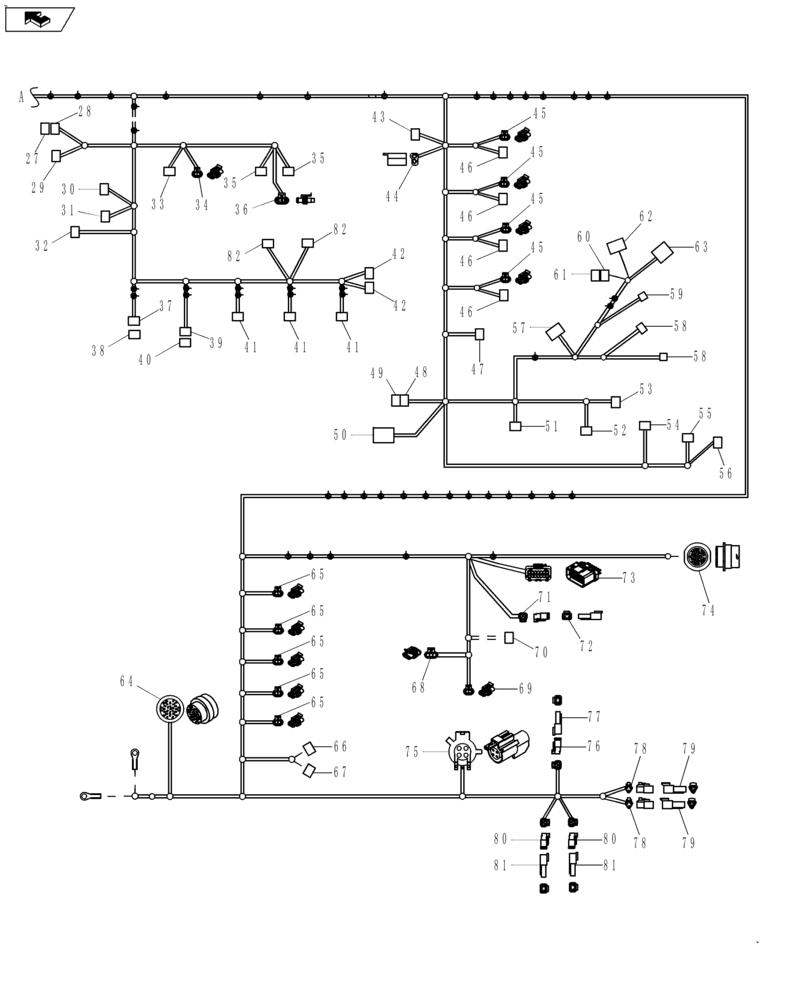

Запчасти Case IH MAGNUM 190 (55.100.02[02]) - HARNESS, CHASSIS, WITH POWERSHIFT TRANSMISSION (55) - ELECTRICAL SYSTEMS

84372470

HARNESS

Continued, Incl 27 - 82, Serial Range: -ZCRH01025

1шт.

84481524

HARNESS

Continued, Incl 27 - 82, Start Serial: ZCRH01026

1шт.

27

87695582

ELEC CONNECTOR,Female, 2 Pole

Cavity Plug

1шт.

28

87695584

CONTACT HOUSING,Male, 2 Cavities

Backup Alarm, 701, 2 Pin

1шт.

29

87698223

MULTIPOLE CONNECTOR,Male, 7 Pole

Trailer Socket, 253, 7 Pin

1шт.

30

NSS

NOT SOLD SEPARAT

Rear PTO Solenoid, 276, 2 Pin

1шт.

31

371614A1

ELEC CONNECTOR,Female, 2 Pin

Differential Lock Solenoid, 278, 2 Pin

1шт.

32

82865818

ELEC CONNECTOR

Left Hand Draft Pin, 266, 3 Pin

1шт.

33

82865818

ELEC CONNECTOR

PTO Twist sensor, 262, 3 Pin

1шт.

34

371614A1

ELEC CONNECTOR,Female, 2 Pin

19th Dump Solenoid, 263, 2 Pin

1шт.

35

371614A1

ELEC CONNECTOR,Female, 2 Pin

PTO Brake, 277, 2 Pin, 2nd Solenoid, 279, 2 Pin

2шт.

36

87691304

WIRE CONNECTOR,Female

Rockshaft Pot, 267, 3 Pin

1шт.

37

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

EHR 5, 309, 4 Pin

1шт.

38

225326C1

ELEC CONNECTOR,Male, 4 Pin

Cavity Plug

1шт.

39

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

EHR 4, 308, 4 Pin

1шт.

40

225326C1

ELEC CONNECTOR,Male, 4 Pin

Cavity Plug

1шт.

41

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

EHR 1, 2, 3, 305, 306, 307, 4 Pin

3шт.

42

82865818

ELEC CONNECTOR

RH Draft Pin, 256, 3 Pin, PTO Speed Sensor, 251, 3 Pin

2шт.

43

82865818

ELEC CONNECTOR

Axle Speed Sensor, 257, 3 Pin

1шт.

44

872290R1

ELEC CONNECTOR,Male

Cab Blower, 90F, 2 Pin

1шт.

45

371614A1

ELEC CONNECTOR,Female, 2 Pin

LOW, MED, HIGH, REV Solenoids, 641, 642, 643, 644, 2 Pin

4шт.

46

87309480

ELEC CONNECTOR

LOW, MED, HIGH, REV Range Pressure Switches, 646, 647, 648, 649, 2 Pin

4шт.

47

NSS

NOT SOLD SEPARAT

19th Gear Solenoid, 264, 2 Pin

1шт.

48

82026544

ELEC CONNECTOR

Creeper, 633, 5 Pin

1шт.

49

87691924

ELEC CONNECTOR

Cavity Plug

1шт.

50

NSS

NOT SOLD SEPARAT

Creeper Solenoid

1шт.

51

82865818

ELEC CONNECTOR

Mid Speed Sensor, 653, 3 Pin

1шт.

52

87309480

ELEC CONNECTOR

Transmission Oil Temperature Sensor, 290, 2 Pin

1шт.

53

NSS

NOT SOLD SEPARAT

Transmission Pressure Sensor, 1158M, 3 Pin

1шт.

54

NSS

NOT SOLD SEPARAT

HPL Vacuum Switch, 474, 2 pin

1шт.

55

371614A1

ELEC CONNECTOR,Female, 2 Pin

Transmission Oil Temperature Sender, 472, 2 Pin

1шт.

56

87687239

CONTACT HOUSING,Female, 1 Pole

Low Hydraulic Charge Switch, 473, 2 Pin

1шт.

57

87694154

CONTACT HOUSING,Male, 4 Pole

Bus Termination, 920, 4 Pin

1шт.

58

87709793

WIRE CONNECTOR,Female, 2 Cavities

Upstream Temperature Sensor, 1020M, 2 Pin, Dosing Sensor, 1053M, 2 Pin

2шт.

59

84254837

WIRE CONNECTOR

12-24 Volt Converter

1шт.

60

225294C1

ELEC CONNECTOR,Male, 3 Pin

Terminator SCR, 1016F, 3 Pin

1шт.

61

381414A1

TERMINAL CONNECTOR

Cavity Plug

1шт.

62

NSS

NOT SOLD SEPARAT

Nox Sensor, 1022F, 5 Pin

1шт.

63

87709793

WIRE CONNECTOR,Female, 2 Cavities

Downstream Temperature Sensor, 1021M, 2 Pin

1шт.

64

NSS

NOT SOLD SEPARAT

To Cab Harness, 60F, 31 Pin

1шт.

65

371614A1

ELEC CONNECTOR,Female, 2 Pin

Clutch Solenoids A, B, C, D, E, 635, 636, 637, 638, 639, 2 Pin

5шт.

66

87581782

ELEC CONNECTOR,Female

Steering, 702, 1 Pin

1шт.

67

87581782

ELEC CONNECTOR,Female

Steering, 703, 1 Pin

1шт.

68

84062580

CONNECTOR, ELEC

CONNECTOR Tank Sensor, 1017M, 3 Pin

1шт.

69

371614A1

ELEC CONNECTOR,Female, 2 Pin

Fuel Tank Sender, 265, 2 Pin

1шт.

70

NSS

NOT SOLD SEPARAT

Denox Module, 1018, 30 Pin

1шт.

71

225316C1

ELEC CONNECTOR,Female, 2 Pin

Autoguidance Lockout Solenoid, 2 Pin

1шт.

72

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cavity Plug

1шт.

73

87382926

WIRE CONNECTOR,Female, 14 Cavities

FPS Chassis to Fuse, 2016M, 14 Pin

1шт.

74

NSS

NOT SOLD SEPARAT

FPS Chassis to Engine, 2015M, 28 Pin

1шт.

75

82918487

ELEC CONNECTOR,Female

Radar, 2014M, 4 Pin

1шт.

76

225316C1

ELEC CONNECTOR,Female, 2 Pin

Front Suspension Raise Solenoid, 488M, 2 Pin

1шт.

77

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cavity Plug

1шт.

78

225295C1

ELEC CONNECTOR,Female, 3 Pin

Front Rod Sensor, 704, 3 Pin, Piston Pressure Sensor, 705, 3 Pin

2шт.

79

225294C1

ELEC CONNECTOR,Male, 3 Pin

Cavity Plug

2шт.

80

225316C1

ELEC CONNECTOR,Female, 2 Pin

Front Suspension Upper Lockout Solenoid, 486M, 2 Pin, Front Suspension Lower Solenoid, 487M, 2 Pin

2шт.

81

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cavity Plug

2шт.

82

87695582

ELEC CONNECTOR,Female, 2 Pole

EDC Valve Lower, 269, 2 Pin, EDC Valve Raise, 268, 2 Pin

2шт.
