Запчасти Case IH MAGNUM 190 (44.520.01) - SOLID STEEL REAR WHEELS (44) - WHEELS

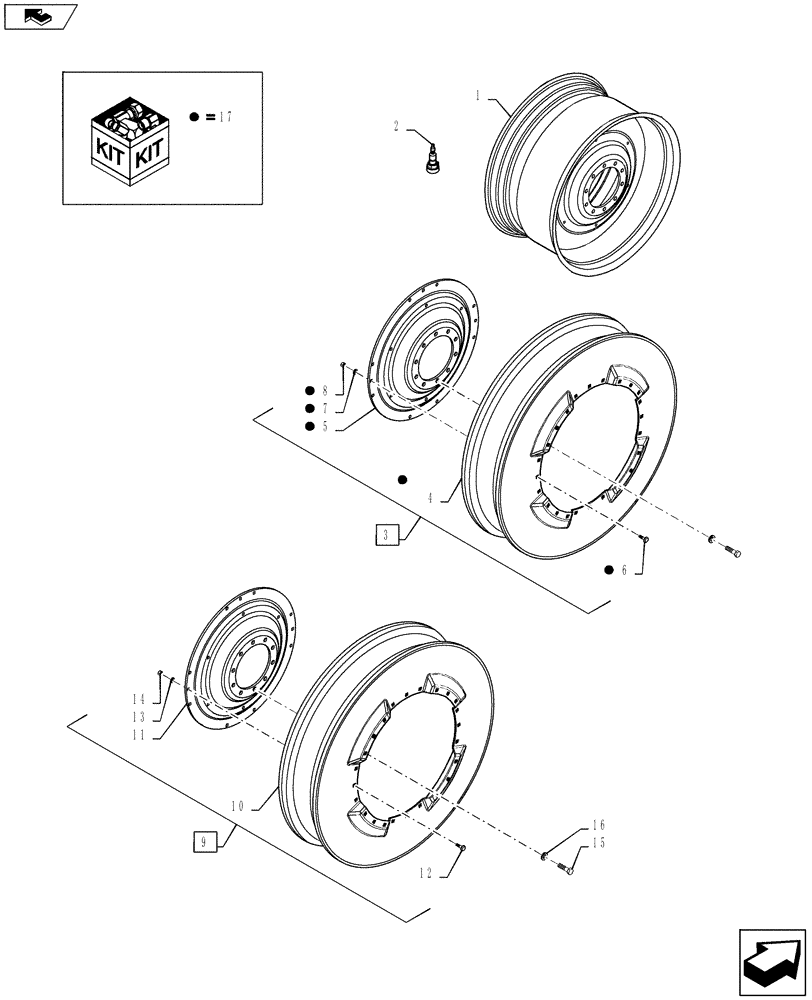

Схема запчастей Case IH MAGNUM 190 - (44.520.01) - SOLID STEEL REAR WHEELS (44) - WHEELS
home
14
5
12
17
17
4
17
17
1
17
10
11
8
2
9
17
17
6
3
13
15
7
16

Артикул

Название

Примечание

Количество

1

193300A2

RIM

WH23Ax38, Serial Range: -`0

2шт.

For Tires 710/70R38

1шт.

1

221362A1

WHEEL

WH16Ax42 (Dual Wheels), Serial Range: -`0

4шт.

For Tires 480/80R42

1шт.

1

193857A1

WHEEL

WH18Ax42, Serial Range: -`0

2шт.

For Tires 20.8R42, 520/85R42

1шт.

1

193857A1

WHEEL

WH18Ax42 (Dual Wheels), Serial Range: -`0

4шт.

For Tires 20.8R42, 520/85R42

1шт.

1

276687A1

WHEEL

MW20Ax42, Serial Range: -`0

2шт.

For Tires 620/70R42

1шт.

1

276687A1

WHEEL

MW20Ax42 (Dual Wheels), Serial Range: -`0

4шт.

For Tires 620/70R42

1шт.

1

196254A1

WHEEL

W13x46 (Dual Wheels), Serial Range: -`0

4шт.

For Tires 380/90R46, 420/80R46

1шт.

1

396113A1

RIM

W16Ax46, Serial Range: -`0

2шт.

For Tires 18.4R46, 480/80R46

1шт.

1

396113A1

RIM

W16Ax46 (Dual Wheels), Serial Range: -`0

4шт.

For Tires 18.4R46, 480/80R46

1шт.

1

396114A1

RIM

DW15Lx50, Serial Range: -`0

2шт.

For Tires 480/80R50

1шт.

2

A20058

VALVE STEM

2шт.

2

27549R1

VALVE STEM

2шт.

3

283939A2

WHEEL ASSY.

W10Ax54, Inc. 4 - 8, Serial Range: -`0

2шт.

For Tires 320/90R54

1шт.

3

283939A2

WHEEL ASSY.

W10Ax54 (Dual Wheels) Inc. 4 - 8, Serial Range: -`0

4шт.

For Tires 320/90R54

1шт.

4

310835A2

RIM

1шт.

5

310836A1

DISC

1шт.

6

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

12шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

8

829-1416

NUT,M16, Cl 10

12шт.

9

395747A1

WHEEL ASSY.

DW12x50 (Dual Wheels) Inc. 10 - 14, Serial Range: -`0

4шт.

For Tires 380/90R50

1шт.

10

395748A1

RIM

1шт.

11

310836A1

DISC

1шт.

12

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

12шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

14

829-1416

NUT,M16, Cl 10

12шт.

15

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

20шт.

16

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

17

719696016

DIA KIT, TRACTOR

Wheel Assembly, W10Ax54, (Qty 2), Inc. 4 - 8

1шт.

Выбрано товаров: 41
