Запчасти Case IH MAGNUM 190 (41.200.08) - VALVE ASSEMBLY, AUTOGUIDANCE WITH POWERSHIFT TRANSMISSION (41) - STEERING

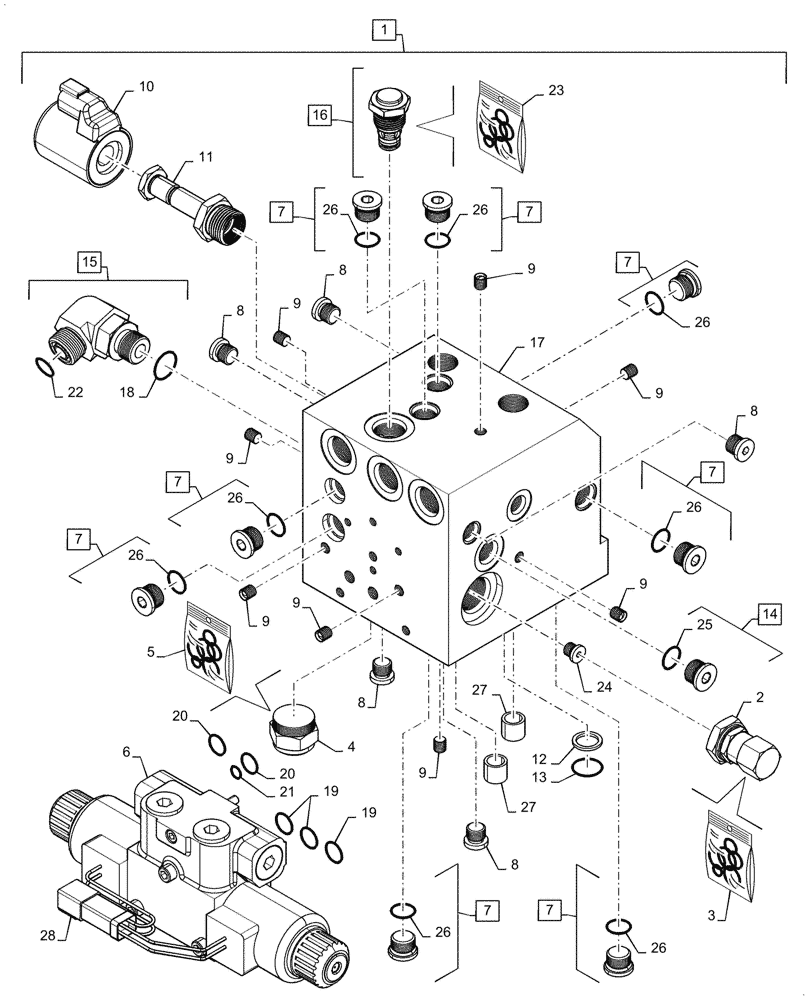

Схема запчастей Case IH MAGNUM 190 - (41.200.08) - VALVE ASSEMBLY, AUTOGUIDANCE WITH POWERSHIFT TRANSMISSION (41) - STEERING
7
1
20
8
25
7
7
8
17
16
9
3
7
12
9
4
11
7
6
7
26
26
15
23
27
9
9
27
8
24
20
8
8
2
19
7
9
7
9
13
21
26
9
18
26
19
9
14
10
28
22
26
26
26
5
26

Артикул

Название

Примечание

Количество

1

84200777

HYDRAULIC VALVE

Autoguidance, Incl 2 - 28

1шт.

1

84200777R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210 All TIER 4 - ZARH06086 AND AFTER

1шт.

1

84200777C

CORE-VALVE HYD

Return Number

1шт.

2

84259232

VALVE PRESSURE RELIE

1шт.

3

86508168

SEAL KIT

Consists of 2 O-Rings and 1 Backup Washer

1шт.

4

84259233

VALVE, PRESSURE CONT

1шт.

5

S301087

SEAL KIT

1шт.

6

84259235

SOLENOID VALVE

DMV

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl 26

7шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

5шт.

9

87475078

EXPANSION PLUG

8шт.

10

87623908

COIL ASSY.

1шт.

11

84264248

SOLENOID VALVE

1шт.

12

84264250

BACK-UP RING

To Steering Valve; Ports R, L, T, P

4шт.

13

86629585

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

To Steering Valve; Ports R, L, T, P

4шт.

14

86598044

PLUG,Hex, M14 x 1.5 ORB

Incl 25

1шт.

15

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 18, 22

1шт.

16

84259236

CHECK VALVE

Incl 23

1шт.

17

NSS

NOT SOLD SEPARAT

MANIFOLD, Valve Body, Incl in 1

1шт.

18

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Solenoid Valve to Valve Body

3шт.

20

49886

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

Solenoid Valve to Valve Body

2шт.

21

511836

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

Solenoid Valve to Valve Body

1шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

304418A1

SEAL KIT

1шт.

24

87475077

ORIFICE

1шт.

25

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

27

NSS

NOT SOLD SEPARAT

DOWEL RING, Incl in1

2шт.

28

87694154

CONTACT HOUSING,Male, 4 Pole

1шт.

Выбрано товаров: 30
