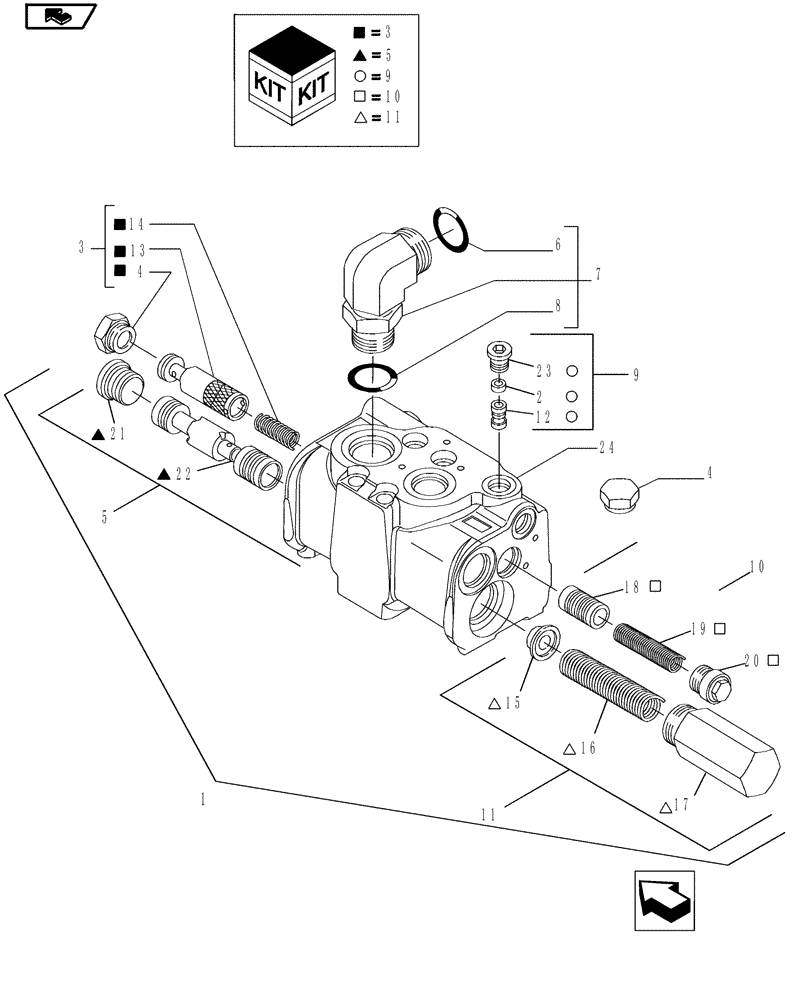

Запчасти Case IH MAGNUM 190 (41.200.07) - PRIORITY VALVE ASSEMBLY - POWERSHIFT TRANSMISSION (41) - STEERING

1

87555077

HYDRAULIC VALVE

Priority, Inc. 2 - 24

1шт.

2

87588850

RING NUT

SPRING

1шт.

3

87639736

KIT

Spool Pressure Compensator, inc. 4, 13, 14

1шт.

4

87586701

PLUG

2шт.

5

87639735

KIT

Spool Pressure Reducer, Inc. 21, 22

1шт.

6

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

7

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

Inc. 6, 8

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

87639734

KIT

Shuttle Valve, Inc. 2, 12, 23

1шт.

10

87639720

KIT

VMD/VPRP, Inc. 18 - 20

1шт.

11

87639721

KIT

Pressure reducer, Inc. 15 - 17

1шт.

12

87588855

VALVE POPPET

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING

1шт.

17

NSS

NOT SOLD SEPARAT

CAP

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

23

87545765

PLUG

1шт.

24

NSS

NOT SOLD SEPARAT

BODY

1шт.
