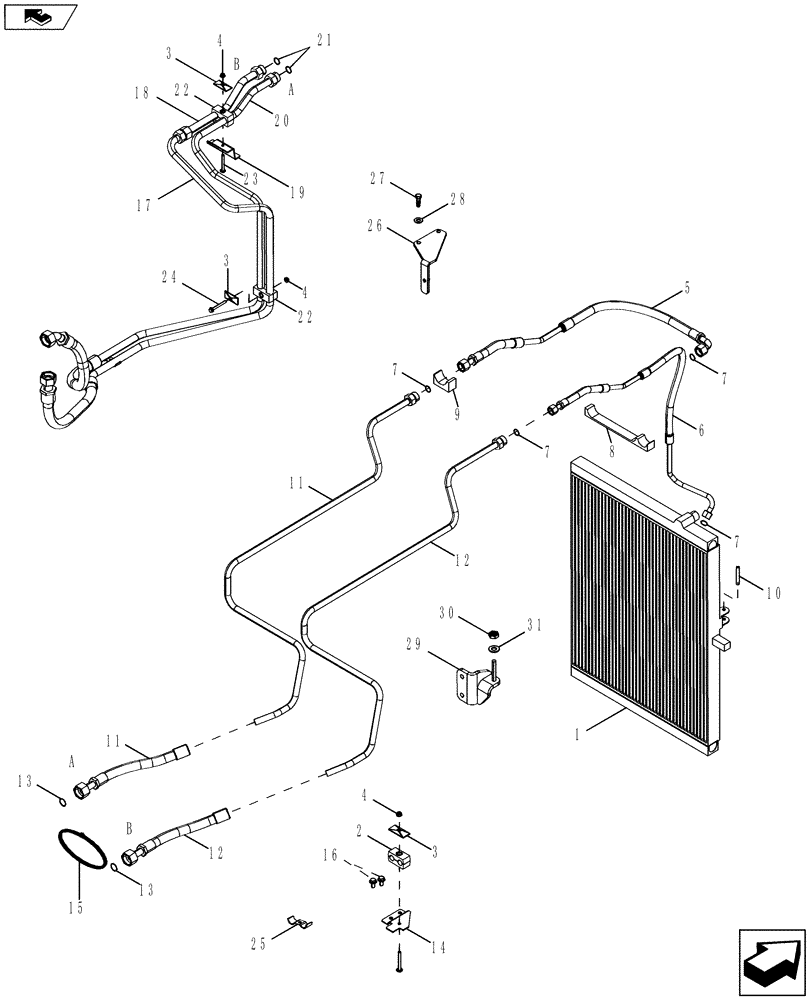

Запчасти Case IH MAGNUM 190 (35.300.02) - HYDRAULIC SYSTEM, OIL COOLER WITH CVT (35) - HYDRAULIC SYSTEMS

1

84230098

OIL COOLER

1шт.

2

118576A1

CLAMP

2шт.

3

1347127C1

PLATE

Current Cooler Build

4шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Current Cooler Build

3шт.

5

87358481

HOSE ASSY.

1шт.

6

84286634

HOSE

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

8

87456457

INSULATOR,50mm W x 452mm L x 45mm Thk

1шт.

9

87456576

INSULATOR,45mm W x 81mm L x 40mm Thk

1шт.

10

86017630

HITCH PIN,9.53mm OD x 50.55mm L

Detent Ring

1шт.

11

84179198

HYDRAULIC HOSE

Supply

1шт.

12

84179193

HYDRAULIC HOSE

Return

1шт.

13

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

14

87471828

BRACKET

1шт.

15

291207C1

CLAMP

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

17

84266208

HYD TUBE,1" OD

Return, Current Cooler Build

1шт.

18

84253369

HYD TUBE,25 mm OD x 412, 59.46 mm L

Extension, Current Cooler Build

1шт.

19

84172840

BRACKET

Current Cooler Build

1шт.

20

84266210

HYD TUBE,1" OD

Supply, Current Cooler Build

1шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Current Cooler Build

3шт.

22

87000152

CLAMP,25.4mm D Clamping Pipes x 2

Current Cooler Build

2шт.

23

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Current Cooler Build

1шт.

24

86981705

BOLT,Hex, M8 x 70mm, Cl 8.8

Current Cooler Build

1шт.

25

84266211

BRACKET

1шт.

26

84267915

BRACKET

If used

1шт.

27

86637974

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

If used

1шт.

28

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

If Used

1шт.

29

84240620

BRACKET

1шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
