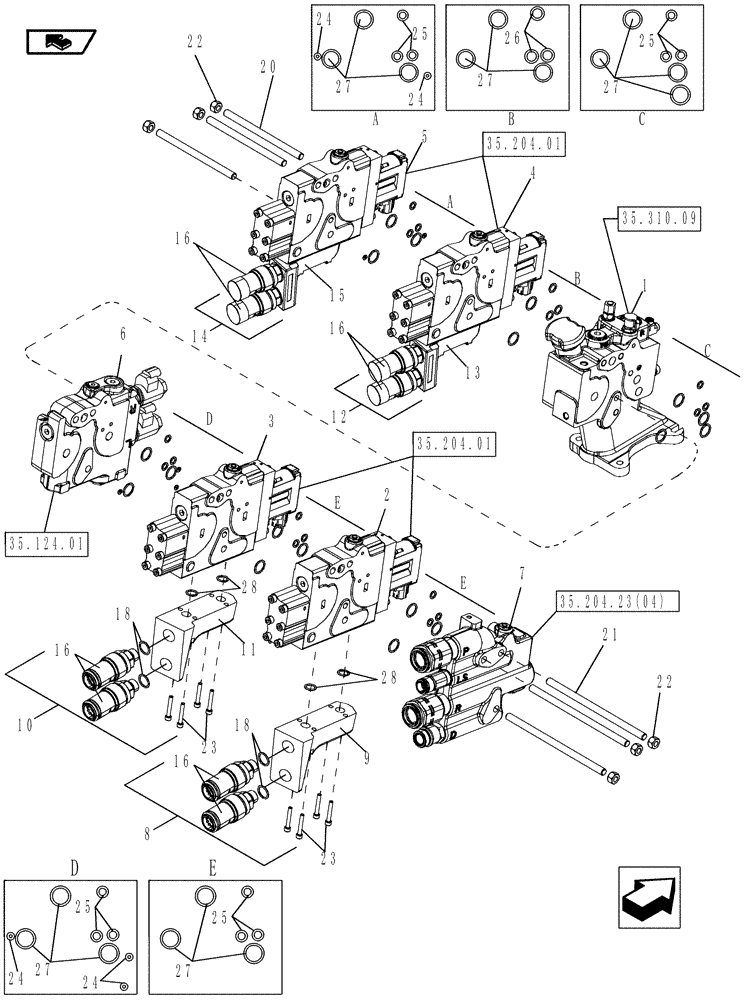

Запчасти Case IH MAGNUM 190 (35.204.24) - REMOTE HYDRAULIC VALVE 4 STACK - BSN ZCRH01492 (35) - HYDRAULIC SYSTEMS

1

87555868

MANIFOLD VALVE

Inlet/Outlet

1шт.

2

87330385

HYD VALVE SECTION

Right, without Power Beyond

1шт.

2

87330385R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190 TIER 4 (NA) - ZARH06086 AND AFTER, REMOTE HYDRAULIC VALVE 4 STACK - BSN ZCRH01492, MAGNUM 210 TIER 4 (NA) - ZARH06086 AND AFTER, MAGNUM 225

1шт.

2

87330385C

CORE-VALVE HYD

Return Number

1шт.

2

87325955

HYD VALVE SECTION

Main, with Power beyond

1шт.

2

47434171R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225, All with Power beyond, SMALL FRAME TRACTOR TIER 4 (NA) - ZARH06086 AND AFTER, BSN ZCRH01492, Reman for New PN 87325955

1шт.

2

47434171C

CORE-VALVE HYD

Return Number

1шт.

3

87325955

HYD VALVE SECTION

Main

1шт.

3

47434171R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225, All with Power beyond, SMALL FRAME TRACTOR TIER 4 (NA) - ZARH06086 AND AFTER, BSN ZCRH01492, Reman for New PN 87325955

1шт.

3

47434171C

CORE-VALVE HYD

Return Number

1шт.

4

87325955

HYD VALVE SECTION

Main

1шт.

4

87325955R

REMAN-HYD VALVE

MAGNUM 180,MAGNUM 190,MAGNUM 210,MAGNUM 225,All TIER 4 ZARH06086 AND AFTER,BSN ZCRH01492

1шт.

4

87325955C

CORE-VALVE HYD

Return Number

1шт.

5

87330318

HYD VALVE SECTION

Left

1шт.

5

87330318R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225 all TIER 4, ZARH06086 AND AFTER, REMOTE HYDRAULIC VALVE 4 STACK - BSN ZCRH01492

1шт.

5

87330318C

CORE-VALVE HYD

Return Number

1шт.

6

87331245

VALVE SECTION

Hitch

1шт.

6

87331245R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225, ALL TIER 4 ZARH06086 AND AFTER, REMOTE HYDRAULIC VALVE 4 STACK - BSN ZCRH01492

1шт.

6

87331245C

CORE-VALVE HYD

Return Number

1шт.

7

84158051

HYD VALVE SECTION

Power Beyond

1шт.

8

87381981

HYDRAULIC MANIFOLD

Inc. 9, 16

1шт.

9

5188821

1шт.

10

87381982

HYDRAULIC MANIFOLD

Inc. 11, 16

1шт.

11

5188825

1шт.

12

87381983

HYDRAULIC MANIFOLD

Inc. 13, 16

1шт.

13

5188829

1шт.

14

87596458

HYDRAULIC MANIFOLD

Inc. 15, 16

1шт.

15

87599844

MANIFOLD VALVE

1шт.

16

87381944

COUPLING, QUICK, FEM

2шт.

17

87382012

SEAL KIT

Inc. 18 - 19

1шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

19

NSS

NOT SOLD SEPARAT

BACKUP RING

1шт.

20

87604619

THREADED TIE-ROD,M12 x 1.75 x 135mm L

M12 x 1.75 Length 135 mm

3шт.

21

87604617

STUD,M12 x 1.75 x 235mm L

M12 x 1.75 Length 235 mm, With Power Beyond

3шт.

21

84268953

STUD,M12 x 1.75 x 205mm L

M12 x 1.75 Length 205 mm, Without Power Beyond

3шт.

22

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

23

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

16шт.

24

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

1шт.

25

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

1шт.

26

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

1шт.

27

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

1шт.

28

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

1шт.
