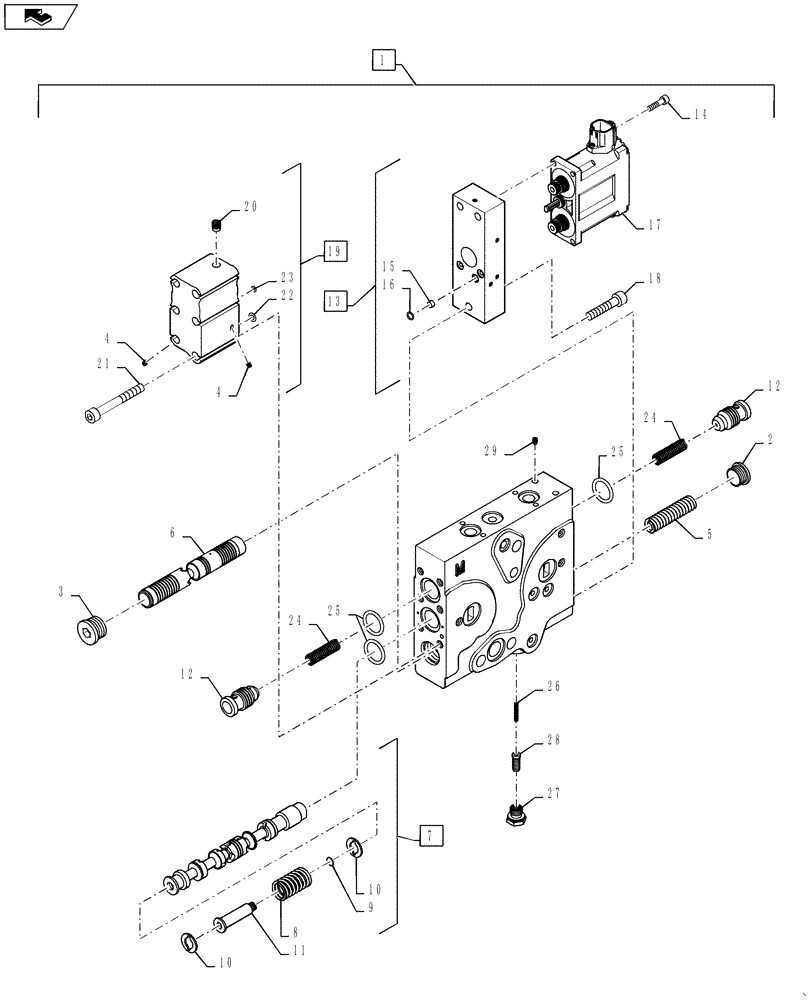

Запчасти Case IH MAGNUM 190 (35.204.01) - REMOTE HYDRAULIC CONTROL VALVE - ASN ZCRH01492 (35) - HYDRAULIC SYSTEMS

1

84536026

VALVE

Assy, Main; Incl. Refs. 2 - 29

1шт.

1

84536023

VALVE

Assy, Left; Incl. Refs. 2 - 29

1шт.

1

84536021

VALVE

Assy, Right; Incl. Refs. 2 - 29

1шт.

2

218-5210

PLUG,Hex, 3/4"-16 ORB

1шт.

3

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

4

282836A1

PLUG,4mm OD x 4mm L

Expansion 4mm

2шт.

5

436854A1

SPRING,15.11mm OD x 63.35mm L

Compression

1шт.

6

84297867

SPOOL

Pressure Compression

1шт.

7

84317306

SPOOL

Assy, Main; Incl. Refs. 8 - 11

1шт.

8

87437166

VALVE SPRING

Centering Outer

1шт.

9

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

10

87437168

WASHER,11.75mm ID x 21mm OD x 1.5mm Thk

Centering

2шт.

11

87437101

EXPANSION PLUG,Hex, 6.31mm ID x 15.5mm OD x 48.5mm L

1шт.

12

84317307

POPPET

Lock Check

2шт.

13

84478195

SOLENOID,Assembly, Pilot Head

Assy Pilot Head; Incl. Refs. 14 - 17

1шт.

14

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

15

87714123

FILTER

Filtration, 100-150 Micron

1шт.

16

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

17

84478197

SOLENOID

1шт.

18

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

19

87329482

VALVE BODY

Assy, EH Pilot; Incl. Refs. 4, 20 - 23

1шт.

20

282839A1

PLUG,8mm OD x 8.5mm L

1шт.

21

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

22

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

23

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

24

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

Aux Load Check Return

2шт.

25

87635387

O-RING,2.62mm Thk x 21.89mm ID, -118, 80 Duro

4шт.

26

87648596

SPRING,3.81mm OD x 23.19mm L

Aux Signal Check

1шт.

27

87648607

PLUG,M12 x 1.5 ORB

Load Sense

1шт.

28

87648631

PIN,8mm OD x 19mm L

Load Sense

1шт.

29

84579020

PLUG,1.81" - 2.75"

Expander 4mm

2шт.
