Запчасти Case IH MAGNUM 190 (35.124.01) - VALVE ASSEMBLY, HITCH - ASN ZCRH01492 (35) - HYDRAULIC SYSTEMS

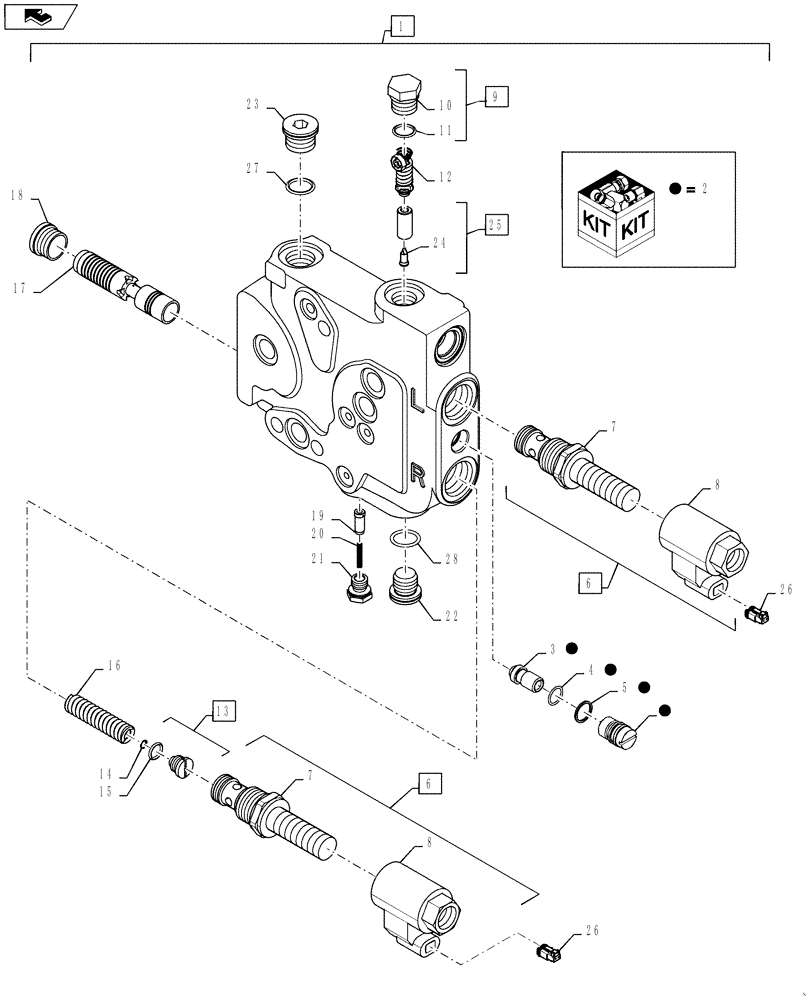

Схема запчастей Case IH MAGNUM 190 - (35.124.01) - VALVE ASSEMBLY, HITCH - ASN ZCRH01492 (35) - HYDRAULIC SYSTEMS
26
25
18
home
8
10
6
27
4
12
2
23
17
5
28
2
2
21
1
11
20
6
22
2
7
14
9
3
8
2
24
16
19
7
2
26
13
15

Артикул

Название

Примечание

Количество

1

84536016

VALVE

Assy, Hitch; Incl. Refs. 2 - 26

1шт.

2

1542563C1

KIT

Check Assy, Logic

1шт.

3

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

4

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

5

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

Back-Up

1шт.

6

84281970

SOLENOID

PWM-Hitch; Incl. Refs. 7 - 8

2шт.

7

84294073

SOLENOID

Cartridge

2шт.

8

87608473

COIL

Solenoid Hitch

2шт.

9

385520A1

PLUG,Hex, 13.05mm ID x 22.23mm OD x 23.5mm L

Assy, Check Valve; Incl. Refs. 10 - 11

1шт.

10

385521A1

PLUG

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

337425A3

VALVE, PRESSURE RELI

EF 3200 PSI

1шт.

13

87619813

CHECK VALVE,1/2" - 20

Assy; Incl. Refs. 14 - 15

1шт.

14

100-2125

SNAP RING,M25, Int

25 PLN

1шт.

15

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

16

436854A1

SPRING,15.11mm OD x 63.35mm L

Compression

1шт.

17

84187247

SPOOL,15.9mm ID x 19.32mm OD x 96mm L

Compression, Hitch

1шт.

18

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

19

87648631

PIN,8mm OD x 19mm L

Load Sense

1шт.

20

87648596

SPRING,3.81mm OD x 23.19mm L

Aux Signal Check

1шт.

21

87648607

PLUG,M12 x 1.5 ORB

Load Sense

1шт.

22

221578A1

PLUG,M18 x 1.5 ORB

Incl. 28

1шт.

23

221579A1

PLUG,M22 x 1.5 ORB

Incl. 27

1шт.

24

87518992

PLUG

Assy, Orifice; Incl. Ref. 25

1шт.

25

133519C1

SCREEN

1шт.

26

87695582

ELEC CONNECTOR,Female, 2 Pole

2шт.

27

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

28

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 28
