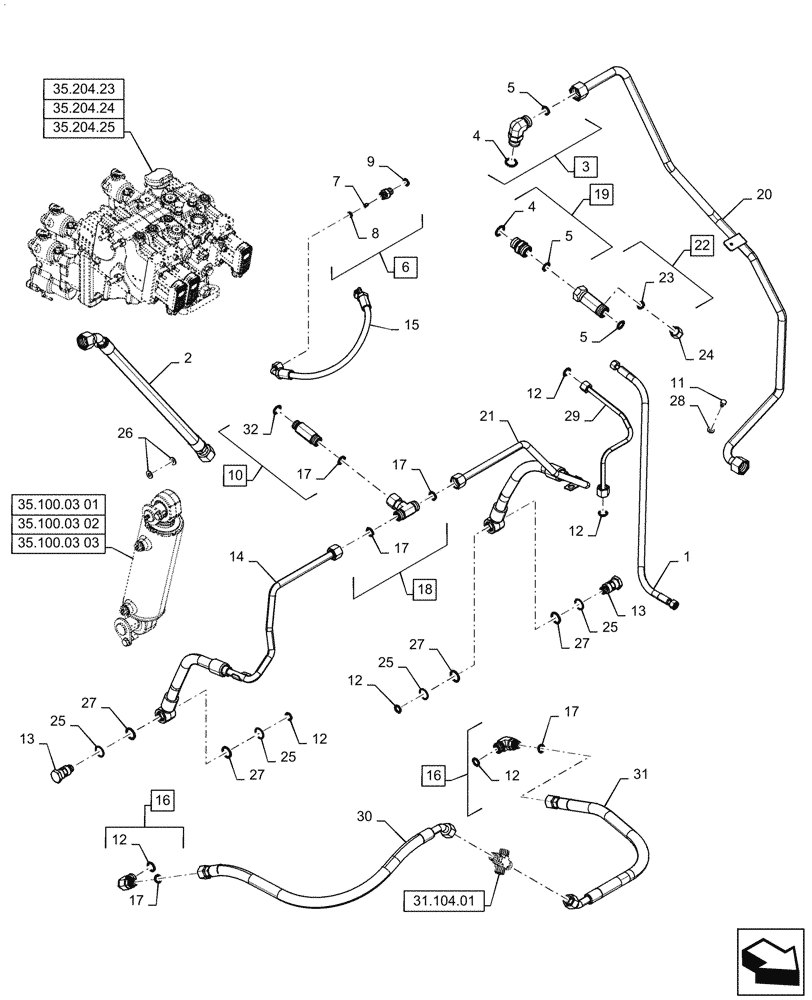

Запчасти Case IH MAGNUM 190 (35.100.04[04]) - LIFTER LINES, LIFTER CYLINDERS PIPES & REMOTE CONTROL VALVES DRAIN, WITH POWERSHIFT TRANSMISSION (35) - HYDRAULIC SYSTEMS

1

84120066

HOSE

Load Sense, Remotes

1шт.

2

87316346

HYDRAULIC HOSE,19mm ID x 693mm L

Priority Valve to Remotes

1шт.

3

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

Incl 4, 5

1шт.

4

14438185

O-RING,24mm ID x 3mm

2шт.

5

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

3шт.

6

84162690

ORIFICE,Hex, M16 x 1.5 x 33.5mm L

Load Sense Bleed, Incl 7 - 9

1шт.

7

133519C1

SCREEN

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

10

84323257

HYD CONNECTOR,M22 x 1.5 x 83mm L

Incl 17, 32

1шт.

11

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

6шт.

13

84544103

HYD CONNECTOR,M18 x 1.5 x 55mm L

2шт.

14

84544109

PIPE

RH Lift Cylinder

1шт.

15

84162654

HOSE,6.3mm ID x 552mm L

Aux Load Sense Bleed

1шт.

16

5185562

ELBOW

Incl 12, 17

2шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

18

5197110

TEE,1"-14 UNS

Incl 17

1шт.

19

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

Incl 4, 5

1шт.

20

87608190

HYD TUBE

Remotes Drain

1шт.

21

84544105

PIPE

LH Lift Cylinder

1шт.

22

5197273

HYD CONNECTOR,1' 3/16-12 x 83.6mm

Incl 5, 23

1шт.

23

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

24

87331951

ORIFICE

1шт.

25

48074883

BACK-UP RING

4шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

27

272975

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

4шт.

28

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

29

87370311

HYD TUBE

Low Pressure, EHS Remotes

1шт.

30

87316345

FLEXIBLE HOSE

RH Lift Cylinder, Low Pressure

1шт.

31

87316344

FLEXIBLE HOSE

LH Lift Cylinder, Low Pressure

1шт.

32

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
