Запчасти Case IH MAGNUM 190 (33.202.01) - TRANSMISSION BRAKES, WITH POWERSHIFT TRANSMISSION (33) - BRAKES & CONTROLS

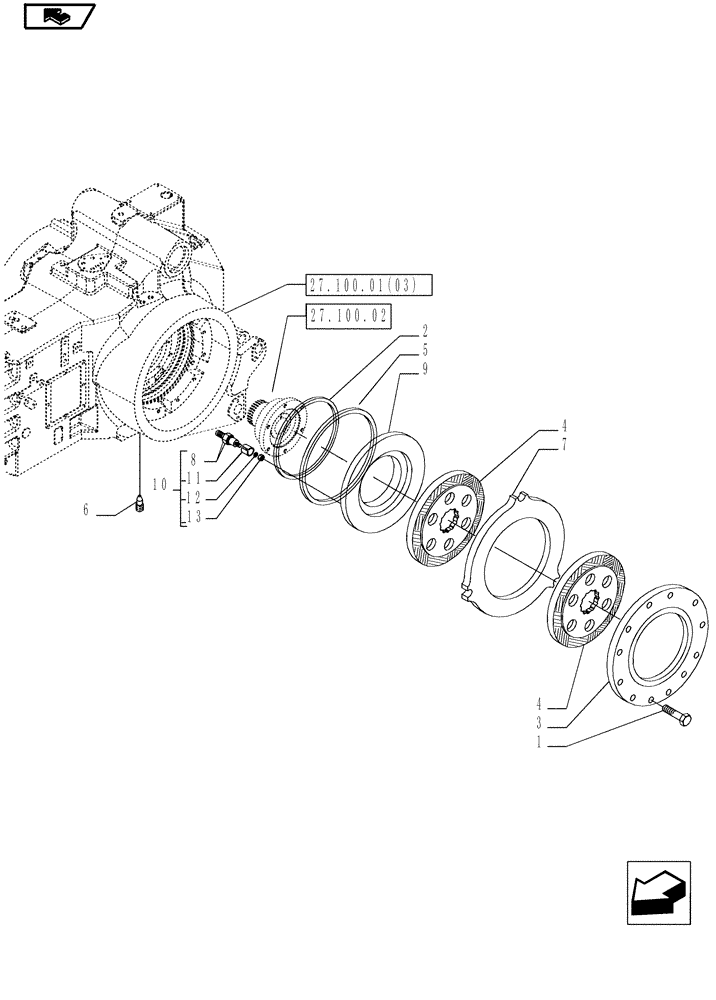

Схема запчастей Case IH MAGNUM 190 - (33.202.01) - TRANSMISSION BRAKES, WITH POWERSHIFT TRANSMISSION (33) - BRAKES & CONTROLS
4
11
2
27.100.02
5
4
home
27.100.01(03)
9
10
13
6
8
3
1
7
12

Артикул

Название

Примечание

Количество

1

14274924

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

24шт.

2

5195253

SEAL,Square, 3.4mm Thk x 294.1mm ID, 80 Duro

M259.6x266.4x3.4

2шт.

3

5185968

BRAKE DISC,245mm ID x 400mm OD x 29mm Thk

2шт.

4

84201664

BRAKE DISC,60mm ID x 327mm OD x 9.5mm Thk

4шт.

5

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

329.6 x 336.4 x 3.4

2шт.

6

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

2шт.

7

5185950

BRAKE DISC,245mm ID x 368mm OD x 22mm Thk

2шт.

8

84172140

PIN

2шт.

9

5195093

PISTON

2шт.

10

84172141

PIN,22mm OD x 64mm L

6шт.

11

84172142

BUSHING,13.3mm ID x 20mm OD x 21.9mm L

6шт.

12

84177978

WASHER,8.2mm ID x 20mm OD x 2mm Thk

6шт.

13

14048221

NUT,M8 x 1.25, Cl 10

6шт.

Выбрано товаров: 13
