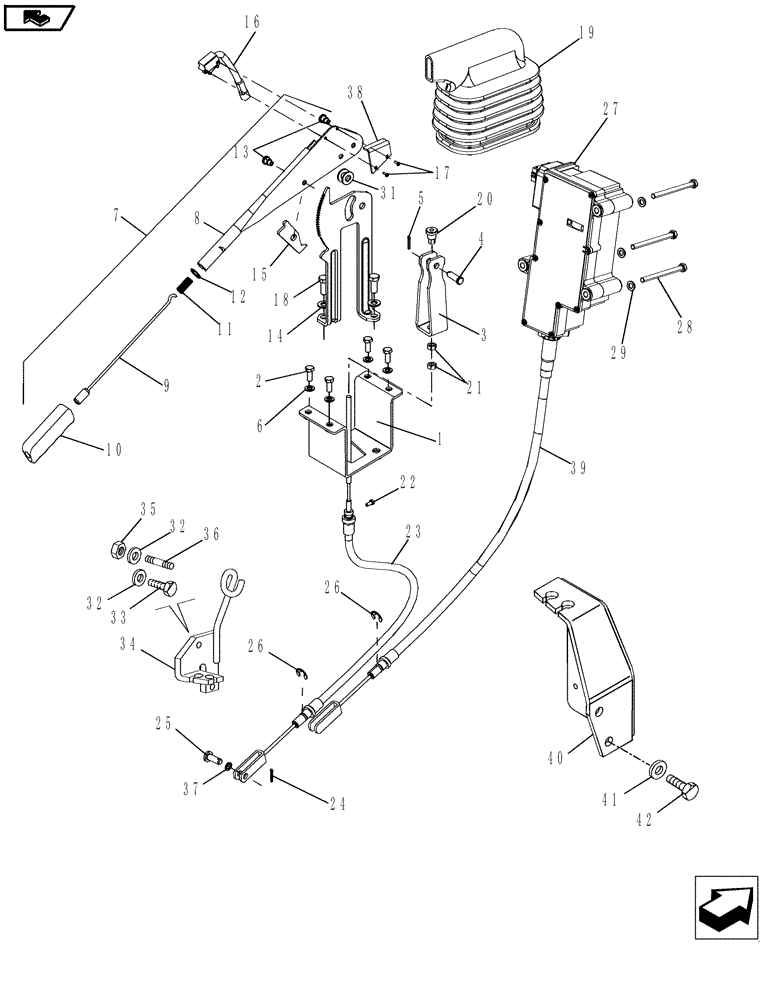

Запчасти Case IH MAGNUM 190 (33.110.02) - HANDBRAKE CONTROL (33) - BRAKES & CONTROLS

1

84172849

BRACKET

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

3

84140224

CLEVIS

1шт.

4

83902558

PIN,3/8" x 1.312"

1шт.

5

81813880

COTTER PIN,3/32" x 3/4"

1шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

84174329

BRAKE LEVER

Incl 8 - 15, 31

1шт.

8

84174328

BRAKE LEVER

Incl 31

1шт.

9

81870377

BUTTON

1шт.

10

81866090

HANDLE GRIP

1шт.

10

84332158

GRIP

Orange

1шт.

11

81866091

SPRING,Type, 12.2mm OD x 40mm L

1шт.

12

81866092

WASHER,5.5mm ID x 13.4mm OD x 1.2mm Thk

1шт.

13

82000812

PIN,7.8mm OD x 7.4mm L

2шт.

14

84174325

SUPPORT

1шт.

15

82863025

PAWL,4.5mm Thk

1шт.

16

84142375

PARK BRAKE SWITCH

Warning

1шт.

17

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

2шт.

18

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

19

81866095

BOOT

1шт.

20

82000974

NUT,Adj., M8, 1.25 Pitch, 23.00mm High, Zinc

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

22

82007631

SET SCREW,M5 x 0.8 x 12, Flat Pt

1шт.

23

84140203

BOWDEN CONTROL

1шт.

24

10766901

COTTER PIN,M3.2 x 25

1шт.

25

358885

CLEVIS PIN,M10 x 25

1шт.

26

11087374

CIRCLIP,M13

1шт.

27

84361212

ACTUATOR

EPL, Incl 39, Serial Range: -XXXXXX

1шт.

27

47513111R

REMAN ELECT CONTROL

EPL, Incl 39, Serial Range: -XXXXXX

1шт.

27

47513111C

CORE-ELECTRONIC CONT

Return Number

1шт.

27

84589406

CONTROL UNIT

EPL, Incl 39, Serial Range: XXXXXX-XXXXXX

1шт.

27

84589406R

REMAN ELECT CONTROL

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225, All SMALL FRAME TRACTOR TIER 4 (NA) - ZARH06086 AND AFTER, EPL, Serial Range: XXXXXX-XXXXXX

1шт.

27

84589406C

CORE-ELECTRONIC CONT

Return Number

1шт.

27

47513111

CONTROL UNIT

EPL, Incl 39, Start Serial: XXXXXX

1шт.

27

84589406R

REMAN ELECT CONTROL

EPL, Incl 39

1шт.

27

84589406C

CORE-ELECTRONIC CONT

Return Number

1шт.

28

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

3шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

30

84123734

TOOL

1шт.

31

81866089

WASHER,Flat, 12.00mm ID x 23.00mm OD x 2.00mm

2шт.

32

82879352

LOCK WASHER,M12

If Used

3шт.

Magnum 180, 190 and 210

1шт.

33

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

If Used

1шт.

Magnum 180, 190 and 210

1шт.

34

82031225

BRACKET

Handbrake Cable, If Used

1шт.

Magnum 180, 190 and 210

1шт.

35

16101521

NUT,M12 x 1.25, Cl 10

If Used

2шт.

Magnum 180, 190 and 210

1шт.

36

13530324

STUD

If Used

2шт.

Magnum 180, 190 and 210

1шт.

37

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

38

84199077

PROTECTION PLATE

1шт.

39

84226377

CABLE,990mm L

EPL, Use With 84361212 Actuator

1шт.

39

84589407

CABLE,1040mm L

EPL, Use With 84589406 or 47513111 Actuator

1шт.

40

87689273

BRACKET

1шт.

41

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

42

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.
