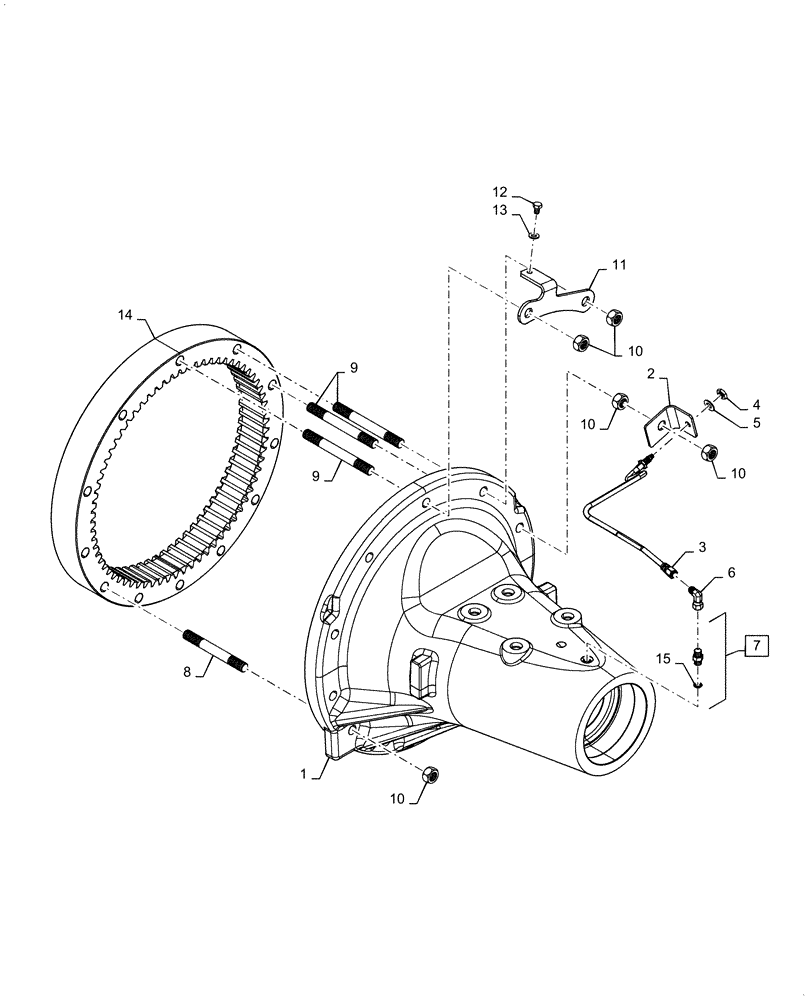

Запчасти Case IH MAGNUM 190 (27.120.03) - SIDE REDUCTION UNIT, FINAL DRIVE, HOUSING & COVERS - ASN ZDRH05198 (27) - REAR AXLE SYSTEM

1

84579307

AXLE HOUSING

Magnum 180, 190

2шт.

1

84579305

AXLE HOUSING

Magnum 210, 225

2шт.

2

47502861

BRACKET

Rear Axle Grease Line

1шт.

3

87572760

HOSE ASSY.,6.4mm ID x 533mm L

Grease

2шт.

4

F53473

LOCK NUT,1/8-27 NPSM

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

2шт.

7

452051A1

ADAPTER,M10 x 1 ORB x 7/16" - 20 ORB

Incl 15

2шт.

8

13973330

STUD,M16 x 1.5 x 32.00mm x 105.00mm, Cl 10.9, PLN

14шт.

9

13973630

STUD,M16 x 1.5 x 32mm x 120mm, Cl 10.9

10шт.

10

12164124

NUT,M16 x 1.5, Cl 8

26шт.

11

84488700

BRACKET

RH Cylinder Pipe

1шт.

11

84488702

BRACKET

LH Cylinder Pipe

1шт.

12

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

13

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

14

87307352

RING GEAR

Internal Final Drive

2шт.

15

14437585

O-RING,8.00mm ID x 1.50mm

2шт.
