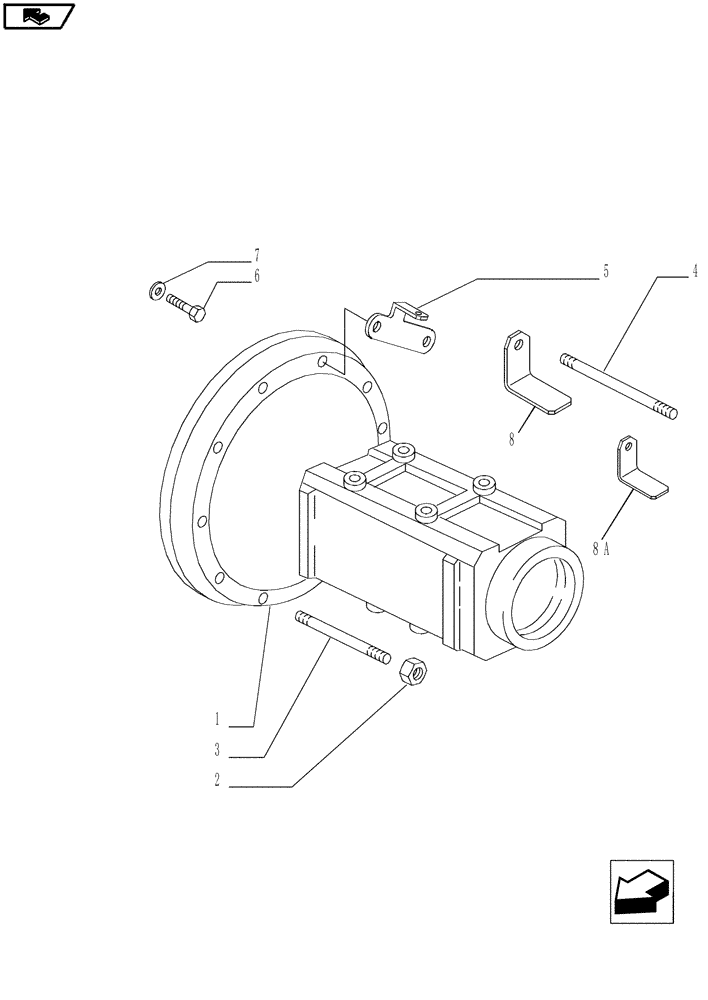

Запчасти Case IH MAGNUM 190 (27.120.01) - SIDE REDUCTION UNIT, FINAL DRIVE, HOUSING & COVERS - BSN ZDRH05198 (27) - REAR AXLE SYSTEM

1

47135687

SHAFT HOUSING

2шт.

Magnum 180, 190

1шт.

1

87307353

SHAFT HOUSING

2шт.

Magnum 210, 225

1шт.

2

12164124

NUT,M16 x 1.5, Cl 8

24шт.

3

13973330

STUD,M16 x 1.5 x 32.00mm x 105.00mm, Cl 10.9, PLN

17шт.

4

13973630

STUD,M16 x 1.5 x 32mm x 120mm, Cl 10.9

7шт.

5

87515604

BRACKET

Right hand

1шт.

5

87515601

BRACKET

Left Hand

1шт.

6

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

7

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

82026710

BRACKET

Reflector, Tall, If Used

2шт.

8a

84205313

BRACKET

Reflector, Short, If Used

2шт.
