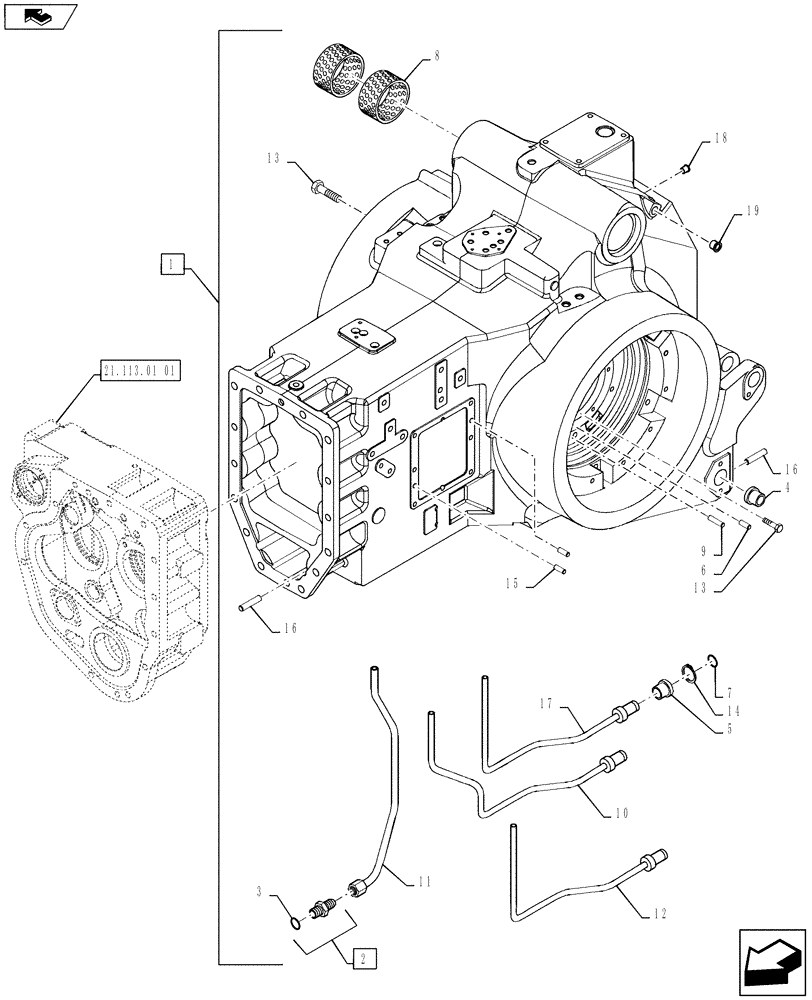

Запчасти Case IH MAGNUM 190 (27.100.01[03]) - FINAL DRIVE HOUSING, PTO/BRAKE PLUMBING - POWERSHIFT TRANSMISSION (27) - REAR AXLE SYSTEM

1

84490301

TRANSMISSION HOUSING

PST; Incl. Refs. 2 - 19

1шт.

2

5154713

HYD CONNECTOR

SAE 37-3/4 M16X1,5

1шт.

3

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

4

5194813

BUSHING,37mm ID x 53mm OD x 40mm L

4шт.

5

84268812

BUSHING,16mm ID x 23mm OD x 16mm L

3шт.

6

5110200

DOWEL,12mm OD x 25mm L

M12 x 25

6шт.

7

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

3шт.

8

5185956

BUSHING,80.1mm ID x 85mm OD x 60mm L

4шт.

9

5187995

GUIDE PIN,15mm OD x 65mm L

M15 x 65

6шт.

10

84271077

TUBE

Lubrification PTO

1шт.

11

5198507

TUBE

4WD

1шт.

12

84269540

TUBE

Brake PTO

1шт.

13

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

84268818

SNAP RING

3шт.

15

10839710

DOWEL,M10 x 15.00mm

2шт.

16

4985062

DOWEL,15mm OD x 25mm L

4шт.

17

84269541

TUBE

Supply Rear PTO Clutch

1шт.

18

4998275

PLUG,8,8mm ID x 10,8mm OD x 10.0mm L

10,8-11

1шт.

19

5111228

PLUG,16.5mm ID x 20mm OD x 11mm Thk

M16,5

1шт.
