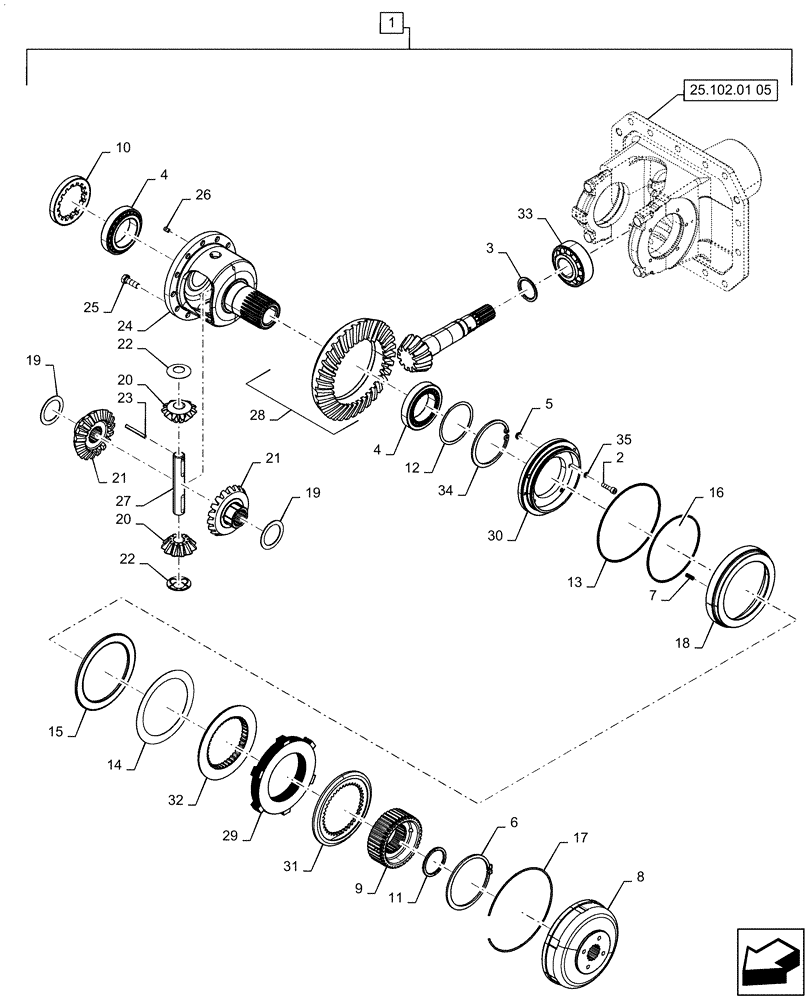

Запчасти Case IH MAGNUM 190 (25.102.01[04]) - DIFFERENTIAL, MFD 12-BOLT CLASS 4 AXLE - ASN ZBRH03334 (25) - FRONT AXLE SYSTEM

1

84316259

DIFFERENTIAL ASSY

Class 4 Phase II Axle, Pinion W/Shim, Incl 2 - 35, Serial Range: ZBRH03334-ZDRH03784

1шт.

1

47438135

DIFFERENTIAL ASSY

Class 4 Phase II Axle, Pinion W/O Shim, Incl 2, 4 - 35, Start Serial: ZDRH03785

1шт.

2

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

5шт.

3

7888012

SHIM,45.1mm ID x 58mm OD x 0.5mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

84219417

SHIM,45.1mm ID x 58mm OD x 1.9mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

84219416

SHIM,45.1mm ID x 58mm OD x 2mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

84219415

SHIM,45.1mm ID x 58mm OD x 2.1mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

84219414

SHIM,45.1mm ID x 58mm OD x 2.2mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

5121690

RING,45.1mm ID x 58mm OD x 2.3mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

5121691

RING,45.1mm ID x 58mm OD x 2.4mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

4999063

SHIM,45.1mm ID x 58mm OD x 2.5mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

4999064

SHIM,45.1mm ID x 58mm OD x 2.6mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

4999065

SHIM,45.1mm ID x 58mm OD x 2.7mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

4999066

RING,45.1mm ID x 58mm OD x 2.8mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

3

4999067

SHIM,45.1mm ID x 58mm OD x 2.9mm Thk

, Serial Range: ZBRH03334-ZDRH03784

1шт.

4

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

2шт.

5

14452881

O-RING,7.65mm ID x 1.78" Width

1шт.

6

11083176

SNAP RING,M125, Ext

1шт.

7

5120761

SPRING,7.7mm OD x 20.5mm L

3шт.

8

5134083

HOUSING

Differential Locking

1шт.

9

5134099

HUB

Internal, Diff Lock

1шт.

10

5110423

RING NUT

1шт.

11

5135032

HALF-RING,58mm ID x 70mm OD x 4mm Thk

1шт.

12

47492056

SHIM KIT

1шт.

13

5140121

O-RING,0.103" Thk x 6.737" ID, -166, Cl 5, 75 Duro

1шт.

14

5134175

WASHER,140mm ID x 180mm OD x 1mm Thk

1шт.

15

5134174

ROLLER BEARING,140mm ID x 180mm OD x 5mm W

1шт.

16

5140120

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

17

5134095

CIRCLIP,200mm ID

1шт.

18

5134093

PLUNGER

Piston

1шт.

19

4997236

THRUST WASHER,51mm ID x 70mm OD x 1.6mm Thk

2шт.

20

4991695

IDLER PINION

2шт.

21

5149551

PLANETARY GEAR,19T

2шт.

22

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

2шт.

23

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

24

87342770

HOUSING

1шт.

25

84170038

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

26

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

27

4991652

PIN,23mm OD x 157mm L

1шт.

28

84381883

BEVEL GEAR

Set, Pinion and Ring Gear, Serial Range: ZBRH03334-ZDRH03784

1шт.

28

84365311

BEVEL GEAR

Set, Pinion and Ring Gear, Start Serial: ZDRH03785

1шт.

29

5198089

CLUTCH PACK

1шт.

30

5148468

FLANGE

Front Differential Lock

1шт.

31

5141750

RING GEAR

Plate, Reaction Ring

1шт.

32

5144582

DISC,119mm ID x 180mm OD x 15mm Thk

1шт.

33

5141714

TAPERED BEARING,45mm ID x 85mm OD x 20mm W

, Serial Range: ZBRH03334-ZDRH03784

1шт.

33

84368730

ROLLER BEARING,45mm ID x 100mm OD x 38.25mm W

, Start Serial: ZDRH03785

1шт.

34

11075476

SNAP RING,M110, Int

1шт.

35

10569374

LOCK WASHER,M8

5шт.
