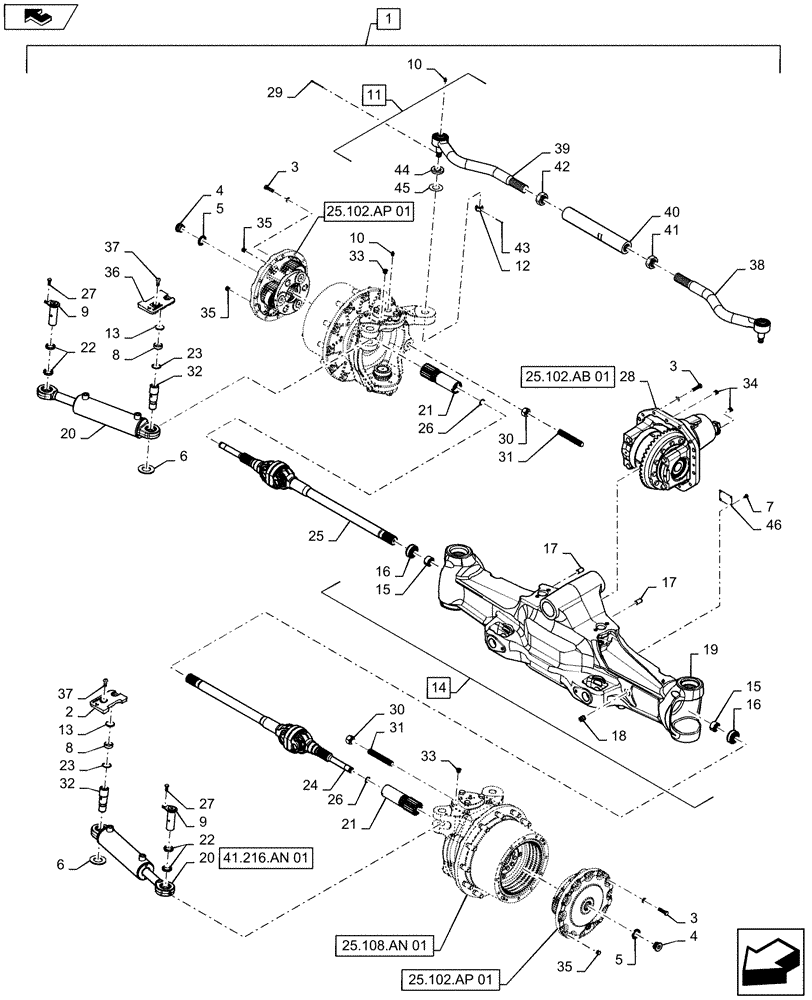

1
84357980
AXLE
Assy, Front CL 4.75; Incl 2 - 46
1шт.
2
47451490
STOP
Oscillation LH
1шт.
Use with Non-Suspended Axles
1шт.
2
47615228
STOP
Oscillation LH
1шт.
Use with Suspended Axles
1шт.
3
828-12045
BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd
38шт.
4
221527A1
PLUG,Hex Soc, M33 x 2, ORB
2шт.
5
14438285
O-RING,29.5mm ID x 3.0mm
1шт.
6
47359976
WASHER,41mm ID x 76mm OD x 4.76mm Thk
Steering Cyl Spacer
2шт.
7
301-1434
DRIVE SCREW,Drive, #6 x 1/4"
4шт.
8
87554181
SPACER,35.5mm ID x 39.5mm OD x 12.5mm L
Steering Cyl Piston Side
2шт.
9
87554183
PIN,34.99mm OD x 115mm L
Steering Cyl Rod Side
2шт.
10
13407211
LUBE NIPPLE,M10 x 1
4шт.
11
84297786
TIE-ROD
Assy; Incl 12, 38 - 45
1шт.
12
84588426
NUT,M22 x 1.5
Hex Slotted M22 x 1.5
2шт.
13
84315411
COVER
Pin Steering Cyl Inboard
2шт.
14
84297738
BEAM
Assy; CL 4.75 Suspended; Incl 15 - 19
1шт.
15
84411553
BUSHING,50mm ID x 55mm OD x 30mm L
50 x 55 x 30
2шт.
16
84416409
SEAL,50mm ID x 80mm OD x 27.5mm Thk
50 x 80 x 27
2шт.
17
5174376
DOWEL,M16 x 30
2шт.
18
14326211
PLUG,M22 x 1.50, R50, ZND
2шт.
19
47385052
HOUSING
Beam Suspended Axle
1шт.
20
84308818
CYLINDER
Assy, Steering
2шт.
21
84345699
GEAR
Sun, 16T Planetary
2шт.
22
48040011
SPACER
Steering Cyl Rod Side
4шт.
23
800-2140
SNAP RING,M40, Int
2шт.
24
84415815
SHAFT
Cardan Short, CL 4.75
1шт.
25
84415814
SHAFT
Cardan Long, CL 4.75
1шт.
26
197297
SNAP RING,#98, Ext
2шт.
27
628-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd
2шт.
28
84415794
PINION
Assy, With Differential
1шт.
29
432-828
COTTER PIN,1/8" x 1 3/4"
2шт.
30
829-1424
NUT,M24, Cl 10
2шт.
31
84530771
ADJUSTMENT SCREW,M24 x 3 x 154mm L
Steering Stop Short
2шт.
32
47384884
PIN,39.73mm OD x 123.2mm L
Steering Cyl Piston Side
2шт.
33
353-77
PLUG,Cap, .576" OD
8шт.
34
353-401
PLUG,Dome, .312" hole, Nylon
2шт.
35
353-402
PLUG,Dome, .375" hole, Nylon
4шт.
36
47451489
STOP
Oscillation, RH
1шт.
Use with Non-Suspended Axles
1шт.
36
47615227
STOP
Oscillation, RH
1шт.
Use with Suspended Axles
1шт.
37
47443987
HEX SOC SCREW,BTN HD, M12 x 30mm, Cl 10.9
4шт.
38
47461986
TIE-ROD,M42 x 1.5, LH, Cl 4.75
Assy, Left; CL4.75
1шт.
39
47461985
TIE-ROD,M42 x 1.5, RH, Cl 4.75
Assy, Right; CL 4.75
1шт.
40
47461984
TIE-ROD
Center; CL 4.75
1шт.
41
47461988
JAM NUT,M42 x 1.5
Right
1шт.
42
47461987
JAM NUT,M42 x 1.5
Left
1шт.
43
80708
COTTER PIN,1/8" x 1 1/2"
2шт.
44
47577020
COVER
Cardan Short, CL 5
2шт.
45
47577021
WASHER
Steering Cyl Rod Side
2шт.
46
NSS
NOT SOLD SEPARAT
ID Plate; Incl in 1
1шт.
