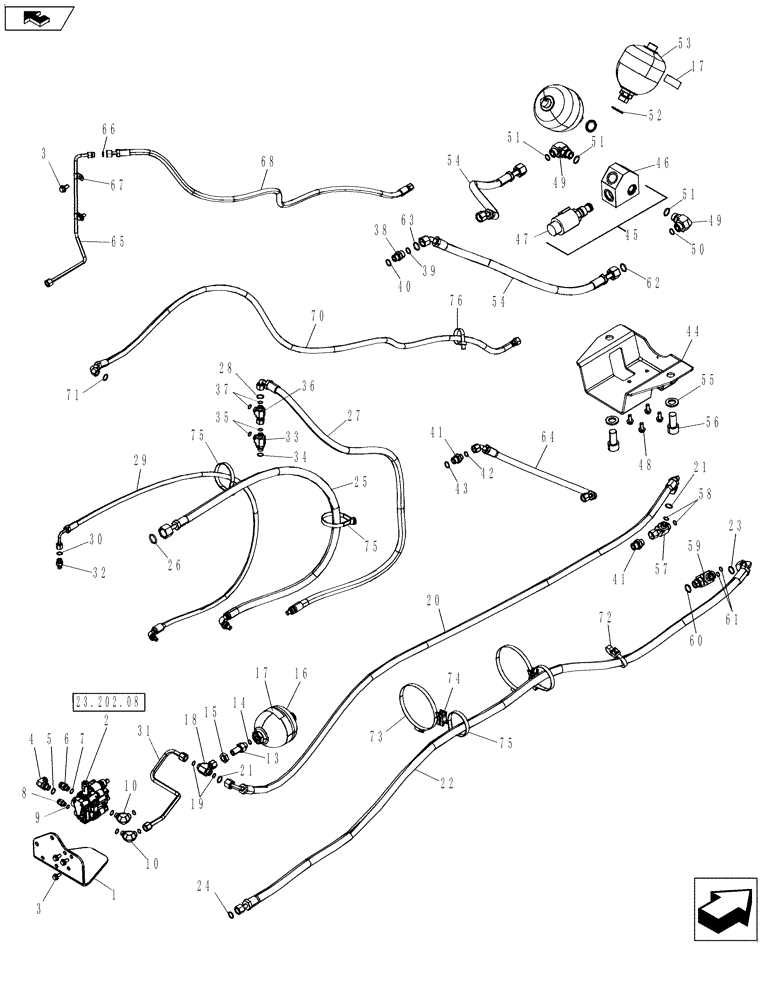

Запчасти Case IH MAGNUM 190 (23.202.06) - HYDRAULIC SYSTEM, SUSPENDED MFD AXLE, POWERSHIFT TRANSMISSION (23) - FOUR WHEEL DRIVE SYSTEM

1

84258419

BRACKET

1шт.

2

87668716

VALVE

Suspended Axle Control

1шт.

3

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

5шт.

4

87491814

FITTING

Inc. 5

1шт.

5

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

87476353

HYD CONNECTOR

Inc. 7

1шт.

7

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

8

87331073

HYD CONNECTOR,M14 x 1.5 Male ORB x -06 Fem STC

Inc. 9

1шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

Inc. 11, 12

2шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

13

87381298

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Inc. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

1шт.

16

87602613

ACCUMULATOR,1L

1.0 Liter

1шт.

17

82029752

DECAL

3шт.

18

84431325

TEE,13/16"-16 ORFS x 13/16"-16 Fem Sw Br

Inc. 19

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

20

84314814

HYDRAULIC HOSE

B Port, Inc. 21

1шт.

21

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

22

84260257

HYDRAULIC HOSE,15.88mm ID x 2435mm L, SAE 100R17

A Port, Inc. 23, 24

1шт.

23

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

84261025

HYDRAULIC HOSE

Supply, Inc. 26

1шт.

26

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

27

84261787

HYDRAULIC HOSE

Return, Inc. 28

1шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

84314813

HYDRAULIC HOSE

LS, Inc. 30

1шт.

30

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

31

84262577

HYD TUBE

, Serial Range: Valve-Accumulator

1шт.

32

87551023

CHECK VALVE

Inc. O-Rings

1шт.

33

86579701

TEE,11/16"-16 ORFS x M16 x 1.5 ORB Run

Inc. 34, 35

1шт.

34

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

35

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

36

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Inc. 37

1шт.

37

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

38

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Inc. 39, 40

1шт.

39

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

40

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

41

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Inc. 42, 43

2шт.

42

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

43

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

44

84140980

BRACKET

1шт.

45

87749687

VALVE

1.4 Liter Accumulator Blocking, Inc. 46, 47

1шт.

46

87749685

BODY

1шт.

47

87749686

SOLENOID

1шт.

48

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

49

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Inc. 50, 51

2шт.

50

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

51

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

52

340493A2

SEALING RING,30.3mm ID x 42.8mm OD x 2.5mm Thk

2шт.

53

87622941

ACCUMULATOR,1.4L

1.4 Liter

2шт.

54

84143042

HOSE

Accumulator to Cylinder, Inc. 62, 63

2шт.

55

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

2шт.

56

2186808

HEX SOC SCREW,M24 x 50mm, Cl 8.8

2шт.

57

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Inc. 58

1шт.

58

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

59

86579705

TEE,1"-14 ORFS x M22 x 1.5 ORB Run

Inc. 60, 61

1шт.

60

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

61

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

62

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

63

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

64

87623748

HOSE

Cylinder Crossover

1шт.

65

84158558

HYD TUBE,0.375" OD

Differential Lock Supply

1шт.

66

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

67

86639003

CLAMP,9.5mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

68

84152406

HOSE ASSY.

Differential lock Supply, Inc. 69

1шт.

69

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

70

84314785

HYDRAULIC HOSE

Differential lock Drain, Inc. 71

1шт.

71

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

72

86991000

CLAMP

1шт.

73

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

74

86991001

SPACER

2шт.

75

86991007

CABLE TIE,509mm L

CABLE STRAP

4шт.

76

86991009

CABLE TIE,222mm L, Nylon

CABLE STRAP

1шт.
