(21.155.06[02]) - TRANSMISSION 50KPH & 40KPH ECONOMY, II, IV & REVERSE RANGE GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION

Запчасти Case IH MAGNUM 190 (21.155.06[02]) - TRANSMISSION 50KPH & 40KPH ECONOMY, II, IV & REVERSE RANGE GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

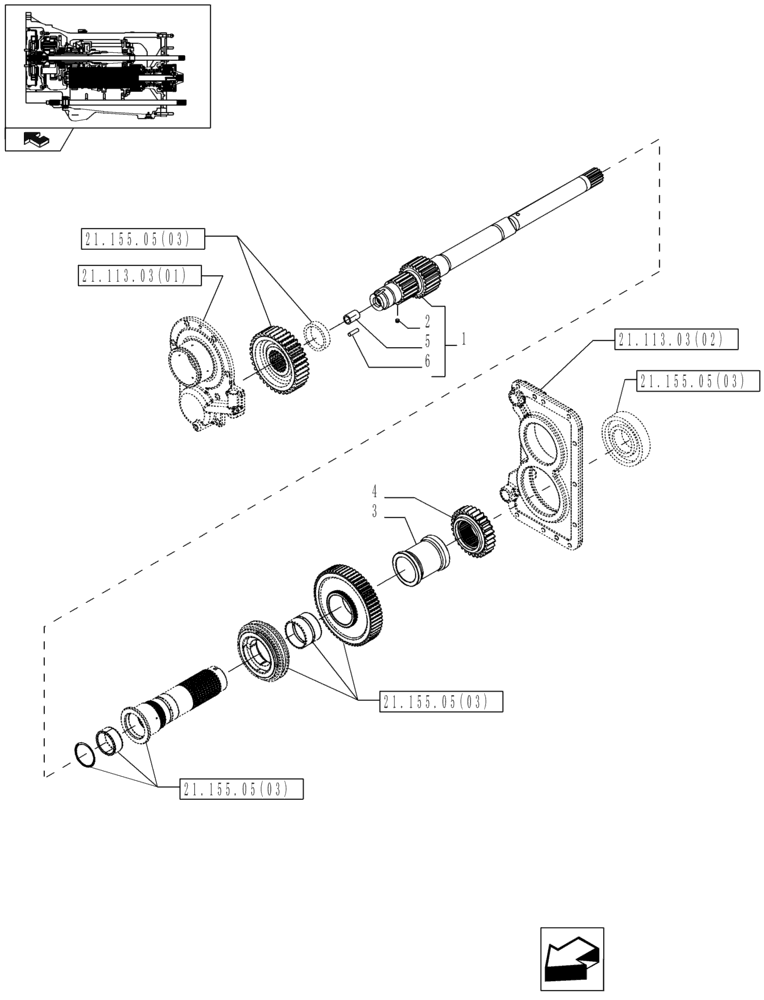

Схема запчастей Case IH MAGNUM 190 - (21.155.06[02]) - TRANSMISSION 50KPH & 40KPH ECONOMY, II, IV & REVERSE RANGE GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
3
home
21.113.03(02)
21.113.03(01)
4
21.155.05(03)
6
2
21.155.05(03)
21.155.05(03)
5
1
21.155.05(03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87701173

SHAFT

Inc. 2, 5, 6

1шт.

2

5193270

ORIFICE,M6 x 1 x 4mm, Cl 8.8

1шт.

3

87528366

SPACER,70mm ID x 95mm OD x 68mm L

1шт.

4

87528364

PINION

IV RANGE

1шт.

5

87568761

RESTRICTOR,Hex Soc, M10 x 1.25

1шт.

6

13939670

COILED PIN,5mm ODx 12mm L

1шт.
