Запчасти Case IH MAGNUM 190 (21.155.05[03]) - TRANSMISSION 40KPH - II & REVERSE RANGE GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

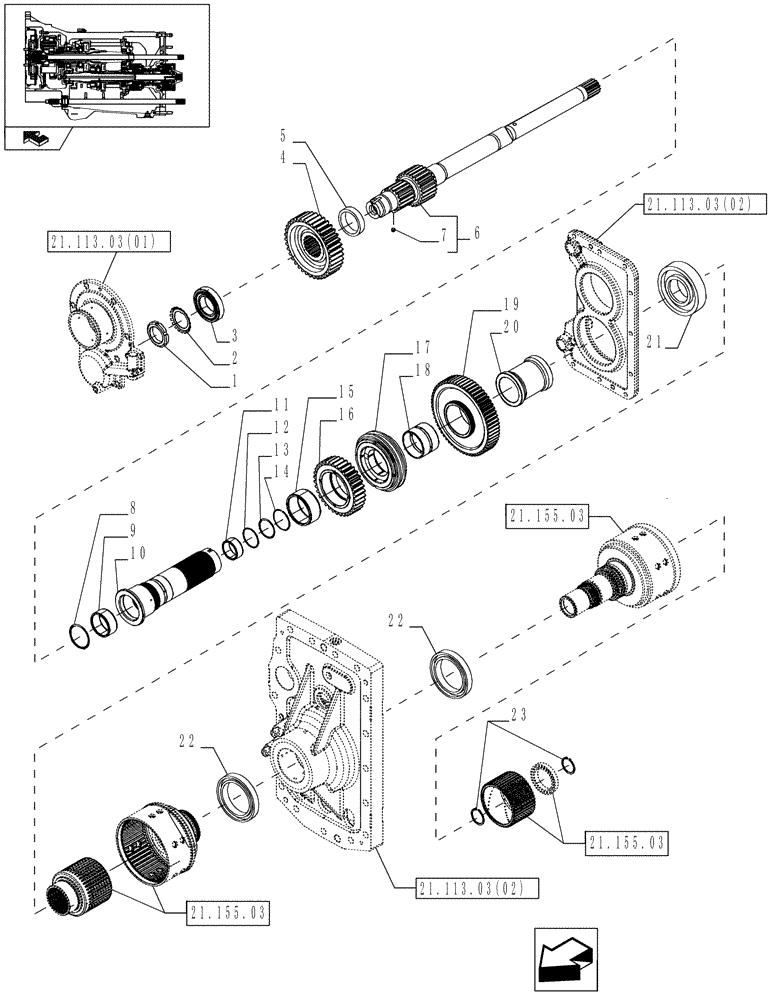

Схема запчастей Case IH MAGNUM 190 - (21.155.05[03]) - TRANSMISSION 40KPH - II & REVERSE RANGE GEARS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
22
10
16
19
21.155.03
6
15
8
9
21.155.03
1
21.113.03(02)
23
3
17
18
14
5
12
20
22
21.155.03
2
11
21.113.03(02)
7
21.113.03(01)
13
21
4

Артикул

Название

Примечание

Количество

1

5124794

RING NUT,M45 x 1.5

M45 x 10

1шт.

2

87562131

LOCK WASHER,45mm ID x 69mm OD x 1.8mm Thk

M45 x 1.5

1шт.

3

47136076

TAPERED BEARING,50mm ID x 90mm OD x 50mm W

1шт.

4

87528360

GEAR

1шт.

5

87539672

SPACER,60mm ID x 72mm OD x 16mm L

1шт.

6

87702002

SHAFT

1шт.

7

5193270

ORIFICE,M6 x 1 x 4mm, Cl 8.8

1шт.

8

87588681

SEALING RING,63.81mm ID x 67.81mm OD x 2.87mm Thk

1шт.

9

87562176

NEEDLE BEARING,50mm ID x 66mm OD x 30mm W

50 x 66 x 30

1шт.

10

87673909

SHAFT,65.6/70.6mm ID x 69.6/74.6mm OD x 293mm L, 34/36T

1шт.

11

5137527

NEEDLE BEARING,45mm ID x 50mm OD x 27mm W

1шт.

12

5139492

RING,M50, Ext

1шт.

13

87564297

OIL SEAL,45mm ID x 52mm OD x 4mm Thk

45 x 52 x 4

1шт.

14

87617914

SNAP RING,M52

1шт.

15

87562572

NEEDLE BEARING,80 mm ID x 88 mm OD x 30 mm

80 x 88 x 30

1шт.

16

87528362

GEAR,34T

1шт.

17

87534217

SYNCHRONIZER,144mm ID x 156mm OD x 46mm L, 36/48T

100-75

1шт.

18

87534187

BUSHING,70mm ID x 80mm OD x 44mm L

1шт.

19

84124115

GEAR

1шт.

20

87588101

SPACER

1шт.

21

87562149

BALL BEARING,80mm ID x 140mm OD x 26mm W

60 x 140 x 26

1шт.

22

87562157

BALL BEARING,90mm ID x 125mm OD x 18mm W

90 x 125 x 18

2шт.

23

11068876

SNAP RING,M40, Ext

2шт.

Выбрано товаров: 23
