Запчасти Case IH MAGNUM 190 (21.155.02[02]) - 4WD ENGAGEMENT CLUTCH CONTROL, SPLINED HUB (21) - TRANSMISSION

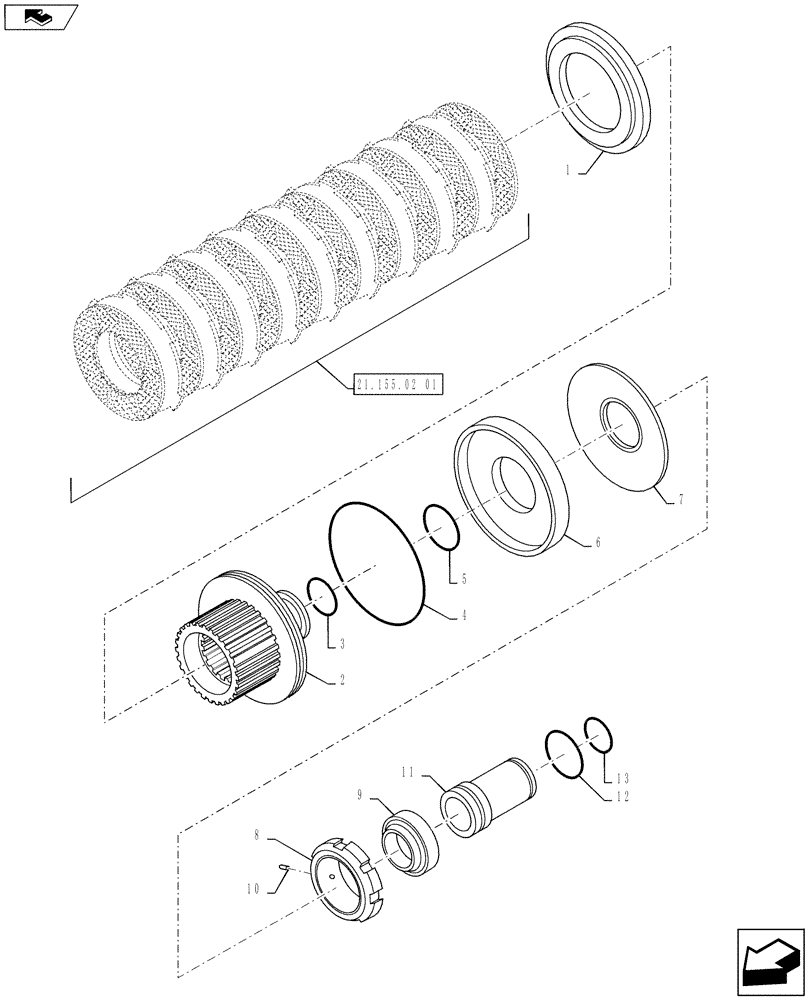

Схема запчастей Case IH MAGNUM 190 - (21.155.02[02]) - 4WD ENGAGEMENT CLUTCH CONTROL, SPLINED HUB (21) - TRANSMISSION
2
13
1
4
12
home
11
5
9
8
21.155.02 01
3
10
7
6

Артикул

Название

Примечание

Количество

1

47126551

CLUTCH PLATE,97.3-97.5mm ID, 161mm OD

1шт.

2

5195122

HUB

Clutch Plate Support

1шт.

3

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

4

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

5

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

6

47128251

PISTON

Drive Clutch Engagement

1шт.

7

47127780

BELLEVILLE SPRING,75mm ID x 161.4mm OD x 4.4mm Thk

1шт.

8

84208962

NUT,Round, M58 x 1.5, 23.6 Thd

1шт.

9

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

10

86516064

SET SCREW,M6 x 6mm, Cl 12.9

4шт.

11

5195345

MANIFOLD

Driver Delivery

1шт.

12

14459181

O-RING,45.69mm ID x 2.62" Width

1шт.

13

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

Выбрано товаров: 13
