Запчасти Case IH MAGNUM 190 (21.155.01[01]) - TRANSMISSION 19X6, CLUTCH DELIVERY MANIFOLD DRIVINGSHAFT, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION

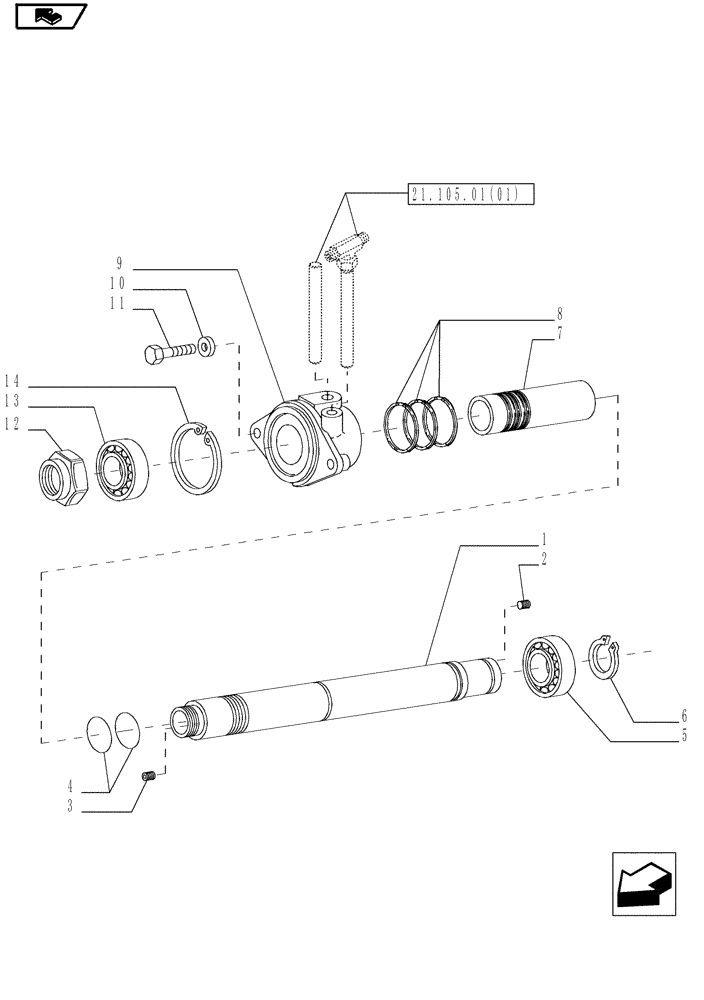

Схема запчастей Case IH MAGNUM 190 - (21.155.01[01]) - TRANSMISSION 19X6, CLUTCH DELIVERY MANIFOLD DRIVINGSHAFT, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION
home
21.105.01(01)
10
6
2
5
8
13
7
4
11
1
9
14
3
12

Артикул

Название

Примечание

Количество

1

47136140

DRIVE SHAFT

1шт.

2

5196138

PLUG

1шт.

3

13809170

SET SCREW,Hex Soc, M10 x 10mm, Flat Pt

1шт.

4

14459181

O-RING,45.69mm ID x 2.62" Width

2шт.

5

5150900

BEARING, ROLLER, CYL,45mm ID x 85mm OD x 19mm W

45 x 85 x 19

1шт.

6

11069076

SNAP RING,M45, Ext

1шт.

7

5195892

MANIFOLD

1шт.

8

5175996

RETAINER

3шт.

9

47134627

MANIFOLD

1шт.

10

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

11

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

12

5147930

RING NUT,M45 x 1.5

1шт.

13

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

50 x 90 x 20 mm

1шт.

14

11062476

SNAP RING,M90, Int

1шт.

Выбрано товаров: 14
