Запчасти Case IH MAGNUM 190 (21.113.03[01]) - CLUTCH BOX - COVERS AND GEARBOX, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

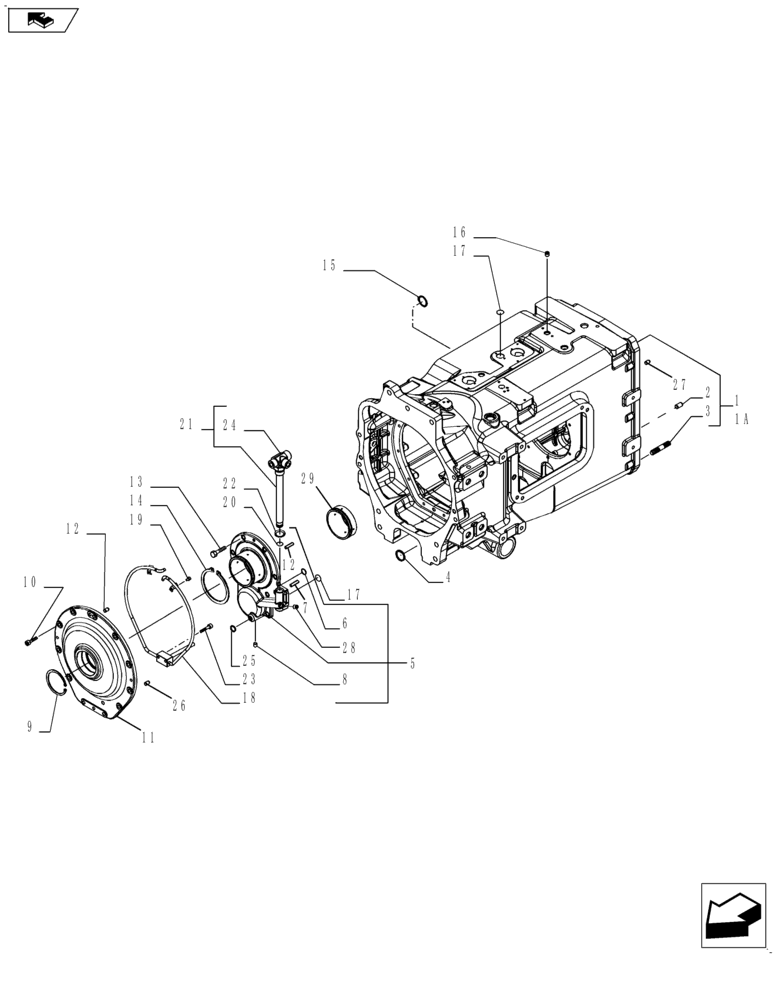

Схема запчастей Case IH MAGNUM 190 - (21.113.03[01]) - CLUTCH BOX - COVERS AND GEARBOX, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION
13
29
17
8
23
4
home
2
6
17
7
15
1
3
12
21
25
22
11
18
28
12
5
1a
9
26
16
27
14
20
10
19
24

Артикул

Название

Примечание

Количество

1

87593086

TRANSMISSION

ASSY, Complete

1шт.

2

5185790

DOWEL,18mm OD x 30mm L

D=18 x 30

2шт.

3

13973034

STUD,M16 x 1.5 x 90, 10.9 DAC

M16 x 1.5 x 90

17шт.

4

11061976

SNAP RING,M80, Int

1шт.

5

84231283

FLANGE COVER CAP

ASSY, Incl. 6-8, 12 (Qty 1), 28

1шт.

6

79086720

SEAL,Split, 17mm ID x 19.8mm OD x 1.57mm Thk

1шт.

7

87618940

PIPE

1шт.

8

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25 x 11

1шт.

9

11062476

SNAP RING,M90, Int

1шт.

10

14307620

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

9шт.

11

87486843

COVER

ASSY, Inc. 12 (Qty 2), 26

1шт.

Plug 10268404 Must Be Removed! Prior to Installation

1шт.

12

5153109

DOWEL,10mm OD x 15mm L

D=10 x 15

3шт.

13

14307521

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

9шт.

14

11082176

SNAP RING,M105, Ext

D=105

1шт.

15

11060576

SNAP RING,M52, Int

1шт.

16

10119411

PLUG,M18 x 1.5 x 12.00mm

2шт.

17

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

2шт.

18

87556073

TUBE

1шт.

19

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

20

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

21

87564417

HYD TUBE,14 mm ID x 20 mm OD x 253 mm L

Rear Lube, Inc. 24

1шт.

22

14453480

O-RING,17.17mm ID x 1.78mm

1шт.

23

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

24

87732510

HYD CONNECTOR

1шт.

25

577567

O-RING,9.92mm ID x 15.16mm OD x 2.62mm

2.62 x 9.92

1шт.

26

10268404

PLUG,M20 x 1.25 x 11, DAC

1шт.

27

87552010

BUSHING,24mm ID x 27mm OD x 30mm

2шт.

28

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

1шт.

29

84230669

SPACER,85.1mm ID x 90mm OD x 27.75mm L

1шт.

Выбрано товаров: 30
