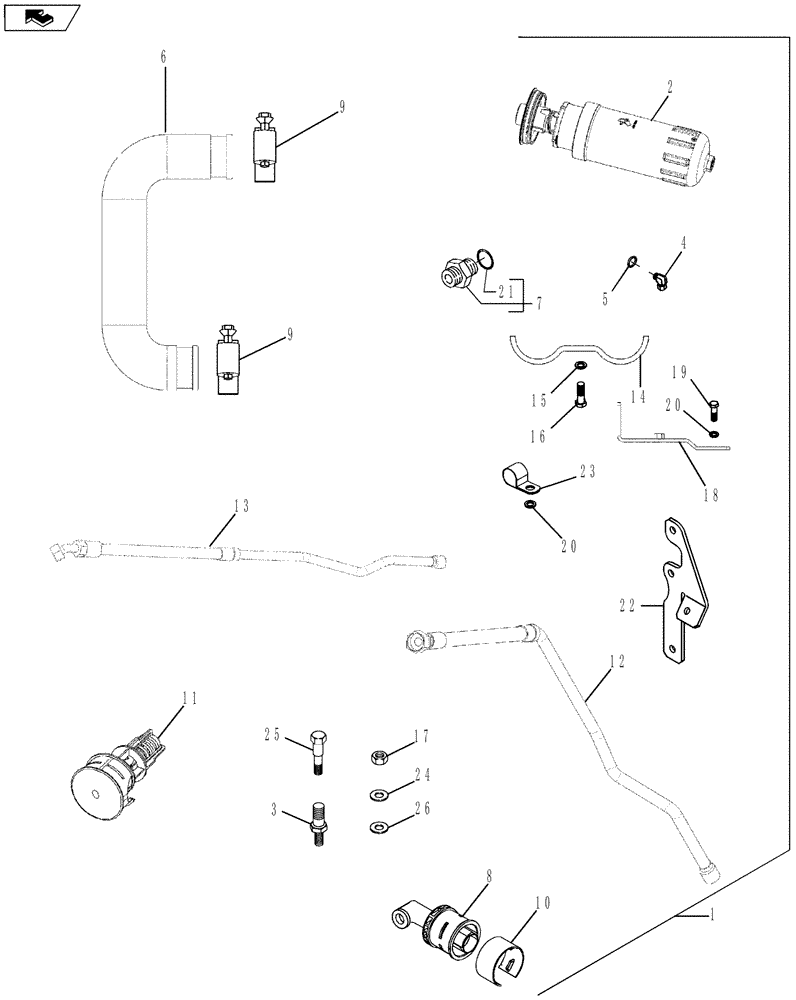

Запчасти Case IH MAGNUM 190 (21.105.07) - KIT, NOISE REDUCTION SERVICE FOR CONTINOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

1

39605000010

SERVICE KIT

Inc. 2 - 26

1шт.

2

84362926

HYDRAULIC OIL FILTER,112.8mm OD x 228mm L, 3/4-12

1шт.

3

84319210

STUD

2шт.

4

84247208

HYD CONNECTOR,1/4" - 18 DRYSEAL NPTF - M10 x 1

Inc. 5

1шт.

5

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

6

84236626

HOSE,25.40 mm ID x 185.80 mm

1шт.

7

84252094

HYD CONNECTOR,M42 X 2 x 22mm

Inc. 21

1шт.

8

87608358

ELBOW,90 Deg, 22mm ID

1шт.

9

86642485

CLAMP,1.31" - 2.25"

2шт.

10

84121298

SNAP RING,30mm Thk, Ext

1шт.

11

84244473

CHECK VALVE

1шт.

12

84236727

HYD TUBE,28 mm OD x 708.50, 102.30 mm L

Cooler In

1шт.

13

84236729

HYD TUBE,28 mm OD

Cooler Out

1шт.

14

84238526

CLAMP BRACKET

1шт.

15

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

17

43362

NUT,M8 x 1.25, Cl 10

2шт.

18

84248862

BRACKET

1шт.

19

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

20

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

21

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

22

84319208

BRACKET

1шт.

23

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

24

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

25

918369

BOLT,Hex, M8 x 12mm, Cl 8.8

2шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
