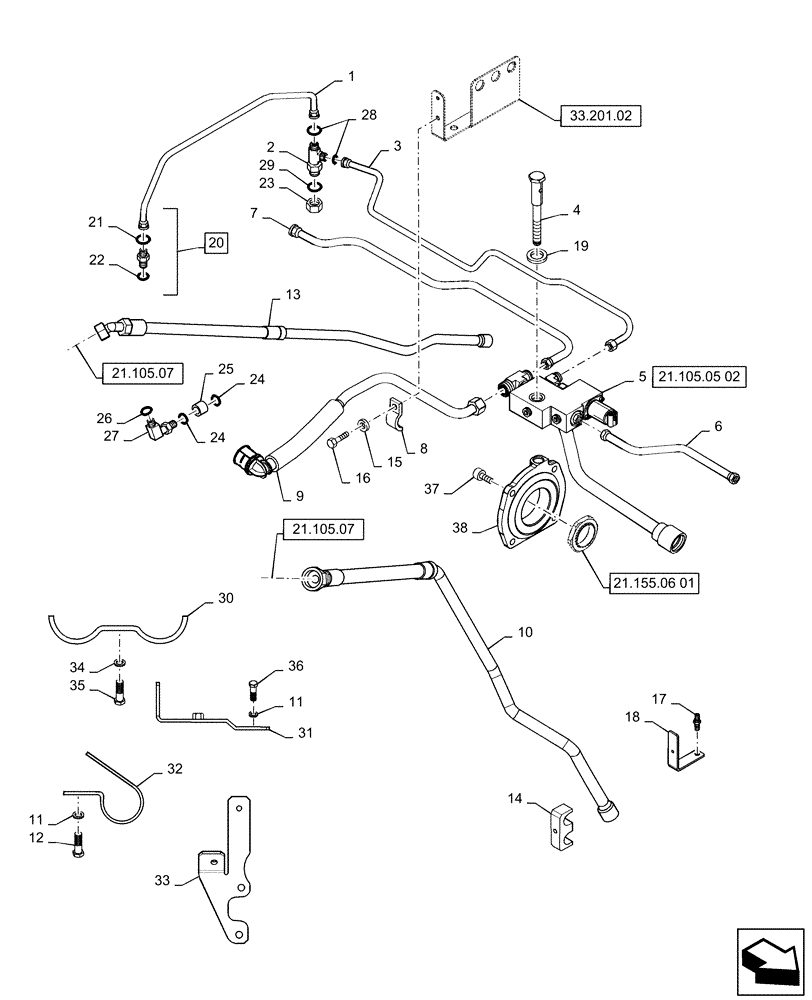

Запчасти Case IH MAGNUM 190 (21.105.05[01]) - TRANSMISSION LUBRICATION SYSTEM, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

1

87744058

HYD TUBE

Brake Lube

1шт.

2

87315465

HYD CONNECTOR,13/16"-16 ORFS x 13/16"-16 ORFS x M16 x 1.5 ORB

Incl 28, 29

1шт.

3

87676104

PIPE

Brake Lube

1шт.

4

87671358

BANJO BOLT

1шт.

5

87676058

MANIFOLD

ASSY

1шт.

6

87676073

HYD TUBE,16 mm OD x 301.5, 75.5 mm L

Front Lube

1шт.

7

87667420

HYD TUBE,16 mm DIA

Rear Lube

1шт.

8

5156414

CLAMP,20mm ID, 6.5mm Bolt Hole, J Type

1шт.

9

87659176

PIPE

From Filter

1шт.

10

84236727

HYD TUBE,28 mm OD x 708.50, 102.30 mm L

Cooler In

1шт.

11

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

12

918369

BOLT,Hex, M8 x 12mm, Cl 8.8

2шт.

13

84236729

HYD TUBE,28 mm OD

Cooler Out

1шт.

14

87608298

CLAMP BRACKET

1шт.

15

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

16

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

17

87316808

STUD,M8 x 1.25mm

M8 x M8

1шт.

18

87608297

BRACKET

1шт.

19

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

D=22

1шт.

20

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

M16 x 1.5, Incl 21, 22

1шт.

21

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

0.7 x 489 146

1шт.

22

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2.2 W x 13.3

1шт.

23

9840576

CAP,1" - 14 ORFS

16mm

1шт.

24

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1.78 x 12.42

2шт.

25

87487907

ORIFICE

1шт.

26

13397776

SNAP RING,M16, Int

1шт.

27

82037643

HYD CONNECTOR

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

29

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

30

84238526

CLAMP BRACKET

1шт.

31

84241305

BRACKET

1шт.

32

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

33

84319208

BRACKET

1шт.

34

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

35

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

36

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

If Used

2шт.

36

14307324

HEX SOC SCREW,M10 x 1.25 x 20mm, Cl 8.8, Full Thd

M10 x 1.25 x 20, If Used

2шт.

37

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

4шт.

38

87589206

MANIFOLD

1шт.
