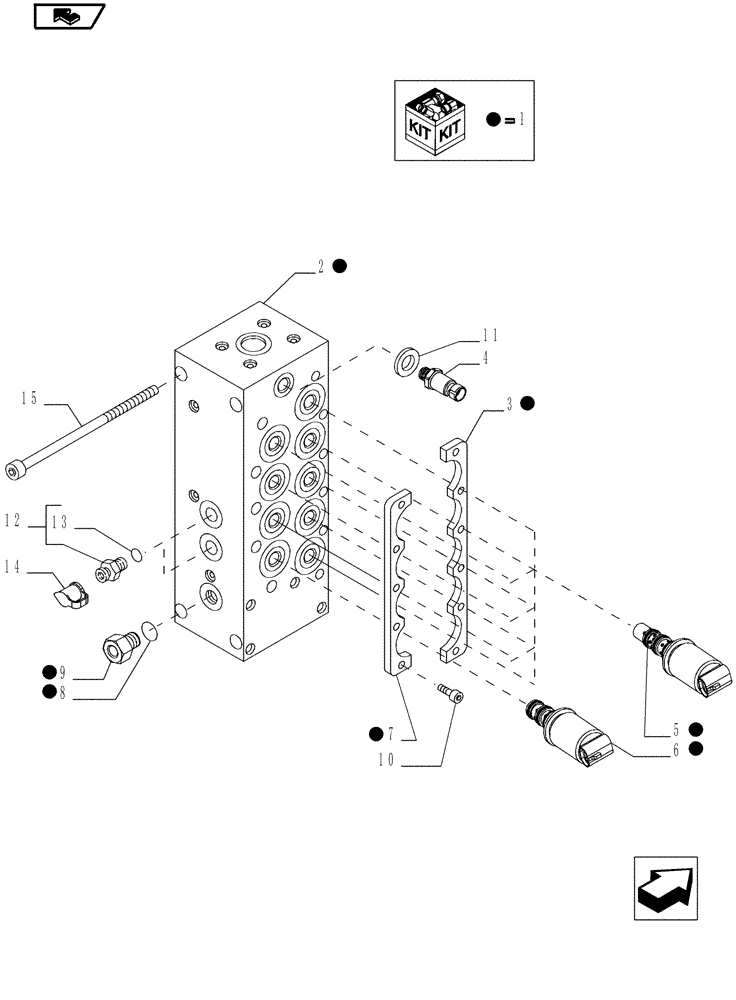

Запчасти Case IH MAGNUM 190 (21.105.04[04]) - TRANSMISSION 50KPH, HYDROSTATIC PUMP, CONTROL VALVE WITH SOLENOIDS, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

1

84123450

MANIFOLD VALVE

ASSY

1шт.

2

84125653

MANIFOLD VALVE

1шт.

3

47134564

FIXING PLATE

1шт.

4

87752203

PRESSURE SWITCH

1шт.

5

87739558

SOLENOID VALVE,14W

8шт.

5

87739558R

REMAN-SOLENOID

8шт.

5

87739558C

CORE-SOLENOID

Return Number

8шт.

6

87472229

CARTRIDGE

1шт.

7

87683403

PLATE

1шт.

8

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

9

84125654

HYD CONNECTOR

M10 x 1

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

2шт.

12

5185423

COUPLING

3шт.

13

14437785

O-RING,11.3mm ID x 2.4mm

3шт.

14

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

3шт.

15

14307124

SCREW,M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

4шт.
