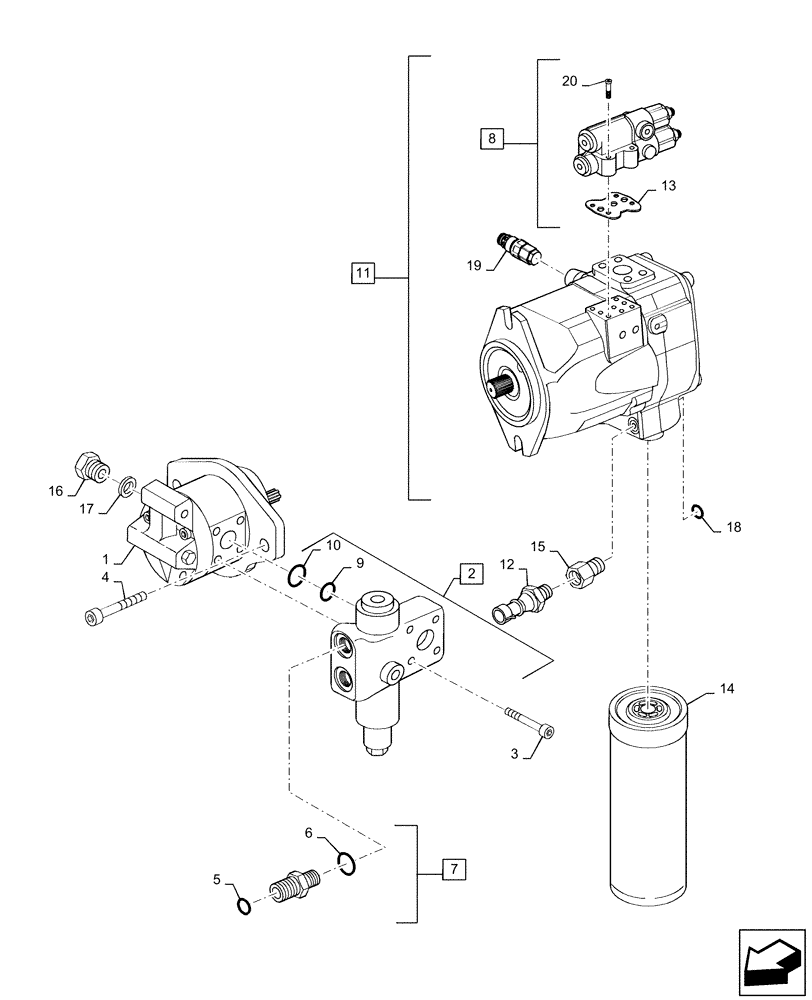

Запчасти Case IH MAGNUM 190 (21.105.02[02]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT, PUMPS & FILTER, WITH POWERSHIFT TRANSMISSION (21) - TRANSMISSION

1

84263360

HYDRAULIC PUMP,25.67 CC

25CC Steering Pump

1шт.

1

84263360R

REMAN-HYD PUMP

Magnum 180, Magnum 190, Magnum 210, All w/ Tier 4 Eng.,

1шт.

1

84263360C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

5188291

HYDRAULIC VALVE

1шт.

3

14305930

SCREW,M6 x 45mm, Cl 10.9

4шт.

4

14307621

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

1шт.

8

47616157

COMPENSATOR

Flow Compensating Valve, Incl 13, 20

1шт.

9

5190751

O-RING,2.5mm Thk x 18mm ID

1шт.

10

47127103

BACK-UP RING

1шт.

11

84184551

HYDRAULIC PUMP,56 CC

72CC/56CC Variable Displacement Pump for CCLS, Incl 8, 19

1шт.

84184551R

REMAN-HYD PUMP

MAGNUM 180, MAGNUM 190, MAGNUM 210 ALL TIER 4, ZARH06086 AND AFTER

1шт.

84184551C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

87564684

SWITCH ASSY

Oil Pressure

1шт.

13

84209778

GASKET

1шт.

14

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

1шт.

15

81866305

ADAPTER,1/4" NPT x M10 x 1 ORB

1шт.

16

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

Oil Pressure

1шт.

17

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

18

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

19

47511121

VALVE PRESSURE RELIE

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW Incl in 8

4шт.
