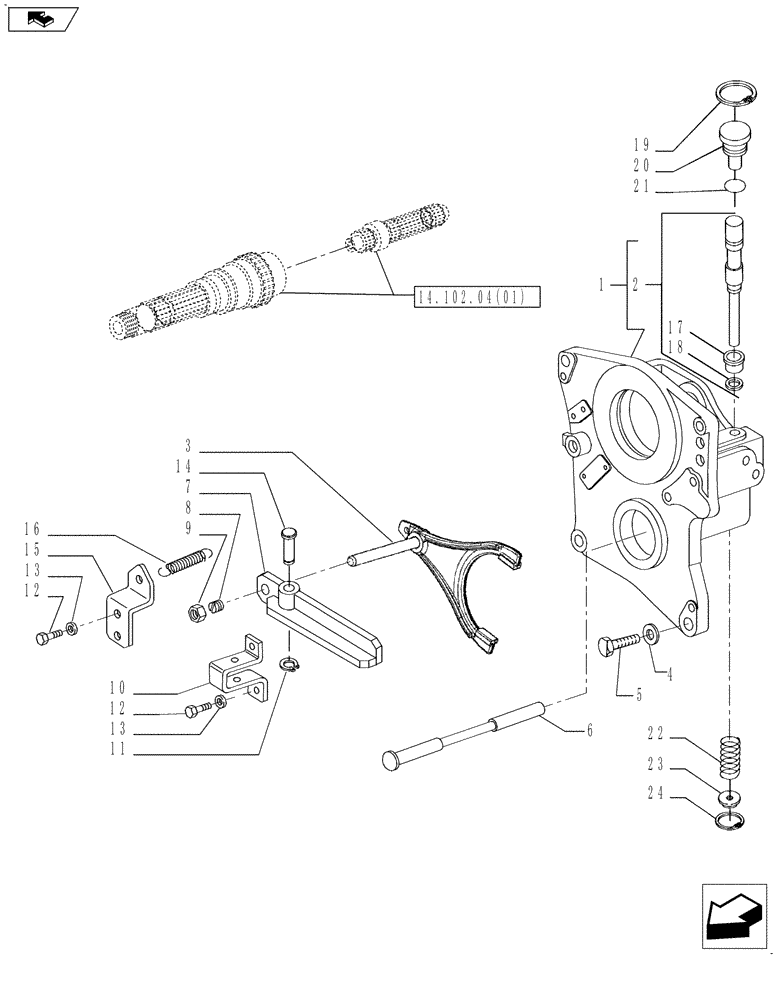

Запчасти Case IH MAGNUM 190 (14.102.04[02]) - PTO 540/1000 RPM, SUPPORT & ENGAGEMENT, WITH POWERSHIFT TRANSMISSION (14) - MAIN GEARBOX & DRIVE

1

84295659

SUPPORT

Inc. 2, 17, 18

1шт.

2

84271075

VALVE

1шт.

3

87600402

YOKE

1шт.

4

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

(Bolt dia. M12 x 24 x 2.8)

4шт.

5

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

6

87602927

PIN,10mm OD x 209mm L

1шт.

7

5171261

LEVER

1шт.

8

5171363

PIN

1шт.

9

16103614

THIN NUT,Thin, M12, 1.25 Pitch, Cl 04

1шт.

10

5179750

SUPPORT

1шт.

11

11065976

CIRCLIP,M10, Ext

1шт.

12

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

13

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

14

5179749

PIN,9.6mm OD x 43.5mm L

1шт.

15

87345949

SUPPORT

1шт.

16

4983677

SPRING

1шт.

17

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

1шт.

18

13397370

SNAP RING,M8, Int

1шт.

19

47127897

SNAP RING,M21.5, Ext

1шт.

20

5196030

PIN,20mm OD x 16.5mm L

1шт.

21

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.
