(14.100.03) - PTO 540E/1000 RPM, SHIELDS, WITH POWERSHIFT TRANSMISSION

Запчасти Case IH MAGNUM 190 (14.100.03) - PTO 540E/1000 RPM, SHIELDS, WITH POWERSHIFT TRANSMISSION (14) - MAIN GEARBOX & DRIVE

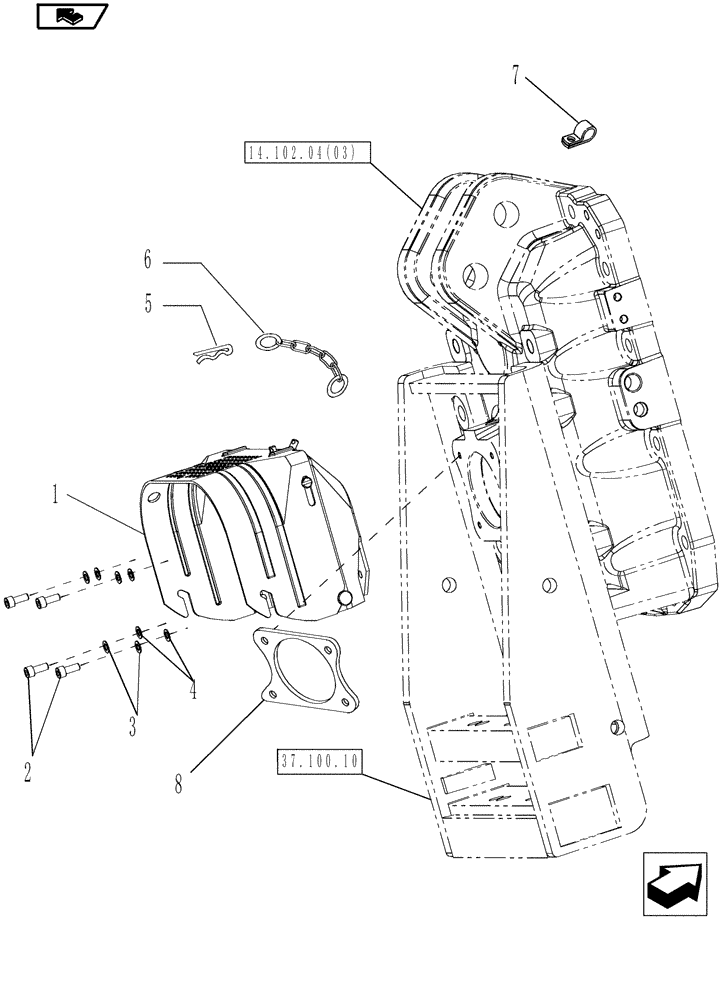

Схема запчастей Case IH MAGNUM 190 - (14.100.03) - PTO 540E/1000 RPM, SHIELDS, WITH POWERSHIFT TRANSMISSION (14) - MAIN GEARBOX & DRIVE
home
14.102.04(03)
5
8
3
37.100.10
6
4
2
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82032577

GUARD

1шт.

2

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

3

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

4

10569374

LOCK WASHER,M8

4шт.

5

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

6

82024033

CHAIN

1шт.

7

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

1шт.

8

47131825

GUARD

Guard

1шт.
