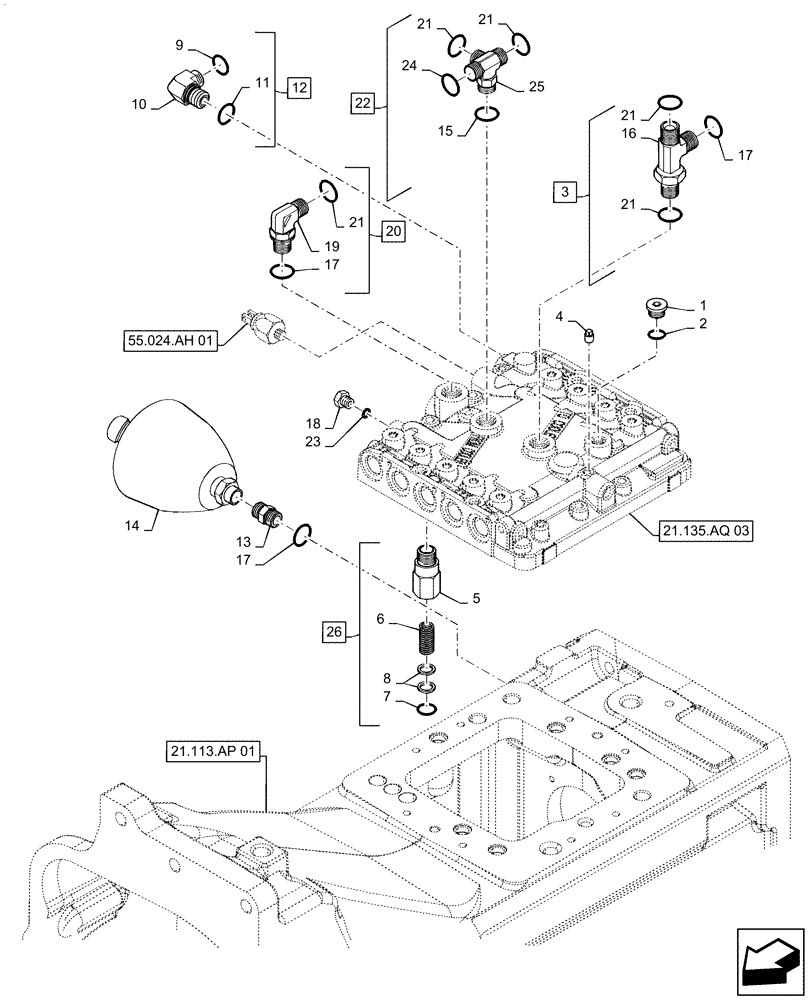

Запчасти Case IH MAGNUM 180 (21.135.AQ[04]) - TRANSMISSION CONTROL VALVE, POWERSHIFT (21) - TRANSMISSION

1

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

2

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

3

5187064

TEE

ASSY, Incl 16, 17 (Qty 1), 21 (Qty 2)

1шт.

4

14324011

PLUG,Taper Pipe, Sq Hd, M10 x 1 x 14mm, Cl 5.8

1шт.

5

5198608

VALVE

1шт.

6

5114402

SPRING,Compression, 11mm OD x 35.5mm L

1шт.

7

11057476

SNAP RING,M16, Int

1шт.

8

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

9

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 12

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

ASSY, Incl 9 - 11

1шт.

13

5186462

HYD CONNECTOR,M18 x 1.5 x 43.5mm

1шт.

14

5195043

ACCUMULATOR,0.75L

1шт.

15

14438185

O-RING,24mm ID x 3mm

1шт.

16

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

18

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 20

1шт.

20

5194728

90 ELBOW

ASSY, Incl 17 (Qty 1), 21 (Qty 1)

1шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

22

87316458

HYD CONNECTOR

ASSY, Incl 15, 21 (Qty 2), 24

1шт.

23

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

24

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

25

NSS

NOT SOLD SEPARAT

Connector, Incl in 22

2шт.

26

5198572

VALVE

Pressure Relief, ASSY, Incl 5 - 8

1шт.
