Запчасти Case IH MAGNUM 180 (90.160.AR[02]) - VAR- 449059 - CAB, FLOOR MATS, LUXURY - BSN - ZERH08099 (90) - PLATFORM, CAB, BODYWORK AND DECALS

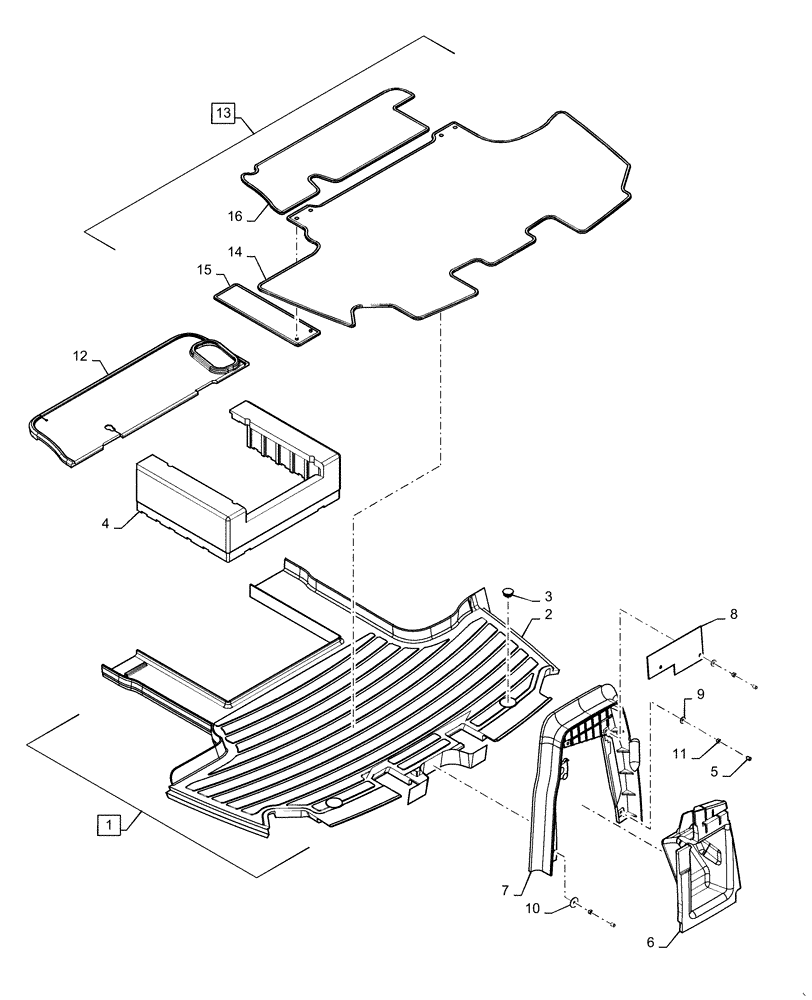

Схема запчастей Case IH MAGNUM 180 - (90.160.AR[02]) - VAR- 449059 - CAB, FLOOR MATS, LUXURY - BSN - ZERH08099 (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
11
7
5
10
13
8
9
4
2
1
12
3
16
6
14

Артикул

Название

Примечание

Количество

1

84137774

FLOOR MAT

Assy, w/Plugs; Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

MAT, FLOOR; Incl in 1

1шт.

3

281848A1

PLUG

Cab Mount Hole Cover

2шт.

4

254325A3

SKIRT

Seat Deck, Black

1шт.

5

84366057

CAP,7.92mm ID x 10.66mm OD x 12.7mm L

Vinyl

5шт.

6

84593174

COVER

Inner Firewall

1шт.

7

84594241

RUBBER SEAL

Outer Firewall

1шт.

8

84594187

PLATE

Blanket Support

1шт.

9

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

3шт.

10

495-81121

WASHER,.344" x 1 1/2" x .060"

2шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

12

87484428

FLOOR MAT

Floor Recirculation Shelf, Serial Range: -ZERH08099

1шт.

12

87442168

COVER

Floor Recirculation Shelf, Start Serial: ZERH08100

1шт.

13

87417637

FLOOR MAT

Assy, Luxury; Incl 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

CARPET, FRONT FLOOR; Incl in 13

1шт.

15

NSS

NOT SOLD SEPARAT

MAT, SEAT SIDE; Incl in 13

2шт.

16

NSS

NOT SOLD SEPARAT

MAT, REAR SHELF CARPET; Incl in 13

1шт.

Выбрано товаров: 17
