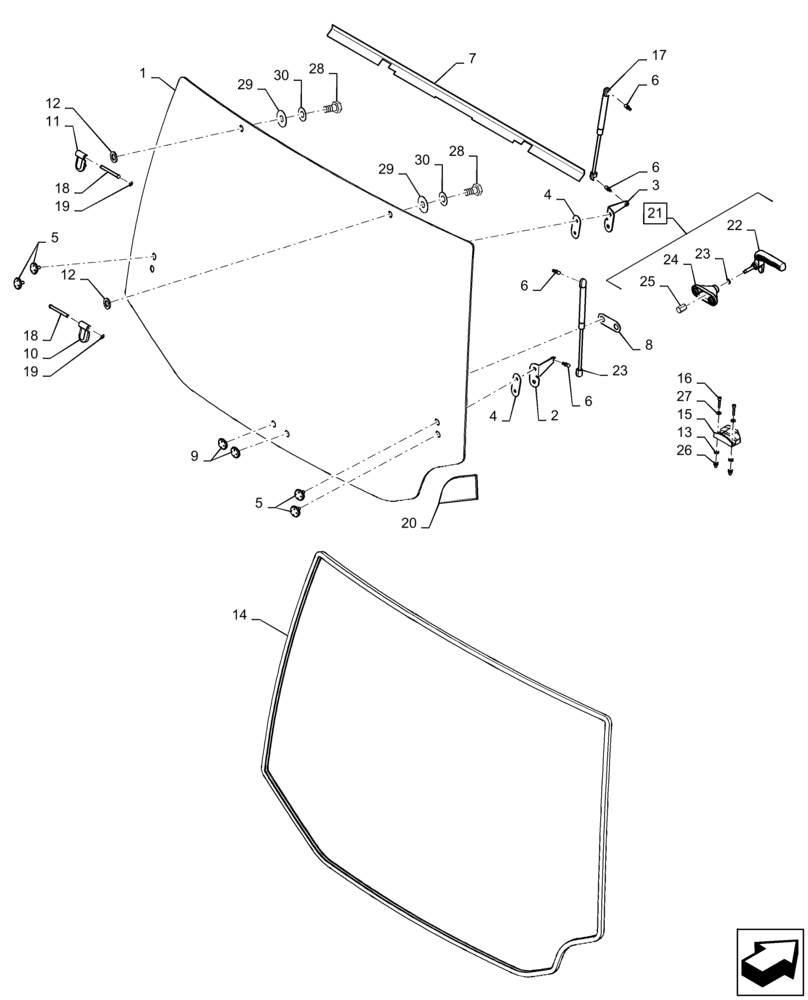

Запчасти Case IH MAGNUM 180 (90.156.AB) - WINDOW, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87309738

GLASS,Rear Window

Deluxe Cab (VAR- 420012, 449058)

1шт.

1

87309742

CAB GLASS

Tinted, Luxury Cab (VAR- 449059)

1шт.

2

256810A2

BRACKET

Right Hand

1шт.

3

256809A2

BRACKET

Left Hand

1шт.

4

222787A2

PAD

Gas Strut Bracket to Glass

2шт.

5

198916A2

CAP,M8 x 20, Black

With Foam Ring and M8x20 Bolt

4шт.

6

K303756

BALL STUD,M6 x 1

6mm

4шт.

7

359321A1

GUARD

Dust Protection

1шт.

8

220935A3

PAD

Clamping Plate

1шт.

9

198913A3

BUTTON

Cap, With Foam Ring and M6x14 Bolt

2шт.

10

176246A2

HINGE

Right Hand

1шт.

11

176245A2

HINGE

Left Hand

1шт.

12

180361A2

WASHER,18mm ID x 35mm OD x 3mm Thk

Sealing

2шт.

13

87309034

SPACER

Striker Plate

2шт.

14

87534532

SEALING STRIP

Rear Window Edge

1шт.

15

186149A4

STRIKER PLATE

Rear Window Latch

1шт.

16

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

2шт.

17

252550A2

GAS STRUT

Cylinder, Gas Spring, Rear Window

2шт.

18

1535323C1

PIN,8mm OD x 78.5mm L

Hinge, Rear Window

2шт.

19

800-437

CIRCLIP,M7

2шт.

20

47585497

GROMMET

Implement Access

1шт.

21

230009A4

HANDLE

Incl 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

HANDLE, Incl in 21

1шт.

23

906056R1

WAVE WASHER

Rear Window Latch

1шт.

24

193046A1

BRACKET

Support

1шт.

25

357325A1

NUT

Special

1шт.

26

322073A1

NUT

Riveted, M6

2шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

2шт.

29

87325114

RUBBER WASHER

Hinge to Glass, Rear Window

2шт.

30

87542959

WASHER,6.15mm ID x 30mm OD x 1.5mm Thk

2шт.
