Запчасти Case IH MAGNUM 180 (10.400.BE[01]) - RADIATOR & RELATED PARTS (10) - ENGINE

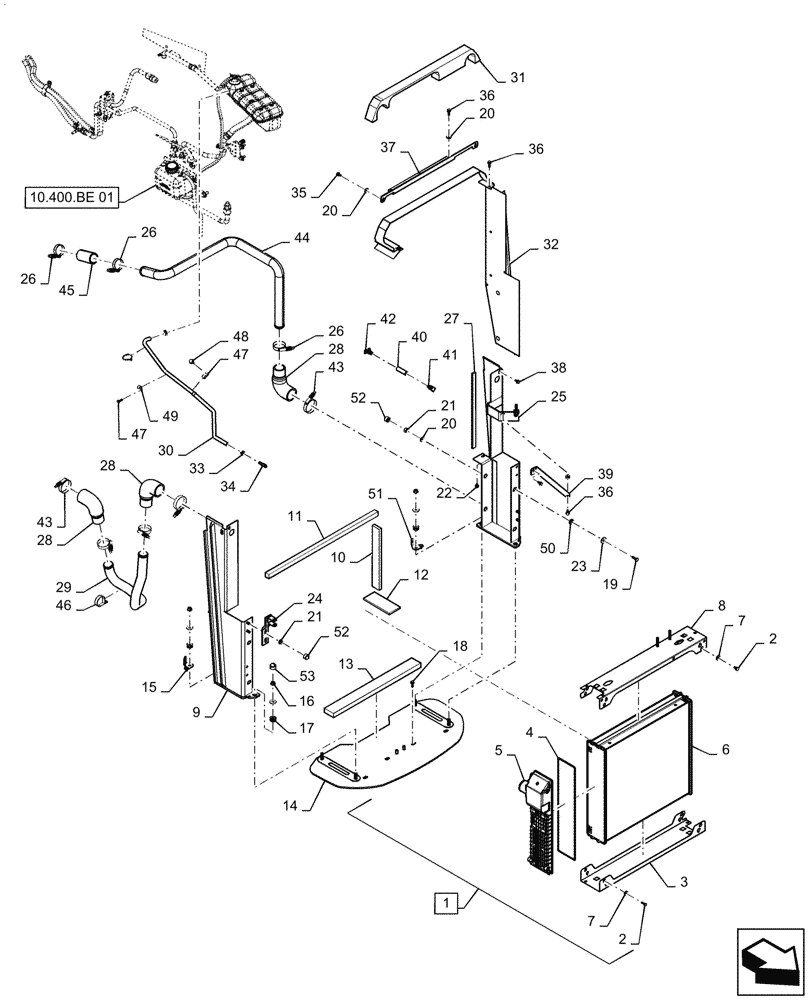

Схема запчастей Case IH MAGNUM 180 - (10.400.BE[01]) - RADIATOR & RELATED PARTS (10) - ENGINE
5
10.400.be 01
36
52
28
40
11
36
42
26
36
16
32
12
38
47
6
18
51
14
35
1
28
34
52
53
27
47
21
46
24
28
44
50
29
15
33
37
2
26
26
41
20
2
31
7
45
13
9
23
49
8
30
4
43
20
43
7
3
10
25
21
22
20
19
39
48
17

Артикул

Название

Примечание

Количество

1

87490773

RADIATOR

5 Row, 10 FPI, 595 BH; Incl 2 - 8

1шт.

2

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

3

87390682

CHANNEL

Radiator Bottom

1шт.

4

87441598

GASKET

Radiator

2шт.

5

87454646

TANK

Radiator

2шт.

6

NSS

NOT SOLD SEPARAT

RADIATOR CORE; Incl in 1

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

8

87490772

CHANNEL

Radiator Top

1шт.

9

87621960

SUPPORT

Cooling, RH

1шт.

10

87356358

SEAL

Charge Air, Cooler Side

2шт.

11

87356124

SEAL

Radiator To Charge Air Cooler

1шт.

12

87356126

SEAL

Side Posts

2шт.

13

87356125

SEAL

Bottom Plate

1шт.

14

87735077

SUPPORT

Cooling Package

1шт.

15

87443609

BRACKET

RH Fixed Panel, Front

1шт.

16

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

17

84244058

RUBBER MOUNTING

4шт.

18

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

20

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

9шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

22

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

2шт.

23

495-81148

WASHER,7/16" x 1 1/4" x .134"

6шт.

24

87332352

BRACKET

Keeper, Oil Cooler

1шт.

25

47454918

BRACKET

Support, Cooling, LH

1шт.

26

254026A1

HOSE CLAMP,44.45mm - 66.67mm

5шт.

27

47457937

SEALING STRIP

Radiator To Shroud

4шт.

28

87742184

RADIATOR HOSE,44.50 mm ID, 56.00 mm ID x 122.50 mm, SAE 20R4 Class D1

Coolant

3шт.

29

47417123

TUBE

Radiator To Engine

1шт.

30

47543178

HOSE

Radiator Deaeration

1шт.

31

87456357

INSULATOR

Air Duct

1шт.

32

87746877

BRACKET

Sealing

1шт.

33

1348264C1

HOSE CLAMP

4шт.

34

87016896

FITTING,90 Degree, 3/8" Hose x 1/4" NPTF, Barbed

1шт.

35

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

36

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

5шт.

37

87490770

BRACKET

Upper Shroud Support

1шт.

38

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

39

87313142

SUPPORT

Oil Cooler Hinge Support

1шт.

40

87350039

TUBE,19.10 mm OD x 60 mm L

Radiator Drain

1шт.

41

217-1225

ELBOW,90 Degree, 1/4"-18 Male

1шт.

42

217-92

COCK

1шт.

43

L115548

CLAMP,57.15mm - 79.38mm

Hose 2.250/3.125 Constant Torque

3шт.

44

84574773

TUBE

Engine To Radiator

1шт.

45

87577140

RADIATOR HOSE,44.50mm ID x 100mm

1шт.

46

515-21444

CLAMP,1 3/4", Insul, 1/4" Bolt

1шт.

47

87532034

CLAMP,15.9mm, Coat, 7.1mm Bolt Hole, P Type

15.9 mm

2шт.

48

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

49

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

50

87456528

TUBE SPACER

CACS Mounting

4шт.

51

87443611

BRACKET

LH Fixed Panel, Front

1шт.

52

48052841

CAP

Nut, Plastic, M8

8шт.

53

48052842

CAP

Nut, Plastic, M10

4шт.

Выбрано товаров: 53
