(90.150.AJ[03]) - CAB, SUSPENSION

Запчасти Case IH MAGNUM 180 (90.150.AJ[03]) - CAB, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

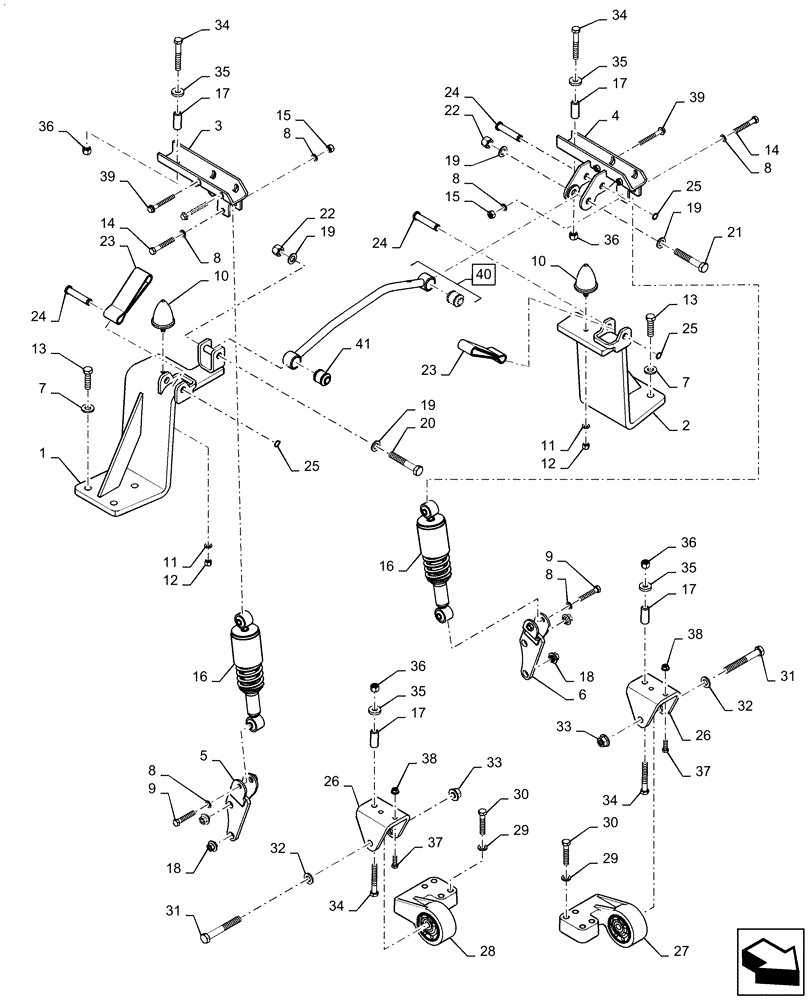

Схема запчастей Case IH MAGNUM 180 - (90.150.AJ[03]) - CAB, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
34
34
37
14
40
17
34
9
8
25
14
24
23
35
39
39
18
32
19
19
34
12
15
24
27
23
7
35
5
33
17
13
30
11
9
32
16
22
36
26
36
2
8
38
26
8
29
3
35
25
15
8
41
21
22
37
8
16
8
18
38
7
24
19
12
13
20
33
28
31
10
36
30
17
19
36
31
35
25
10
6
11
17
29
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84122742

BRACKET

RH Rear Cab Mount

1шт.

2

84122743

BRACKET

LH Rear Cab Mount

1шт.

3

84227120

SUPPORT

LH Rear Cab

1шт.

4

84227109

SUPPORT

RH Rear Cab

1шт.

5

84522875

BRACKET

RH Damper Mounting

1шт.

6

84522873

BRACKET

LH Strut Mounting

1шт.

7

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

8шт.

8

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

6шт.

9

86518210

BOLT,Hex, M14 x 75mm, Cl 8.8

2шт.

10

82025784

RUBBER PAD,M12 x 1.75

Bumper

2шт.

11

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

12

12577511

NUT,M12 x 1.75, Cl 8

2шт.

13

47463267

BOLT,Hex, M18 x 65mm, Cl 10.9

M18 x 65 FULL 10.9 AND

8шт.

14

86509599

BOLT,Hex, M14 x 90mm, Cl 8.8

2шт.

15

12577311

LOCK NUT,Prevailing Torque, M14 x 2.0 x 16.6mm, Cl8, ZND

2шт.

16

47630745

STRUT

Coilover 24 N/MM

2шт.

17

184262A1

SPACER

Cab Mounting Tube

4шт.

18

84134918

FLANGE NUT,Hex, M16 x 1.5

4шт.

19

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

20

86508350

BOLT,Hex, M20 x 110mm, Cl 10.9

1шт.

21

827-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

1шт.

22

84010564

NUT,Prev Torque, M20 x 2.5 x 23mm, Cl 10

P/T NON-MTL M20 x 22.8 10 ZND

2шт.

23

87357896

STRAP,165mm L

Securing

2шт.

24

87543582

PIN,20mm OD x 104mm L

Grooved

4шт.

25

11066871

CIRCLIP,M20

4шт.

26

87746216

BRACKET

Front Cab Mount

2шт.

27

82032678

SUPPORT

LH Front Isolator Housing

1шт.

28

82032679

SUPPORT

RH Front Isolator Housing

1шт.

29

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

30

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

8шт.

31

9849411

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

2шт.

32

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

2шт.

33

829-2420

FLANGE NUT,M20 x 2.5, Flg, Cl 10

2шт.

34

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

4шт.

35

897278H1

WASHER,16.5mm ID x 40mm OD x 8mm Thk

16.5 x 40 x 8 MM

4шт.

36

86012007

LOCK NUT,M16 x 2, Cl 10

4шт.

37

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

38

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

39

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

4шт.

40

87591850

TIE-ROD,2 x 38.9mm ID

Assy; Incl 41

1шт.

41

82039256

BUSHING,20mm ID x 50mm OD x 49.95mm L

Tie Rod Bearing

2шт.
