Запчасти Case IH MAGNUM 180 (10.304.AJ[02]) - ENGINE, OIL FILLER, DRAIN VALVE - ASN ZHRH01199 (10) - ENGINE

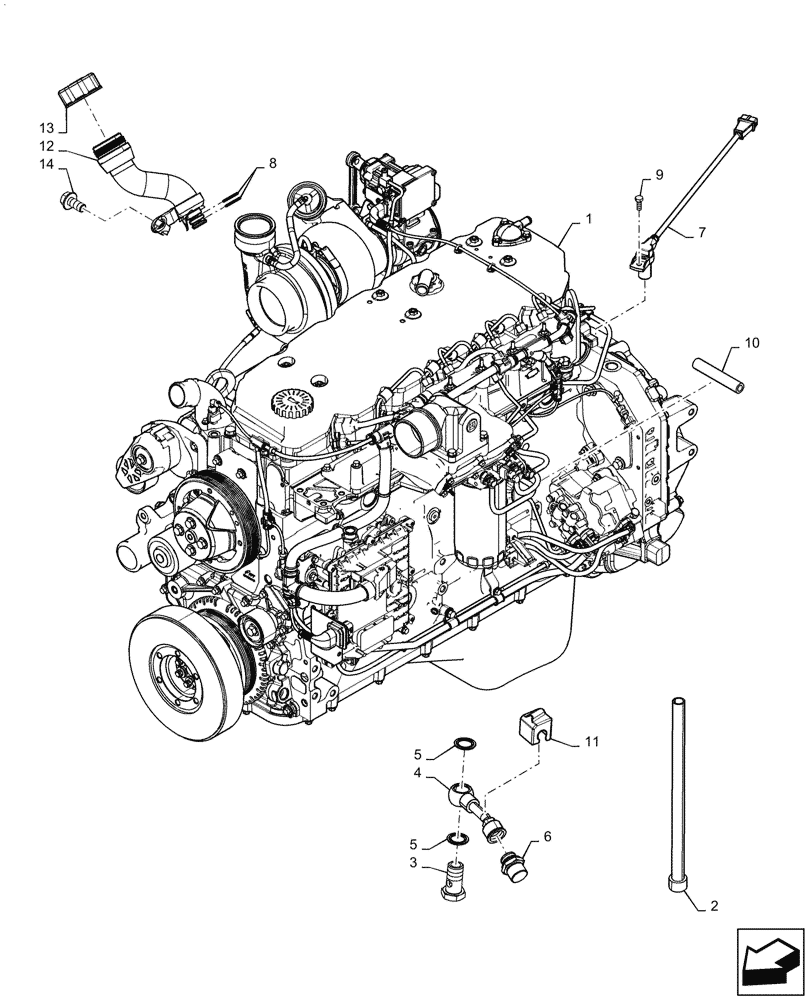

Схема запчастей Case IH MAGNUM 180 - (10.304.AJ[02]) - ENGINE, OIL FILLER, DRAIN VALVE - ASN ZHRH01199 (10) - ENGINE
12
6
4
3
5
11
2
10
9
8
13
1
14
7
5

Артикул

Название

Примечание

Количество

1

47519644

ENGINE

Service NEF T4B 180-200 HP, Magnum 180, 200

1шт.

1

47519650

ENGINE

Service NEF T4B 200-240 HP, Magnum 220, 240

1шт.

2

48013538

DRAIN

Tool

1шт.

3

87567452

BANJO BOLT

1шт.

4

47949644

BANJO FITTING

Oil Drain

1шт.

5

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

2шт.

6

48013534

VALVE

Oil Drain

1шт.

7

47766973

SENSOR

Engine Speed, Hall Effect

1шт.

8

86637770

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

9

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

10

84253254

PROTECTIVE COVER

Sleeve, Fuel Line

1шт.

11

84535332

BLOCK

Engine Oil Drain Dampener

1шт.

12

84357886

FILLER

Engine Oil

1шт.

13

87674802

CAP,7mm ID x 9mm OD x 12mm L

Engine Oil Filler

1шт.

14

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

Выбрано товаров: 15
