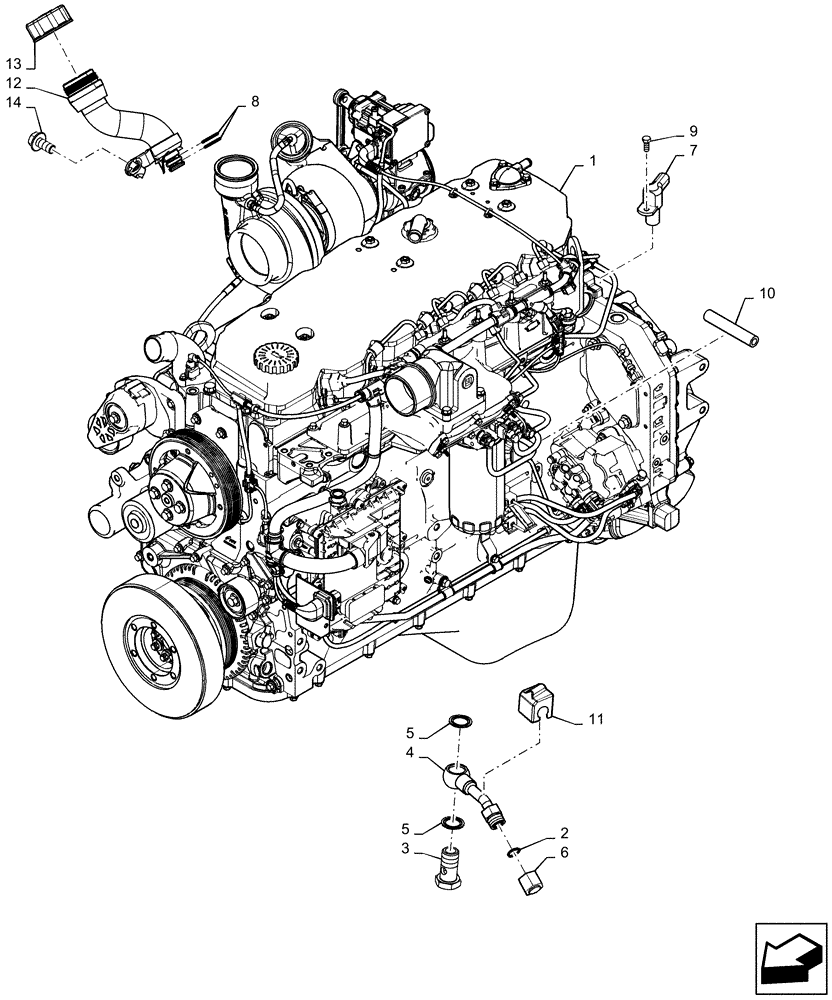

Запчасти Case IH MAGNUM 180 (10.304.AJ[01]) - ENGINE, OIL FILLER, DRAIN VALVE - BSN ZHRH01199 (10) - ENGINE

1

47519644

ENGINE

Service NEF T4B 180-200 HP, Magnum 180, 200

1шт.

1

5801731940ER

REMAN-REPLACEMENT EN

Replacement Engine For 47519644

1шт.

1

5801731940EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

1

47519650

ENGINE

Service NEF T4B 200-240 HP, Magnum 220, 240

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

87567452

BANJO BOLT

1шт.

4

84201016

TUBE

Oil Drain

1шт.

5

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

2шт.

6

701-905

CAP,13/16" - 16

1шт.

7

47766973

SENSOR

Engine Speed, Hall Effect

1шт.

8

86637770

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

9

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

10

84253254

PROTECTIVE COVER

Sleeve, Fuel Line

1шт.

11

84535332

BLOCK

Engine Oil Drain Dampener

1шт.

12

84357886

FILLER

Engine Oil

1шт.

13

87674802

CAP,7mm ID x 9mm OD x 12mm L

Engine Oil Filler

1шт.

14

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.
