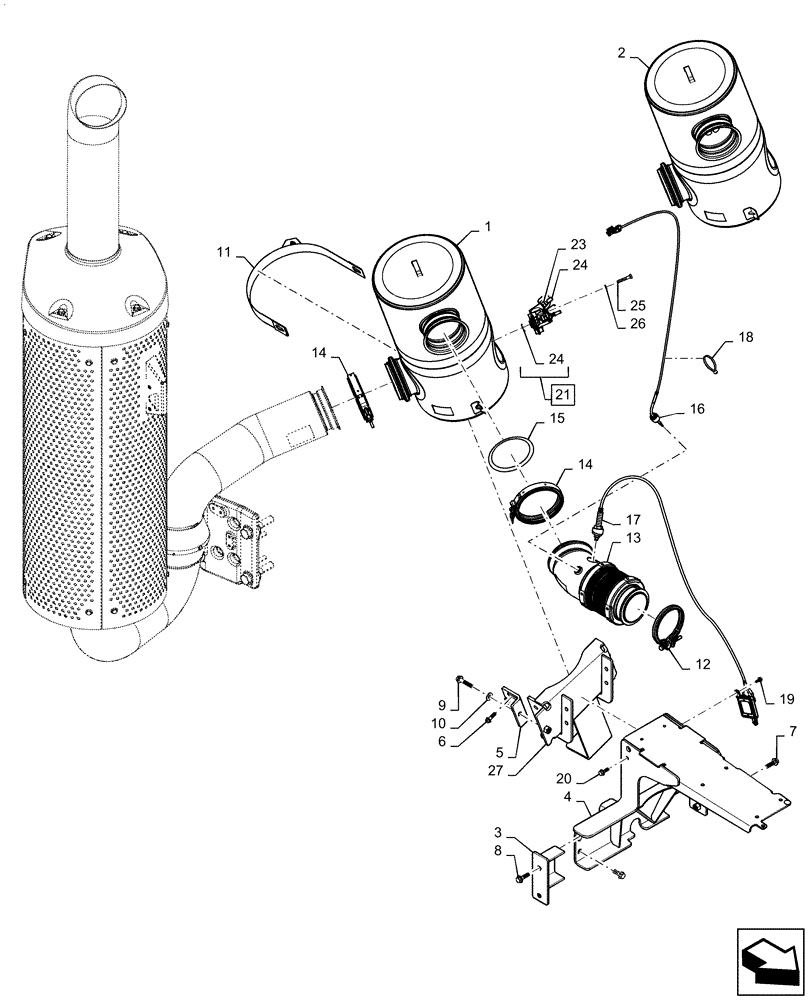

Запчасти Case IH MAGNUM 180 (10.254.AI[02]) - EXHAUST SYSTEM - TIER 4B (10) - ENGINE

1

47447241

CATALYST

3.8L, Muffler Reference Code R-9.50-96.2-130-19-19

1шт.

Used on Models 180 - 220

1шт.

2

47447240

CATALYST

4.6L, Muffler Reference Code R-9.50-95.4-130-19-19

1шт.

Used on Model 240 Only

1шт.

3

47533380

BRACKET

Exhaust DOC, RH

1шт.

4

47533516

BRACKET

1шт.

5

47569843

BRACKET

DOC Strap, Exhaust

1шт.

6

87564735

BOLT,Hex Flg, M10 x 35mm, Cl 10.9, Full Thd

2шт.

7

854-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

6шт.

8

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

9

627-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9, Full Thd

1шт.

10

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

11

47547555

SECURING STRAP

DOC, Exhaust

1шт.

12

47423211

CLAMP,118mm - 124mm

Turbo, NEF, Band

1шт.

13

47430052

BELLOWS

Flap To DOC

1шт.

14

47368239

CLAMP

4.5 Marmon, TIER 4B

1шт.

15

47368248

GASKET,1.3mm Thk

4.5 Exhaust

1шт.

16

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust Temperature

1шт.

17

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

NOX

1шт.

18

86566989

CABLE TIE,208mm L

1шт.

19

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

21

47506932

INJECTOR, EMISSIONS

DM 2.5, 7.2 KG/HR; Incl 24

1шт.

21

47506932R

REMAN-INJEC EMISSION

Denox

1шт.

21

47506932C

CORE-INJEC EMISSION

Return Number

1шт.

22

47364264

REPAIR KIT

Coolant Connector DENOX DM

2шт.

23

47364085

REPAIR KIT

Protective Cap DENOX DM

1шт.

24

47364140

GASKET,30mm OD, Rubber, Black

DENOX DM

1шт.

25

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

3шт.

26

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

27

47569719

BRACKET

DOC Support

1шт.
