Запчасти Case IH MAGNUM 180 (10.001.AK[02]) - VAR- 429327 - ENGINE MOUNTING PARTS, STANDARD - ASN ZERH08100 (10) - ENGINE

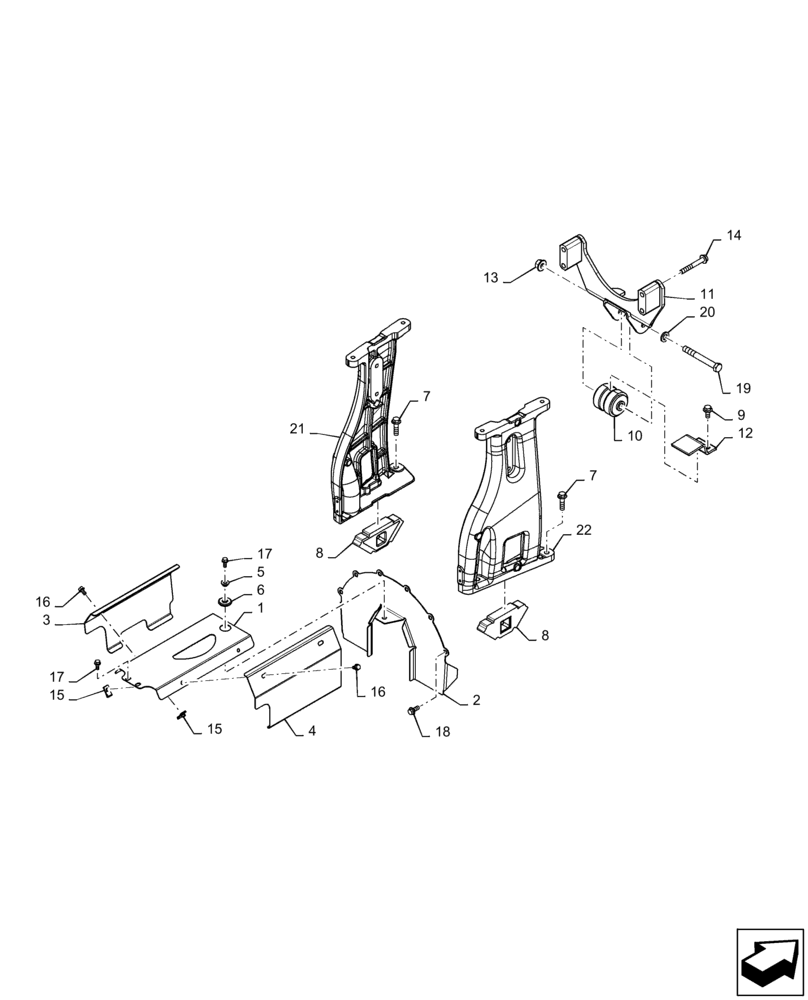

Схема запчастей Case IH MAGNUM 180 - (10.001.AK[02]) - VAR- 429327 - ENGINE MOUNTING PARTS, STANDARD - ASN ZERH08100 (10) - ENGINE
11
16
15
18
6
21
14
20
17
10
1
17
8
5
16
15
9
2
4
3
12
22
13
7
19
8
7

Артикул

Название

Примечание

Количество

1

47717305

SHIELD

Driveshaft Upper

1шт.

2

47687922

COVER

Engine Flywheel

1шт.

3

47689460

SHIELD

LH Side

1шт.

4

47690159

SHIELD

RH Side

1шт.

5

84293069

COLLAR

1шт.

6

87035867

GROMMET,5/8" ID x 1 1/4" Groove Dia

1шт.

7

87018388

BOLT,Hvy Hex, M12 x 45mm, Cl 10.9

4шт.

8

251991A1

SUPPORT

Engine Mount, Rear

2шт.

9

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

10

247991A1

RUBBER MOUNTING,76.2mm OD x 86.4mm L

Snubber, Front Engine Mount

1шт.

11

87727948

SUPPORT

Front Engine Mount

1шт.

12

297527A1

CLAMP

Engine Mount

1шт.

13

825-2416

FLANGE NUT,M16 x 2, Flg, Cl 8

1шт.

14

854-12090

BOLT,Hvy Hex, M12 x 90mm, Cl 10.9

4шт.

15

833-41308

SPRING NUT,M8, U

4шт.

16

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

7шт.

18

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

6шт.

19

392531

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

1шт.

20

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

21

47658411

SUPPORT

Hood Lower LH

1шт.

22

47658412

SUPPORT

Hood Lower RH

1шт.

Выбрано товаров: 22
