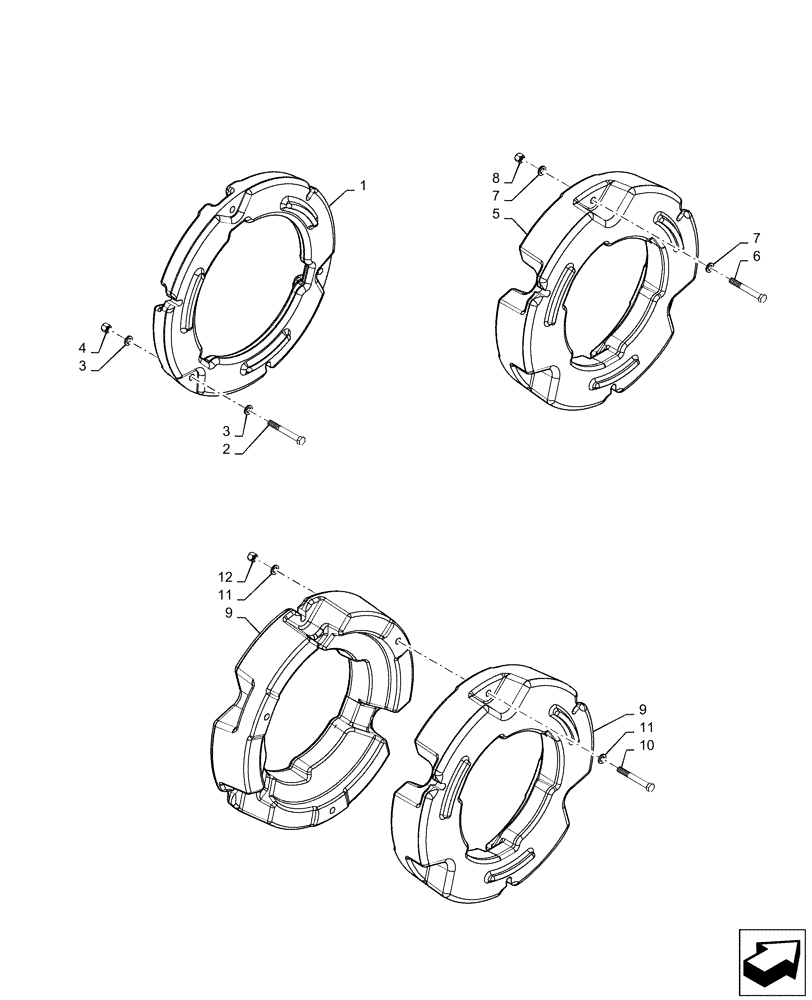

Запчасти Case IH MAGNUM 180 (39.140.AL) - VAR- 420257, 429287, 429336 - REAR WHEEL WEIGHTS (39) - FRAMES AND BALLASTING

1

405828A1

WHEEL WEIGHT

200LBS, Steel Wheel

2шт.

2

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

Hex HD, M16 x 130 Cl 10.9

6шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

4

832-10416

NUT,M16 x 2, Cl 8

6шт.

Refs 1 - 4 are for Var- 420257

1шт.

5

87310406

WHEEL WEIGHT

500LBS, Steel Wheel

2шт.

6

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

Hex HD, M16 x 130 Cl 10.9

6шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

8

832-10416

NUT,M16 x 2, Cl 8

6шт.

Refs 5 - 8 are for Var- 429287

1шт.

9

87310406

WHEEL WEIGHT

500LBS, Steel Wheel

4шт.

10

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

Hex HD, M16 x 130 Cl 10.9

12шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

12

832-10416

NUT,M16 x 2, Cl 8

12шт.

Refs 9 - 12 are for Var- 429336

1шт.
