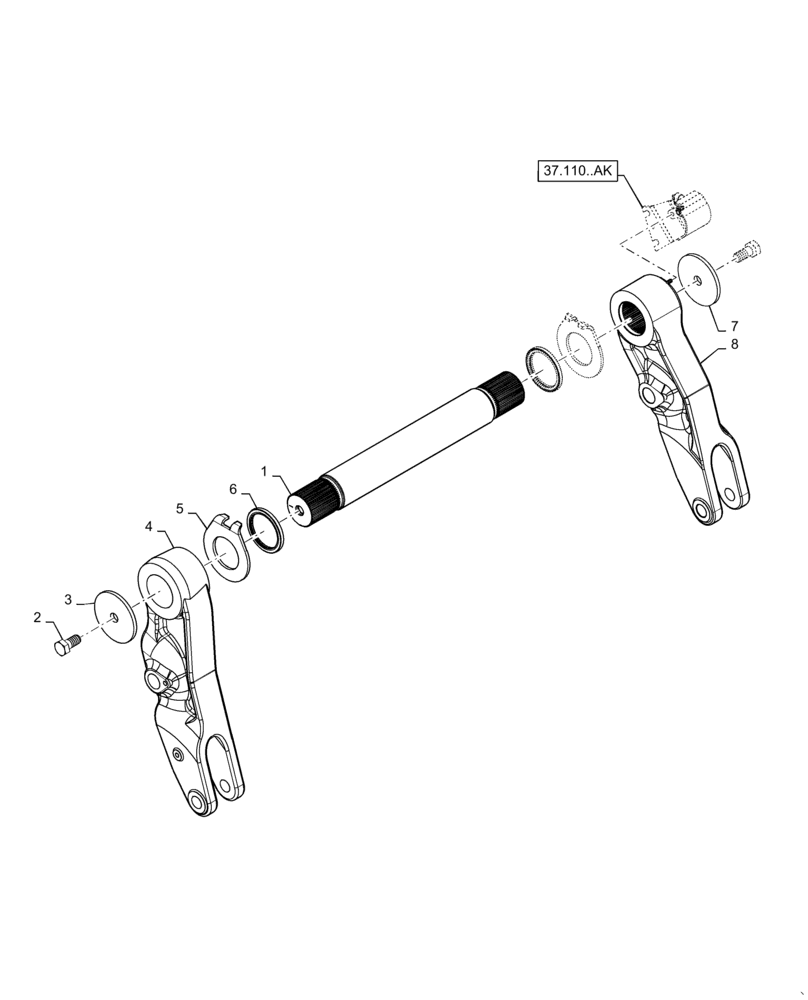

Запчасти Case IH MAGNUM 180 (37.110.AQ[01]) - ROCKSHAFT ASSY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5198501

ROCKSHAFT,626mm L

1шт.

2

15987924

BOLT,Hex, M20 x 1.5 x 40mm, Cl 8.8

M20 x 1.5 x 40 Full 8.8 DAC

2шт.

3

5185967

WASHER,21mm ID x 116mm OD x 8mm Thk

Rockshaft

1шт.

4

5198417

LIFT ARM

LH

1шт.

5

5185953

SPACER,75.3mm ID x 130mm OD x 6mm L

Rockshaft

2шт.

6

5185955

SEAL,80mm ID x 100mm OD x 8mm Thk

Hydraulic Lift Arm

2шт.

7

5198505

WASHER,20.5mm ID x 115mm OD x 8mm Thk

Rockshaft

1шт.

8

5198416

LIFT ARM

RH

1шт.
