Запчасти Case IH MAGNUM 180 (35.300.AB[01]) - HYDRAULIC OIL COOLER LINES - PST (35) - HYDRAULIC SYSTEMS

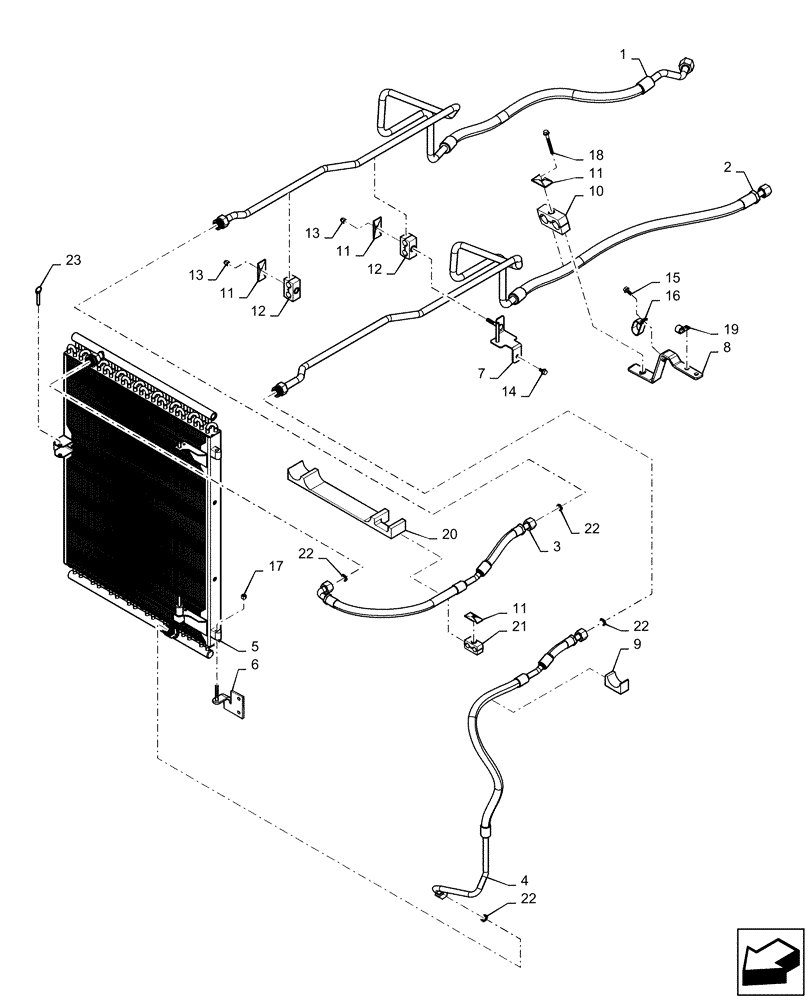

Схема запчастей Case IH MAGNUM 180 - (35.300.AB[01]) - HYDRAULIC OIL COOLER LINES - PST (35) - HYDRAULIC SYSTEMS
23
11
12
21
5
22
3
13
11
18
11
19
20
22
15
6
2
16
7
8
1
12
4
9
13
17
10
22
22
14
11

Артикул

Название

Примечание

Количество

1

47449176

HYD TUBE

Oil Supply, PST

1шт.

2

47449177

HYD TUBE

Oil Return, PST

1шт.

3

47449194

HYDRAULIC HOSE

Oil Cooler Supply

1шт.

4

47449198

HYDRAULIC HOSE

Oil Cooler Return

1шт.

5

84217213

OIL COOLER

Steel

1шт.

6

87603124

BRACKET

Lower Hinge

1шт.

7

47449019

BRACKET

HVAC and Oil Routing

1шт.

8

47451604

BRACKET

Transmision Oil Cooler Line

1шт.

9

87456576

INSULATOR,45mm W x 81mm L x 40mm Thk

Oil Cooler Plumbing

1шт.

10

412626A1

CLAMP

Tube Hyd

1шт.

11

1347127C1

PLATE

Tube Clamp

4шт.

12

87000140

CLAMP,Tube, 19.05mm

2 Hole 19.05-19.05 mm Dia Ribbed

2шт.

13

87301462

CROWN NUT,Crown, M8, Cl6

2шт.

14

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

15

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

16

470375C1

CLAMP,1", Insul, 3/8" Bolt

Hose

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

18

845-8075

BOLT,Hvy Hex, M8 x 75mm, Cl 8.8

1шт.

19

516-22158

CLAMP,J, 11/16" Insul, 5/16" Bolt

1шт.

20

47431051

SEAL

Oil Cooler Plumbing

1шт.

21

118576A1

CLAMP

2 Hole

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

23

86017630

HITCH PIN,9.53mm OD x 50.55mm L

1шт.

Выбрано товаров: 23
