Запчасти Case IH MAGNUM 180 (35.204.BE[05]) - REMOTE CONTROL VALVE, 5 CONTROL VALVES, WITH POWER BEYOND (35) - HYDRAULIC SYSTEMS

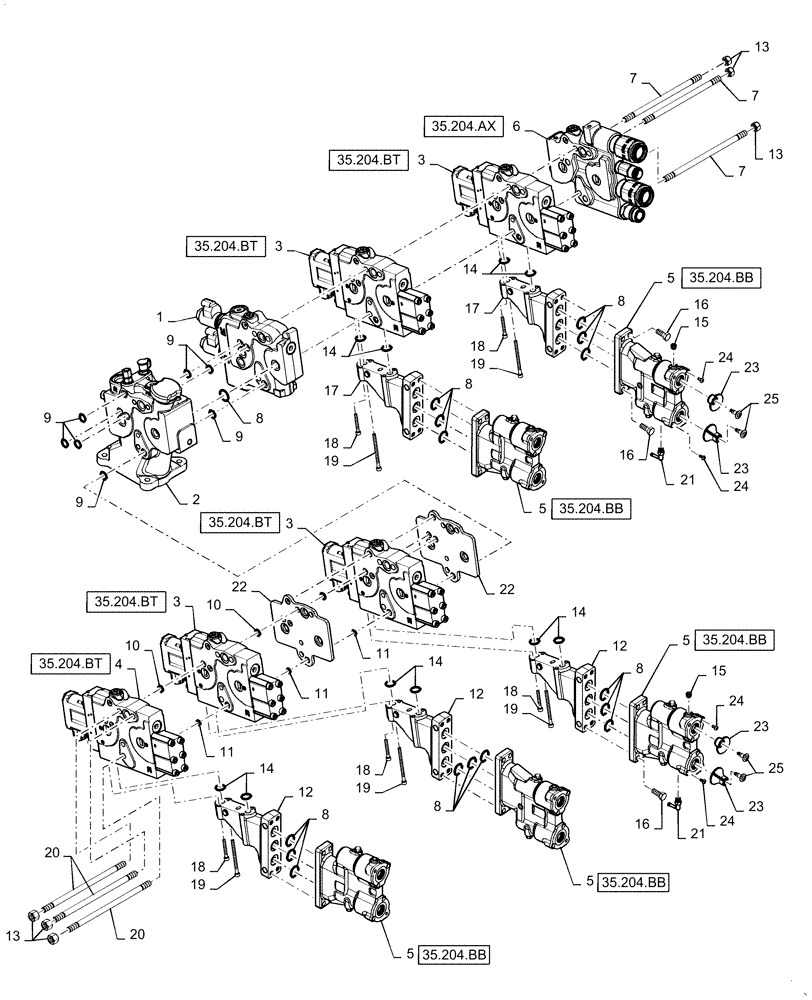

Схема запчастей Case IH MAGNUM 180 - (35.204.BE[05]) - REMOTE CONTROL VALVE, 5 CONTROL VALVES, WITH POWER BEYOND (35) - HYDRAULIC SYSTEMS
18
6
19
9
9
8
8
24
35.204.bt
2
5
5
14
19
14
23
22
10
8
8
12
13
22
20
25
25
15
18
17
16
3
21
23
7
15
14
8
9
7
5
11
35.204.bt
13
20
10
13
35.204.bt
24
18
35.204.bb
11
35.204.bt
12
3
18
23
24
11
35.204.bt
24
35.204.bb
19
16
5
3
8
35.204.ax
23
5
19
14
12
9
7
16
1
35.204.bb
17
19
18
35.204.bb
14
35.204.bb
4
21
3

Артикул

Название

Примечание

Количество

1

47434184

VALVE

Hitch, Assy, Serial Range: -ZFRH05054

1шт.

1

47887018

VALVE SECTION

Hitch, Assy, Start Serial: ZFRH05054

1шт.

2

47772178

MANIFOLD VALVE

In/Out, Assy, Std

1шт.

2

47772179

MANIFOLD VALVE

In/Out, Assy, Twin Flow

1шт.

3

47434178

VALVE

Aux Main, Assy, Serial Range: -ZGRH01094

4шт.

3

47699489

VALVE SECTION

Aux Main, Assy, Start Serial: ZGRH01094

4шт.

4

47434180

VALVE

LH Aux, Assy, Serial Range: -ZGRH01094

1шт.

4

47699496

VALVE SECTION

LH Aux, Assy, Start Serial: ZGRH01094

1шт.

5

435375A1

VALVE

Assy

5шт.

6

84539951

VALVE

Power Beyond, Assy

1шт.

7

87604617

STUD,M12 x 1.75 x 235mm L

RH, M12 x 235

3шт.

8

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

37шт.

9

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

8шт.

10

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

28шт.

11

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

12шт.

12

84364079

VALVE

Mach Coupler Deluxe, LH

3шт.

13

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

14

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

15шт.

15

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

5шт.

16

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

20шт.

17

84534749

VALVE

Mach Coupler Deluxe, RH

2шт.

18

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

10шт.

19

84375319

SCREW

Screw, Soc HD M6 x 85 12.9 Blo

10шт.

20

87687049

STUD

LH, M12 x 195

3шт.

21

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 Deg 1/8 Npt Barbed

5шт.

22

84539946

PLATE

2шт.

23

240974A2

DOOR COVER

Dust

10шт.

24

427104A1

CAPSCREW,BTN HD, M5 x 0.8 x 10mm

M5 x 8 Button Head

20шт.

25

240973A2

CAPTIVE WASHER SCREW,Hex Flng, M16 x 1 x 25mm

M6 x 25 (w/sleeve)

10шт.

Выбрано товаров: 29
