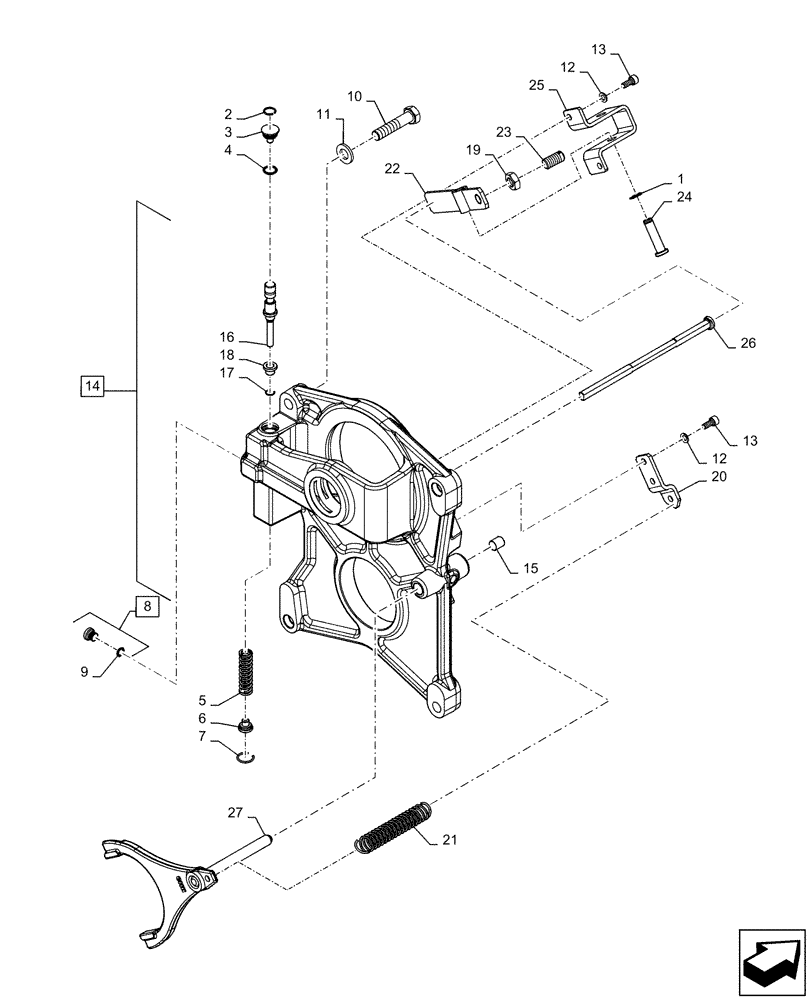

Запчасти Case IH MAGNUM 180 (31.114.AH[02]) - PTO GEAR HOUSING, CARRIER (31) - IMPLEMENT POWER TAKE OFF

1

11065976

CIRCLIP,M10, Ext

1шт.

2

47127897

SNAP RING,M21.5, Ext

1шт.

3

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

4

5196030

PIN,20mm OD x 16.5mm L

1шт.

5

84281722

SPRING,Compression, 15mm OD x 80mm L

1шт.

6

47127951

CAP COVER

1шт.

7

13420576

SNAP RING,M16, Int

1шт.

8

10118540

PLUG,M10 x 1 x 11, Brass

Incl 9

2шт.

9

14437585

O-RING,8.00mm ID x 1.50mm

2шт.

10

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

11

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

12

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

13

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

4шт.

14

84295659

SUPPORT

Incl 15 - 18

1шт.

15

47127805

BUSHING,12mm ID x 14mm OD x 15mm L

1шт.

16

82990924

VALVE,11.986mm/11.990mm OD x 85.5mm L, Class A

Marked Class A

1шт.

16

82990921

VALVE,11.991mm/11.995mm OD x 85.5mm L, Class B

Marked Class B

1шт.

16

82990922

VALVE,11.996mm/12.000mm OD x 85.5mm L, Class C

Marked Class C

1шт.

16

82990923

VALVE,12.001mm/12.005mm OD x 85.5mm L, Class D

Marked Class D

1шт.

17

13397370

SNAP RING,M8, Int

1шт.

18

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

1шт.

19

16103614

THIN NUT,Thin, M12, 1.25 Pitch, Cl 04

1шт.

20

87345949

SUPPORT

1шт.

21

4983677

SPRING

1шт.

22

5171261

LEVER

1шт.

23

5171363

PIN

1шт.

24

5179749

PIN,9.6mm OD x 43.5mm L

1шт.

25

5179750

SUPPORT

1шт.

26

87602927

PIN,10mm OD x 209mm L

1шт.

27

87600402

YOKE

1шт.
