Запчасти Case IH MAGNUM 180 (27.120.AF[01]) - VAR- 728181, 728431 - FINAL DRIVE - MAGNUM 180, 200 (27) - REAR AXLE SYSTEM

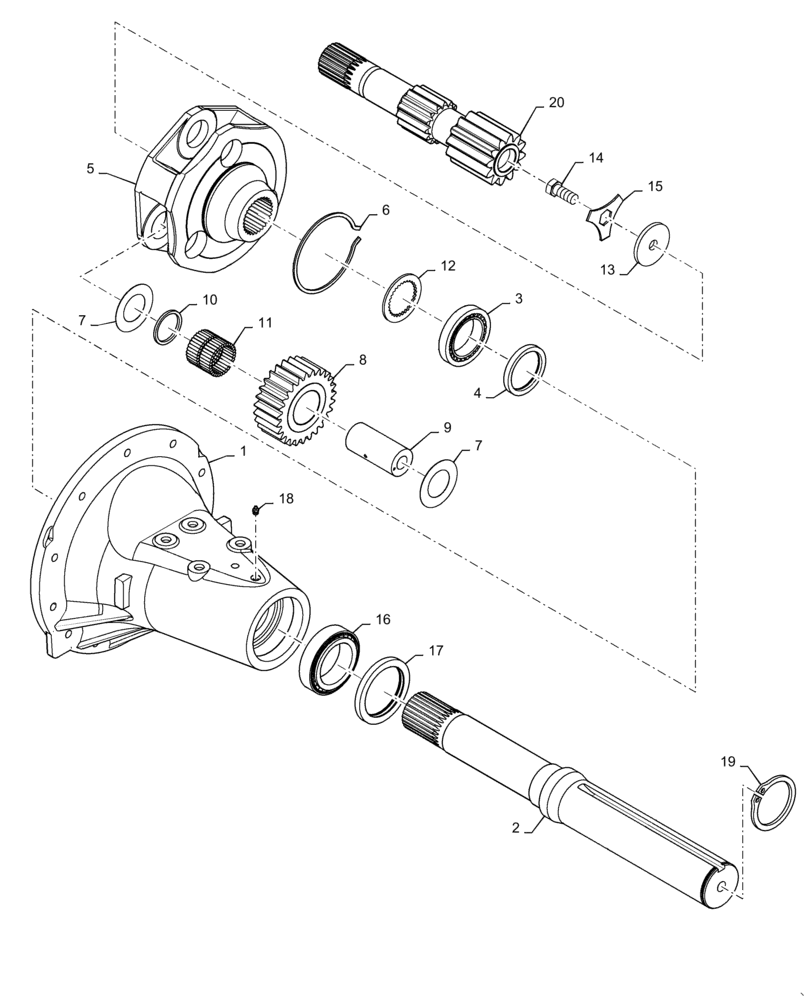

Схема запчастей Case IH MAGNUM 180 - (27.120.AF[01]) - VAR- 728181, 728431 - FINAL DRIVE - MAGNUM 180, 200 (27) - REAR AXLE SYSTEM
11
8
15
20
16
3
19
6
4
12
17
1
10
5
14
18
13
7
7
2
9

Артикул

Название

Примечание

Количество

1

84579307

AXLE HOUSING

Rear Std

1шт.

2

84203490

SHAFT

Axle, Driving Wheel 112 Std, 986mm Long

1шт.

2

84203491

SHAFT

Axle, Driving Wheel 119 Std, 1075mm Long, Not Illustrated, Serial Range: -ZERH10071

1шт.

2

47564940

SHAFT

Axle, Driving Wheel, 119 Std, 1075mm Long, Not Illustrated, Start Serial: ZERH10072

1шт.

3

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

1шт.

4

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

Oil, Inner Wheel Shaft, 88 x 110 x 12

1шт.

5

5165494

SUPPORT

Planetary Carrier, Use With 112" (986mm) Axle

1шт.

5

5165494

SUPPORT

Planetary Carrier, Use With 119" (1075mm) Axle, Serial Range: -ZERH10071

1шт.

5

47523152

SUPPORT

Planetary Carrier, Use With 119" (1075mm) Axle, Start Serial: ZERH10072

1шт.

6

5136132

CIRCLIP,4mm Thk

Planet Pin Retaining

1шт.

7

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

Spacer, Planet, Final Drive

6шт.

8

87558449

IDLER PINION

Gear, Planet, Final Drive

3шт.

9

5136130

PIN,62.4mm OD x 134mm L

Reducer, Planet

3шт.

10

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

Needle Bearing, Planet Gear

3шт.

11

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

Planet Gear

3шт.

12

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

Driving Wheel Shaft

1шт.

13

84299173

SPECIAL WASHER

Disc, Wheel Axle

1шт.

14

47618253

BOLT,Hex, M22 x 1.5 x 55mm, Full Thd, Cl 10.9

1шт.

15

5124397

LOCKING PLATE

Wheel Axle

1шт.

16

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

1шт.

17

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

Oil, Outer Wheel Shaft, 114 x 146 x 16

1шт.

18

13407211

LUBE NIPPLE,M10 x 1

1шт.

19

800-51100

SNAP RING,M100, Ext, Hvy

Rear Wheel Hub

1шт.

20

84271050

GEAR SHAFT

Sun, Final Drive

1шт.

Выбрано товаров: 24
