Запчасти Case IH MAGNUM 180 (25.108.AE[04]) - VAR - 429327 - KNUCKLE ASSY, MOUNTING PARTS - CL 4 (25) - FRONT AXLE SYSTEM

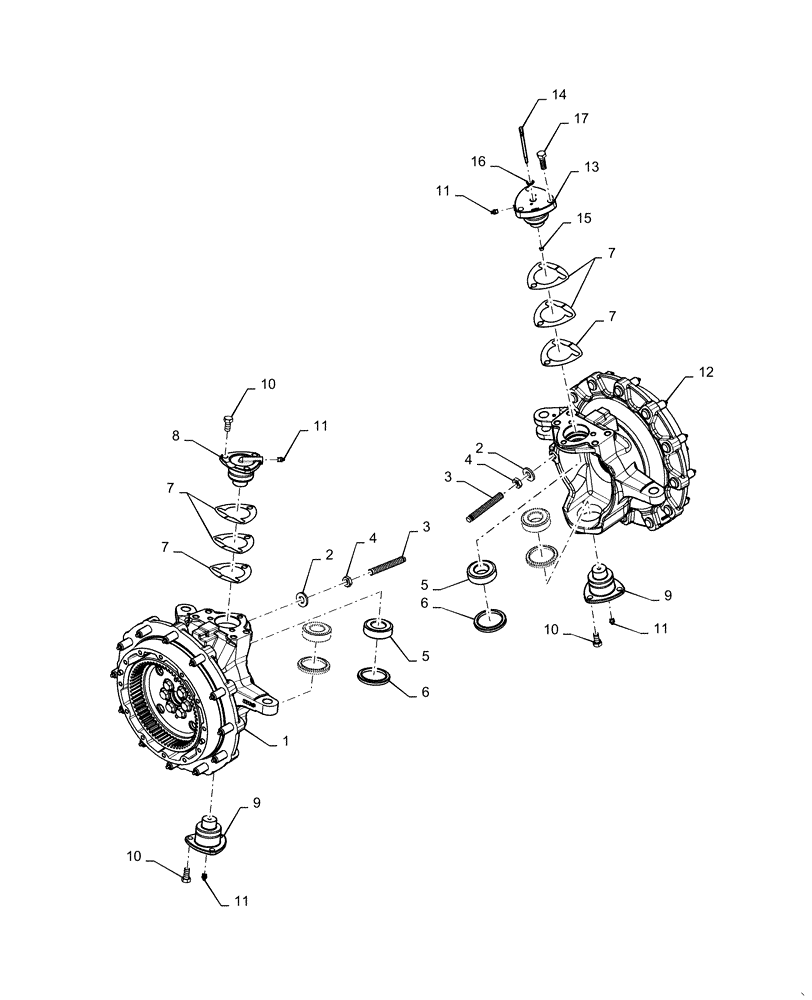

Схема запчастей Case IH MAGNUM 180 - (25.108.AE[04]) - VAR - 429327 - KNUCKLE ASSY, MOUNTING PARTS - CL 4 (25) - FRONT AXLE SYSTEM
14
9
2
7
1
3
11
11
5
10
4
15
4
9
6
10
16
7
2
6
7
3
11
10
7
5
8
12
17
11
13

Артикул

Название

Примечание

Количество

1

84244881

STEERING KNUCKLE

RH

1шт.

2

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

2шт.

3

84303563

STOP

Screw Adjustment

2шт.

4

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

5

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

4шт.

6

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

4шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

6шт.

8

84243391

AXLE PIN

Upper, King

1шт.

9

84243393

AXLE PIN

Fused Hinge

2шт.

10

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.

11

13407211

LUBE NIPPLE,M10 x 1

4шт.

12

84244879

STEERING KNUCKLE

LH

1шт.

13

84242399

PIN

Steering Sensor

1шт.

14

84242403

STEERING SHAFT

Steering Sensor

1шт.

15

832-10406

NUT,M6 x 1, Cl 8

1шт.

16

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1шт.

17

14254734

LOCK BOLT,Hex, M14 x 1.5 x 45mm, Cl 10.9

3шт.

Выбрано товаров: 17
