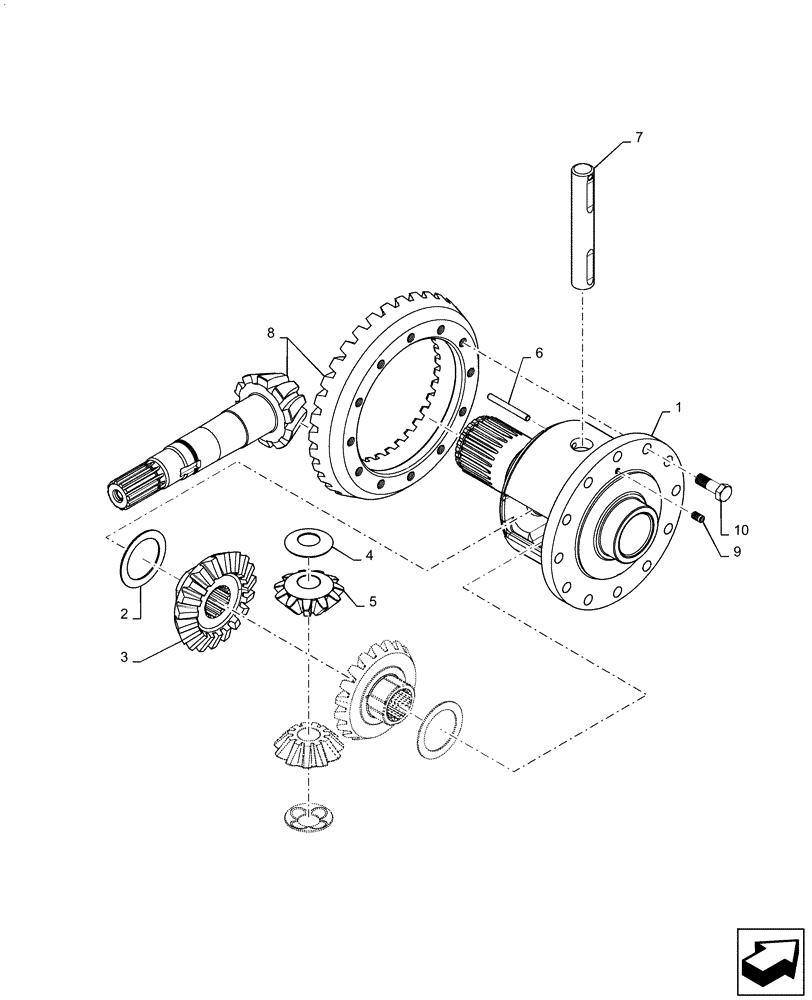

Запчасти Case IH MAGNUM 180 (25.102.AD[02]) - VAR - 429327 - DIFFERENTIAL ASSY - CL 4 (25) - FRONT AXLE SYSTEM

1

87342770

HOUSING

Differential, CL 4

1шт.

2

4997236

THRUST WASHER,51mm ID x 70mm OD x 1.6mm Thk

2шт.

3

5149551

PLANETARY GEAR,19T

2шт.

4

4991695

IDLER PINION

2шт.

5

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

Pinion

2шт.

6

5173242

ROLL PIN,6.5mm OD x 61mm L

Straight

1шт.

7

4991652

PIN,23mm OD x 157mm L

Pinion

1шт.

8

84365311

BEVEL GEAR

Assy; Includes Ring Gear and Bevel Pinion

1шт.

9

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

10

84170038

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.
